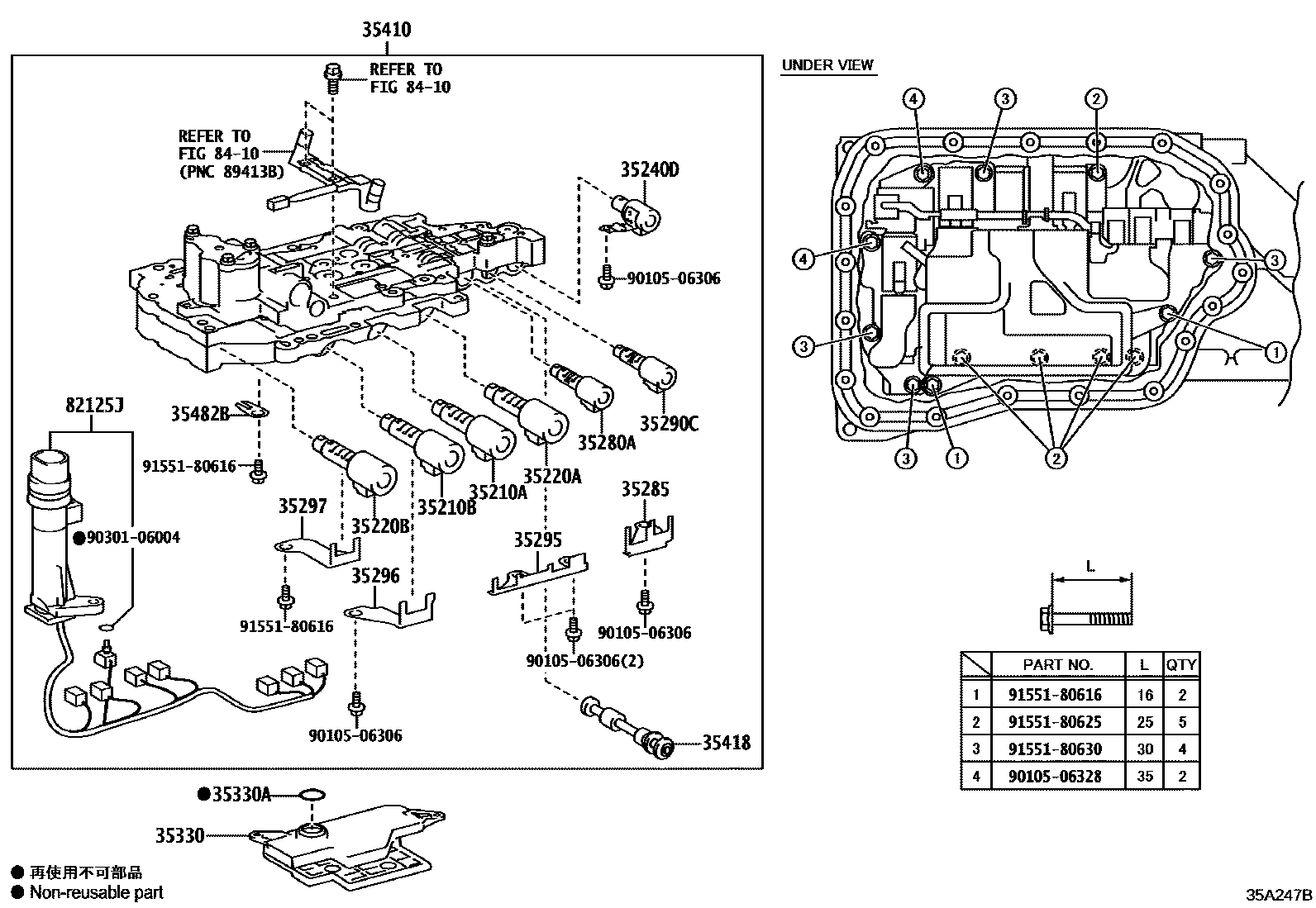

VALVE BODY & OIL STRAINER (ATM)
35210BVALVE, SOLENOID(SL3)
AISIN AW:REFER 35-01
35220AVALVE, SOLENOID(SL2)
35220BVALVE, SOLENOID(SL4)
35240DVALVE, SOLENOID(SL)
AISIN AW:REFER 35-01
35285PLATE, SOLENOID LOCK
TOYOTA:REFER 35-01
35290CVALVE, SOLENOID(SLT)
TOYOTA:REFER 35-01
35295PLATE, SOLENOID LOCK, NO.2
35296PLATE, SOLENOID LOCK, NO.3
35297PLATE, SOLENOID LOCK, NO.4
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35482BCLAMP, TEMPERATURE SENSOR
TOYOTA:REFER 35-01
82125JWIRE, TRANSMISSION
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010506306
main90105-06306
9010506328
main90105-06328
9030106004
main90301-06004
9155180616
main91551-80616
9155180625
main91551-80625
9155180630
main91551-80630
24 parts on this diagram · 4 diagrams in section
