23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24170supersedes 23826-24180i202108

main23826-24180supersedes 23826-24170i202108

main23826-25011supersedes 23826-25020i202108-202402

main23826-25020supersedes 23826-25011i201806-202108

main23826-25030i201807-202110

main23826-25190i201807-202108

main23826-31350i201806-202108

main23826-36110i201806-202108

main23826-24250i202108-202208

TAIWAN SPEC

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11004i201806-202108

main90466-13005supersedes 96133-41501i202108

main96133-41501supersedes 90466-13005i202108-202402

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-31410i202108

main23827-36050i201806-202007

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005i201806-202007

main96133-41101i201806-202108

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11004i201806-202108

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96137-41301i201806-202007

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-36170i201806-202108

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V150i201806-202108

main25860-24020supersedes 25860-24080i202108

main25860-25010supersedes 25860-25040i202108-202402

main25860-25020i202108

ARGENTINA SPEC; BRAZIL SPEC; CHILE SPEC; MOROCCO SPEC; PERU SPEC; VIETNAM SPEC

main25860-25040supersedes 25860-25010i202402

main25860-25070i202108

main25860-31120i201806-202108

NO.2

main25860-31160i202108

NO.1

main25860-24080supersedes 25860-24020i201907-202008

BEIJING SPEC

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

1658125050CLAMP, HOSE(FOR WATER HOSE)

main16581-25050

90119C0098

main90119-C0098

9099992002

main90999-92002

9532607012

main95326-07012

9613251100

main96132-51100

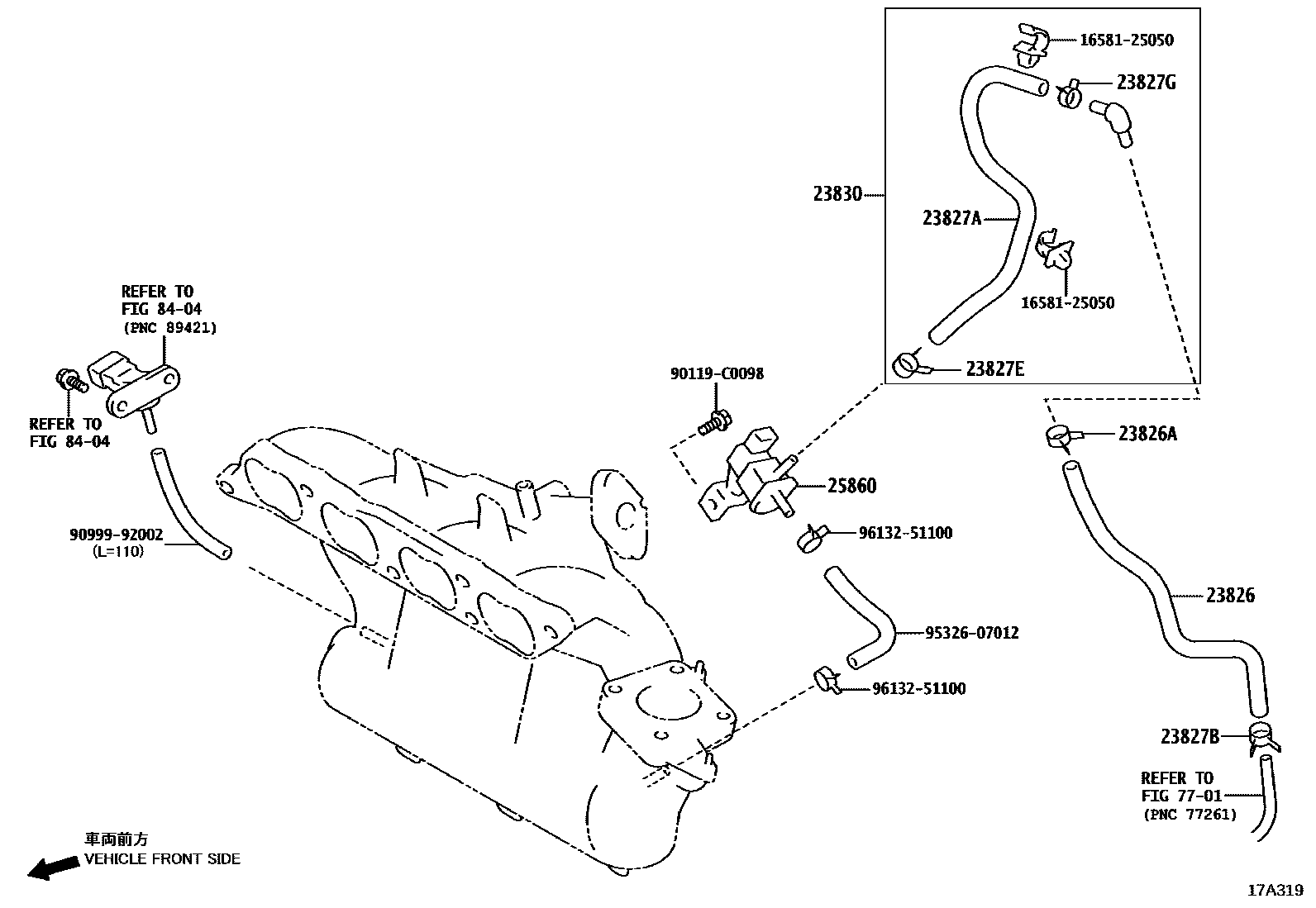

VACUUM PIPING
