ENGINE OVERHAUL GASKET KIT

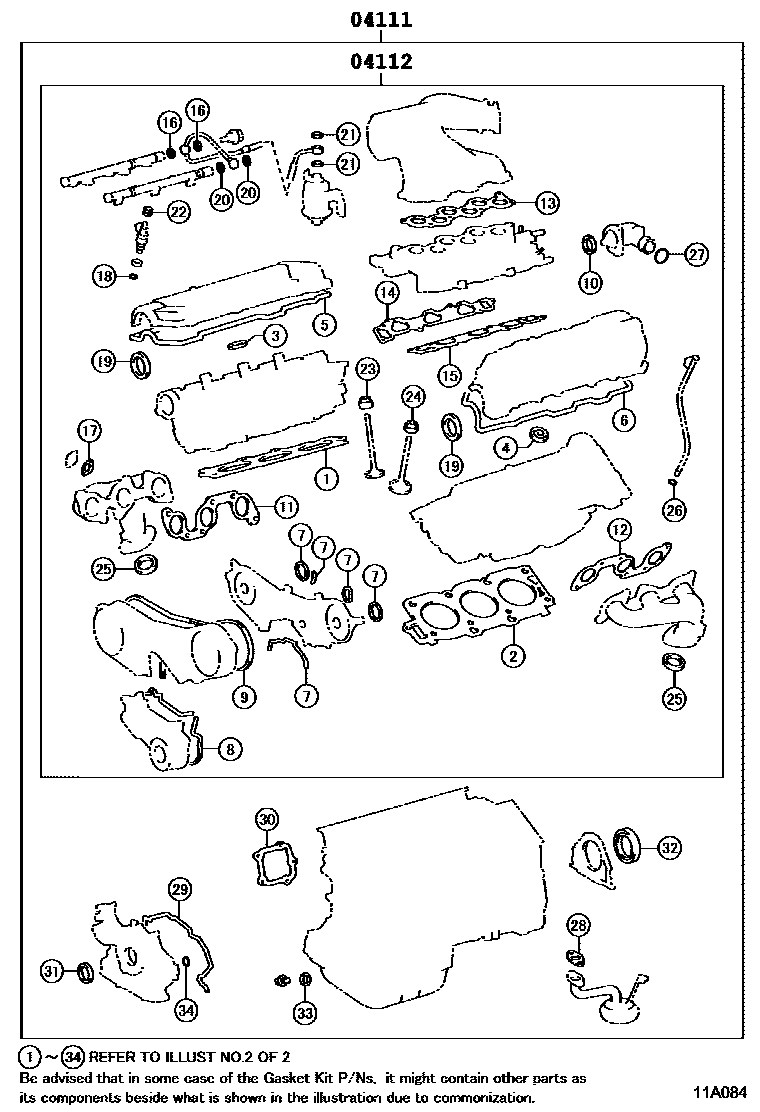

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20040i199708-199710

main04111-20041i199710-200001

main04111-20042i200001

main04111-62050i199208-199708

main04111-74300i199208-199508

main04111-74301i199508-199612

main04111-74302i199612-199708

main04111-74450i199208-199508

main04111-74590i199508-199601

main04111-74591i199601-199612

main04111-74592i199612

main04111-74620i199508-199608

main04111-74641i199708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20030i199708-199710

main04112-20031i199710-200001

main04112-20032i200001

main04112-62040i199208-199708

main04112-74290i199508-199612

main04112-74291i199612-199708

main04112-74450i199208-199601

main04112-74451i199601-199708

main04112-74562i199708

main04112-74580i199508-199608

main04112-74581i199708

2 parts on this diagram · 6 diagrams in section
