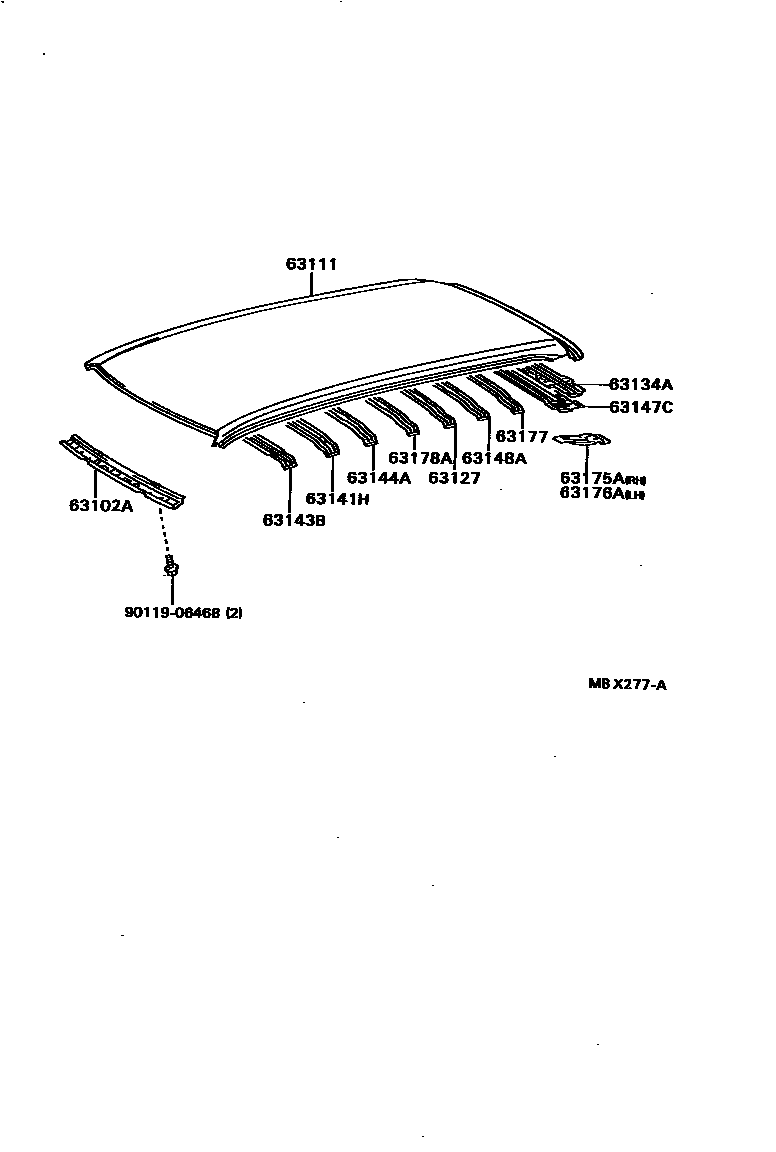

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20230iST191..JPP199211-199601

63111PANEL, ROOF

main63111-21020iST191..JPP199211-199601

main63111-21040iST191..JPP199211-199601

W(ROOF RAIL)

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-21010iST191..JPP199211-199601

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-21010iST191..JPP199211-199601

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20150iST191..JPP199211-199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-20100iST191..JPP199211-199601

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-21010iST191..JPP199211-199601

63147CREINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER

main63147-21010iST191..JPP199211-199601

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-21010iST191..JPP199211-199601

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-21010iST191..JPP199211-199601

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-21010iST191..JPP199211-199601

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-21010iST191..JPP199211-199601

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-21010iST191..JPP199211-199601

9011906468

main90119-06468

14 parts on this diagram · 2 diagrams in section
