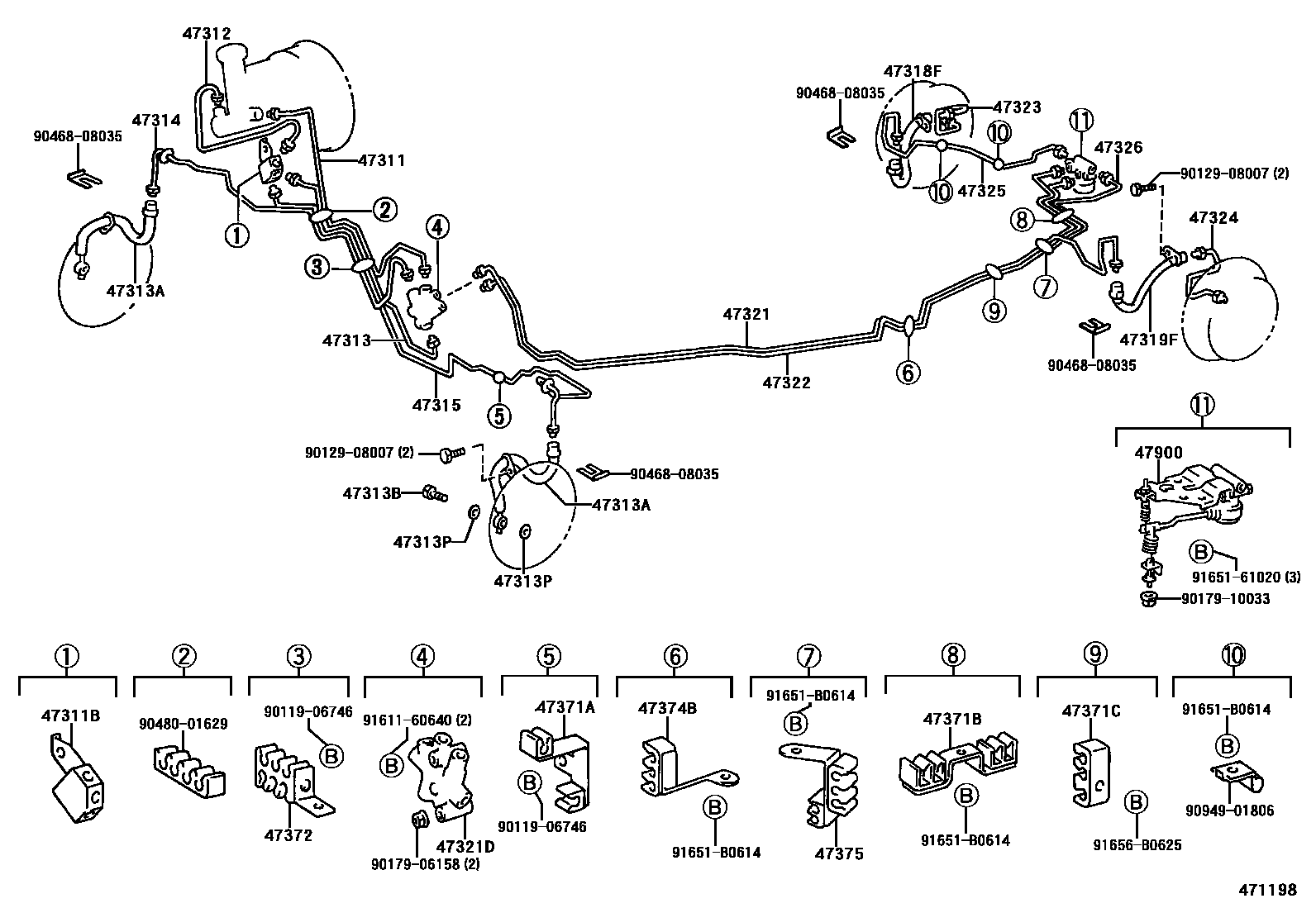

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
47318TUBE, FRONT BRAKE, NO.8
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
W(ABS)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47900VALVE ASSY, LOAD SENSING W/SPRING
9011906746
main90119-06746
9012908007
main90129-08007
9017906158
main90179-06158
9017910033
main90179-10033
9046808035
main90468-08035
9048001629
main90480-01629
9094901806
main90949-01806
9161160640
main91611-60640
9165161020
main91651-61020
91651B0614
main91651-B0614
91656B0625
main91656-B0625
37 parts on this diagram · 3 diagrams in section
