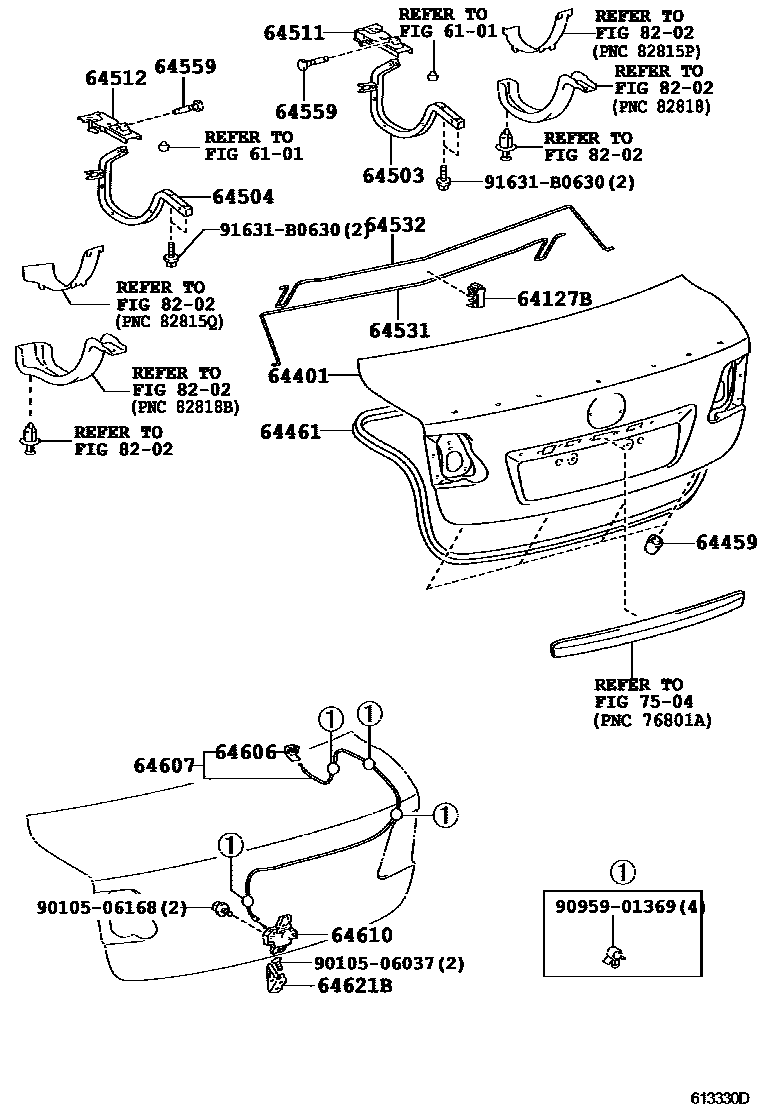

LUGGAGE COMPARTMENT DOOR & LOCK
6101SIDE MEMBER
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AUDIO-RADIO/CD&6SPEAKER LATIN AMERICA SPEC
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
7504REAR MOULDING
8202WIRING & CLAMP
9010506037
main90105-06037
9010506168
main90105-06168
9095901369
main90959-01369
91631B0630
main91631-B0630
22 parts on this diagram · 1 diagram in section
