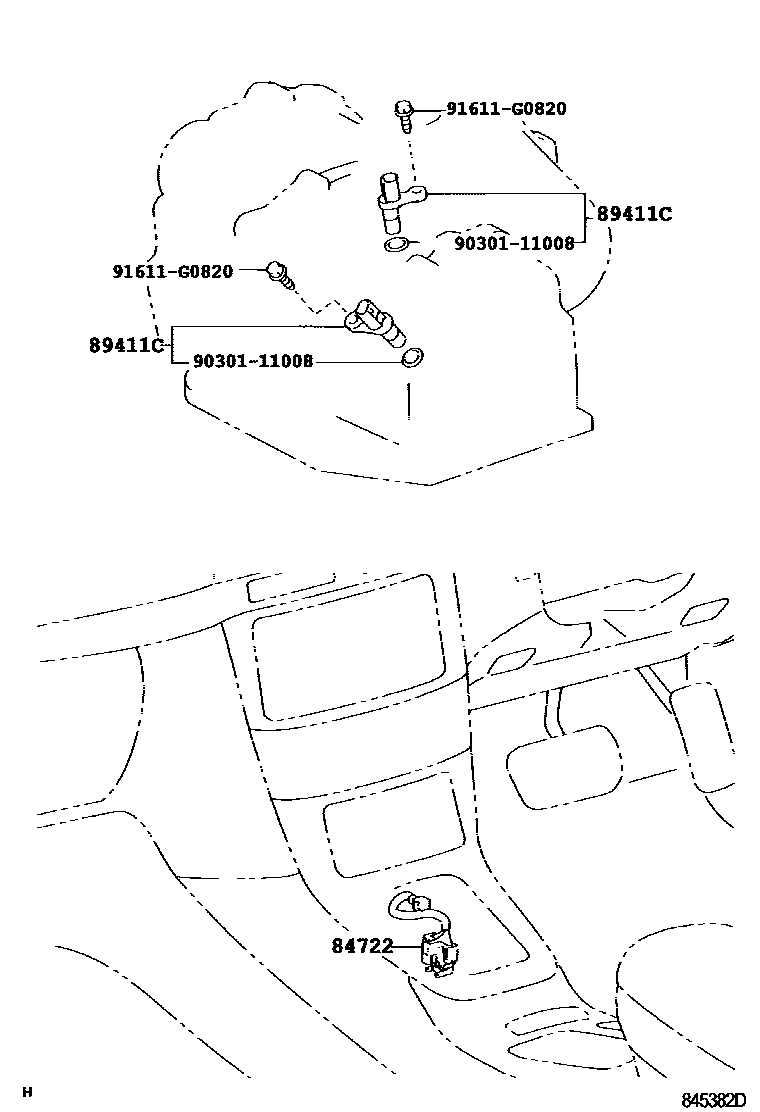

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iAZT250..RHD200604

main84722-20240iAZT250..LHD..4FC200604

89411CSENSOR, SPEED

main89411-33010×2iAZT250..4FC200301-200309

TOYOTA

main89413-24010×2iAZT250..4FC200301-200604

AISIN

9030111008

main90301-11008

91611G0820

main91611-G0820

4 parts on this diagram · 2 diagrams in section
