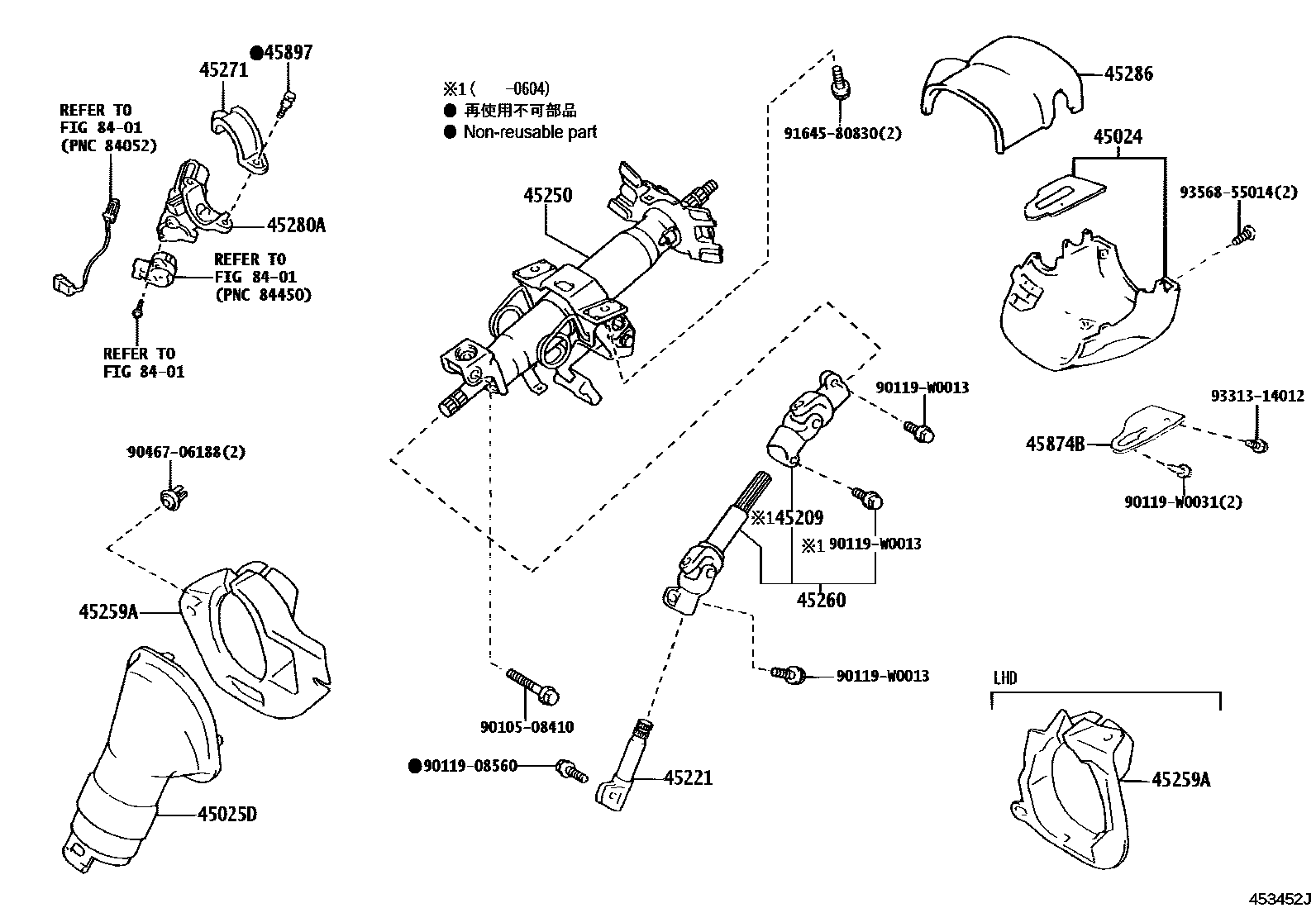

STEERING COLUMN & SHAFT

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-05020-B0iAZT250200301-200604

DK.GRAY,TRIM0#,1#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-05060iAZT250..RHD200604

main45025-05070iAZT250..LHD200301-200604

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-05010iAZT250..RHD200301-200604

main45209-05020iAZT250..LHD200301-200404

main45209-05021iAZT250..LHD200404-200604

45221SHAFT, STEERING INTERMEDIATE

main45221-05010iAZT250200301-200404

main45221-05011iAZT250200404-200604

45250COLUMN ASSY, STEERING

main45250-05410iAZT250200301-200604

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02030iAZT250..RHD200301-200307

main45259-02040iAZT250..LHD200301-200604

main45259-05010iAZT250..RHD200604

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-05040iAZT250..RHD200301-200404

main45260-05041iAZT250..RHD200404-200604

main45260-05050iAZT250..LHD200301-200404

main45260-05051iAZT250..LHD200404-200604

main45260-05110iAZT250..RHD200604

main45260-05120iAZT250..LHD200604

45271CLAMP, STEERING COLUMN, UPPER

main45271-05030iAZT250200301-200604

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-05070iAZT250..5F200301-200604

main45280-05080iAZT250..4FC200301-200604

45286COVER, STEERING COLUMN

main45286-05100-B0iAZT250200301-200604

DK.GRAY,TRIM0#,1#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-05030iAZT250200301-200604

45897BOLT, STEERING LOCK SET

main45897-12020×2iAZT250200301-200604

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

90119W0013

main90119-W0013

90119W0031

main90119-W0031

9046706188

main90467-06188

9164580830

main91645-80830

9331314012

main93313-14012

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section
