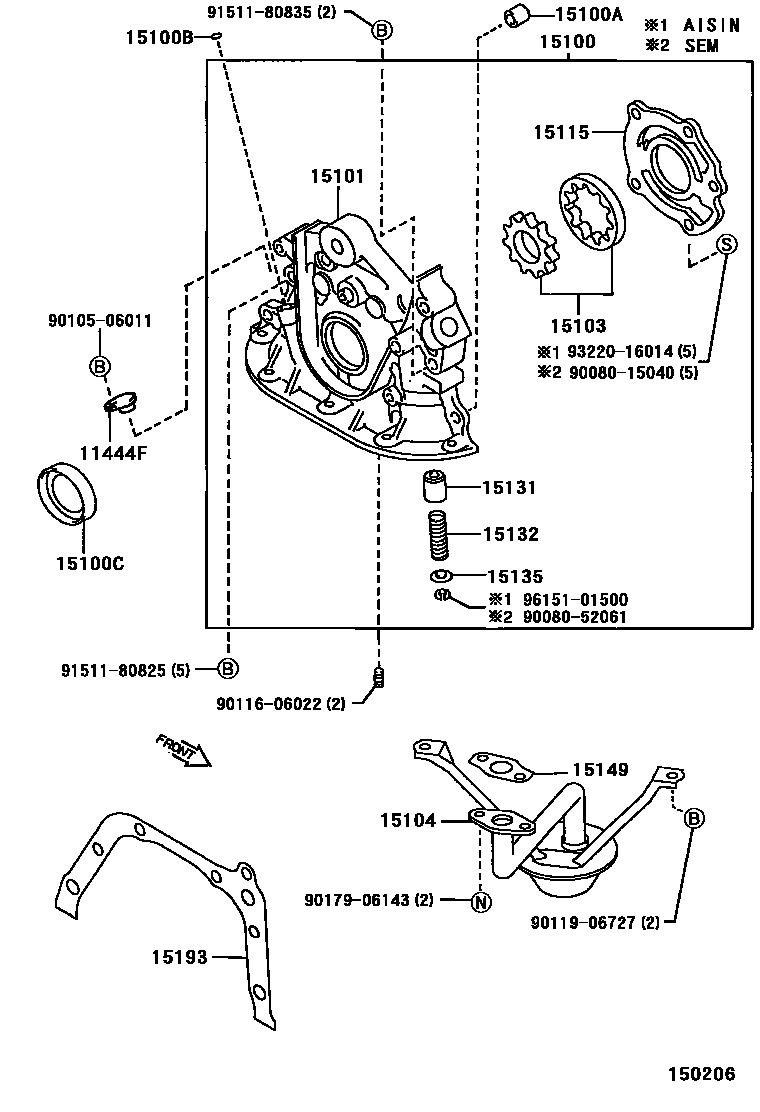

ENGINE OIL PUMP
11444FPLUG, HOLE(FOR OIL PUMP)
15100PUMP ASSY, OIL
SEM
AISIN
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15101BODY SUB-ASSY, OIL PUMP
AISIN
SEM
15103GEAR SET, OIL PUMP
SEM
SEM
AISIN
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
SEM
AISIN
15131VALVE, OIL PUMP RELIEF
SEM
AISIN
15132SPRING, OIL PUMP RELIEF VALVE
SEM
AISIN
15135RETAINER, OIL PUMP RELIEF VALVE
SEM
AISIN
15149GASKET, OIL STRAINER FLANGE
15193GASKET, OIL PUMP
9008015040
main90080-15040
9008052061
main90080-52061
9010506011
main90105-06011
9011606022
main90116-06022
9011906727
main90119-06727
9017906143
main90179-06143
9151180825
main91511-80825
9151180835
main91511-80835
9322016014
main93220-16014
9615101500
main96151-01500
24 parts on this diagram · 3 diagrams in section
