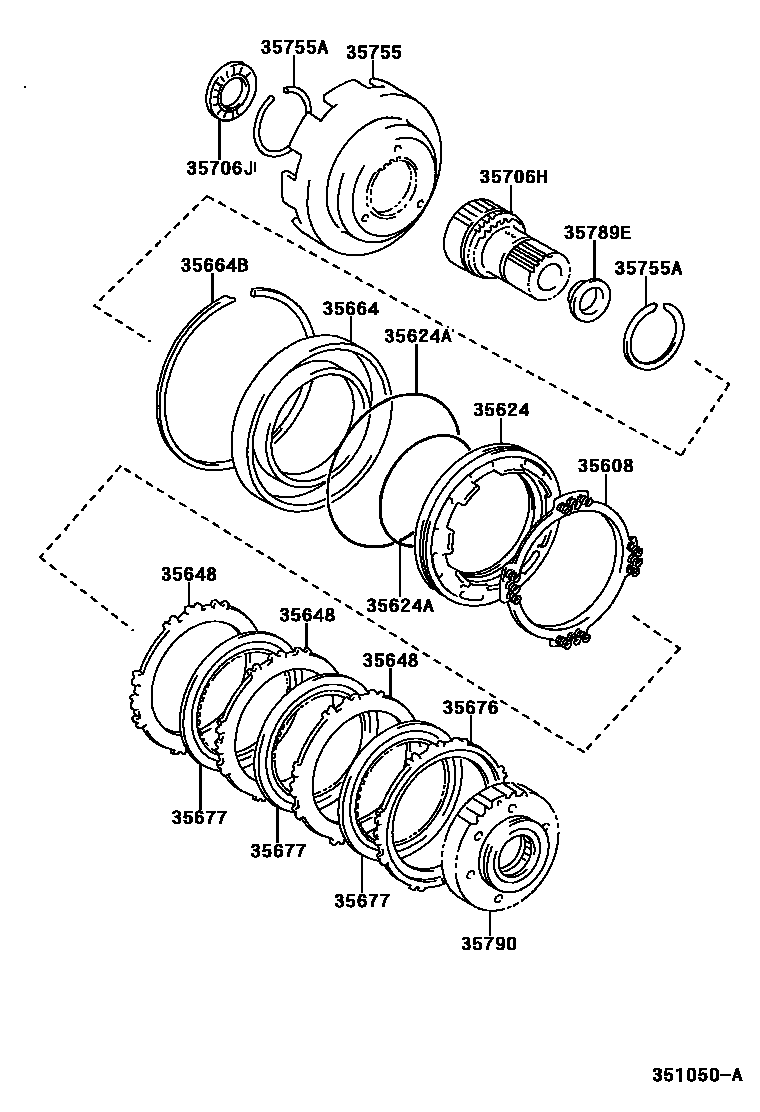

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A245E,A246E,A247E 0003 1A241E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAT210,ST210..ATM199601

35624PISTON, 2ND BRAKE

main35624-32010iAT210,ST210..ATM199601

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAT210,ST210..ATM199601-200008

INNER

main90301-99023iAT210,ST210..ATM199601-200008

OUTER

main90301-99100iAT210,ST210200008

INNER

main90301-99132iAT210,ST210200008

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010×3iAT210..ATM199601

T=1.8

main35648-21020×3iST210199712

main35648-32010×3iST210199601-199712

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAT210,ST210..ATM199601

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iAT210..ATM199601-199712

main90521-99013iST210199601-199712

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12010iAT210..ATM199601-199712

T=3.5

main35676-12030iAT210,ST210199904

T=3.5

main35676-32010iST210199601-199712

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070×3iAT210..ATM199601

main35677-20050×3iST210199601-199712

main35677-21020×3iST210199712

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAT210,ST210..ATM199601

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iAT210..ATM199601-199712

main90374-30006iST210199601-199712

35755DRUM, SUN GEAR INPUT

main35755-20020iAT210..ATM199601-199808

main35755-32020iST210199601-199808

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAT210,ST210..ATM199601

T=1.2,ID=44.0

main90520-46010iAT210..ATM199606-199712

T=2.3,ID=46.0

main90520-47003iAT210,ST210..ATM199601-199606

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAT210,ST210..ATM199601

35790CLUTCH ASSY, 1 WAY

main35790-32050iAT210,ST210..ATM199601-200110

main35790-44010iST210200110

14 parts on this diagram · 2 diagrams in section
