FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-20010199203-199607

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20913199203-199607

main57101-20915199203-199606

main57101-20929199607-199711

main57101-20931199606

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20910199203-199607

main57102-20912199203-199606

main57102-20926199607-199711

main57102-20928199606

57111MEMBER, FRONT SIDE, RH

main57111-20220199203-199512

main57111-20260199512-199601

main57111-20270199601-199607

57112MEMBER, FRONT SIDE, LH

main57112-20240199203-199512

main57112-20270199512-199601

main57112-20280199601-199701

main57112-20281199701

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20150199203-199501

main57113-20151199501-199607

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20120199203-199501

main57114-20121199501-199607

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20150199203-199411

main57115-20160199402-199607

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20170199203-199505

main57116-20181199505-199607

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-20080199512-199607

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57178-20070199512-199607

57197BOX, TORQUE, FRONT RH

main57197-20040199203-199607

57198BOX, TORQUE, FRONT LH

main57198-20050199203-199607

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20040199203-199509

main57271-20041199509-199607

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20040199203-199509

main57272-20041199509-199607

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20280199203-199607

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20310199203-199607

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20080199203-199607

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20070199203-199607

57439BDAMPER, FRONT FLOOR CROSSMEMBER DYNAMIC

main57439-20010199203-199606

57451MEMBER, FRONT FLOOR CROSS

main57408-20900199203-199607

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-32010199203-199607

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20370199203-199607

main57601-20400199203-199402

main57601-20500199606

main57601-21090199402-199606

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20350199203-199607

main57602-20370199203-199310

main57602-20380199203-199606

main57602-20530199606

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20100199203-199607

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20140199203-199310

main57606-20141199310-199402

main57606-20142199402-199607

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20909199203-199711

main57615-20917199601-199607

main57615-20918199711

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20908199203-199711

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-20020199203-199601

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-20020199203-199601

9017906060

main90179-06060

9033330002

main90333-30002

9033330004

main90333-30004

9095001148

main90950-01148

9095001259

main90950-01259

9095001310

main90950-01310

9095001356

main90950-01356

9095001392

main90950-01392

9095001511

main90950-01511

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001631

main90950-01631

9095001711

main90950-01711

9095001826

main90950-01826

9095001839

main90950-01839

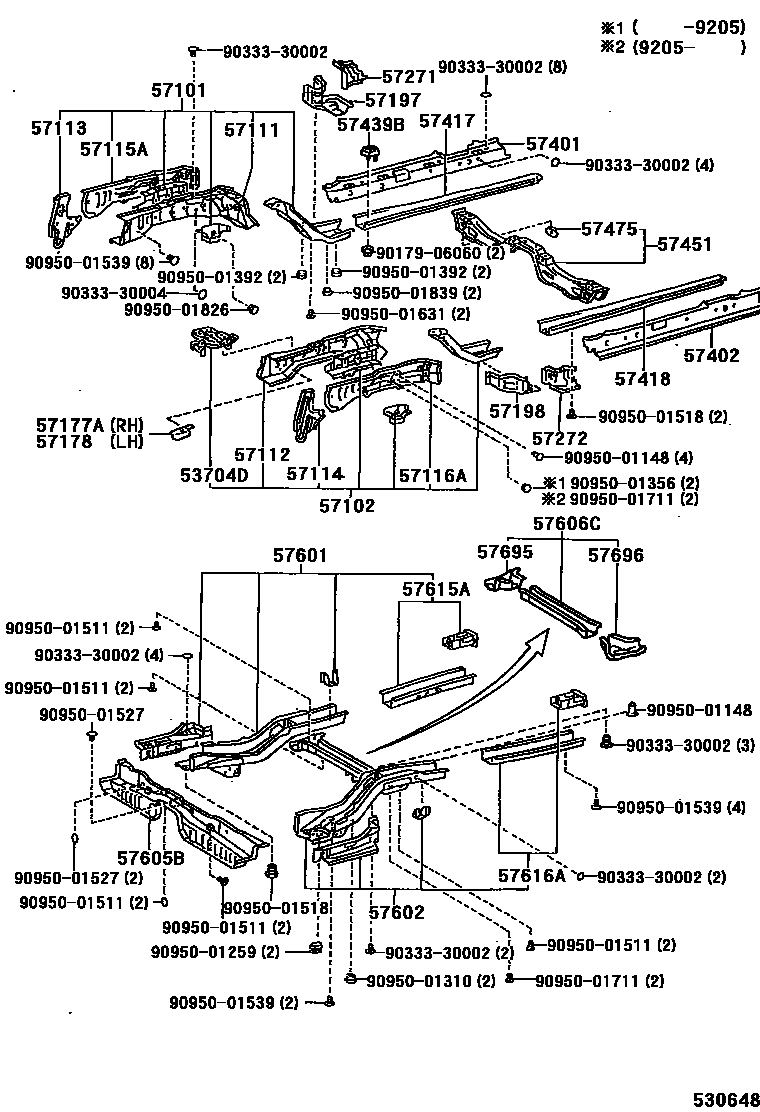

46 parts on this diagram · 1 diagram in section
