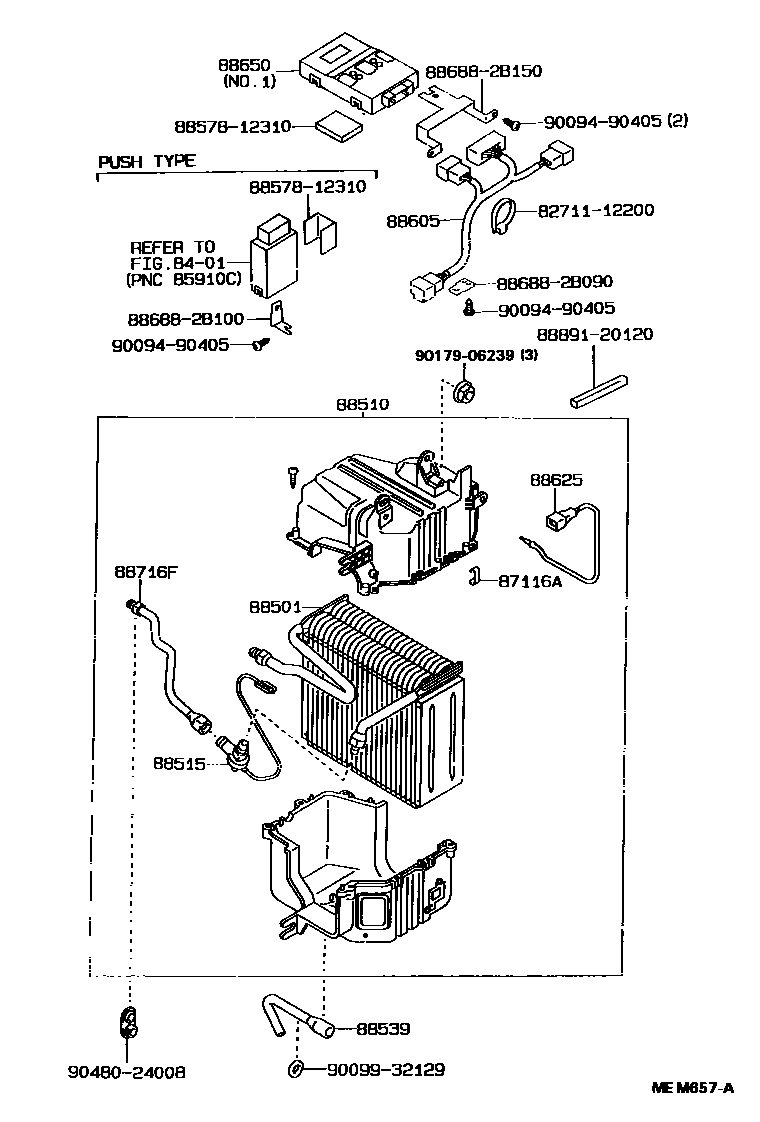

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iST171..LHD..GL;AT171..LHD..(3FC,5F)..XL..GEN198912-199208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20220iAT17#..RHD;ST171..RHD..(LB,SED)198712-198911

main88501-20230iAT17#,CT17#,ST171..LHD198712-199211

88510UNIT ASSY, COOLER

main88510-20590iAT17#..RHD198712-198911

W(HEATER)

main88510-20591iAT17#..RHD198911-199211

W(HEATER)

main88510-20600iAT17#..RHD198712-199211

MAKER OPTION

main88510-20610iST171..RHD..(LB,SED)198712-198911

W(HEATER)

main88510-20611iST171..RHD198911-199211

W(HEATER)

main88510-20620iST171..RHD..(LB,SED)198712-198911

MAKER OPTION

main88510-20650iAT171..RHD..GL198712-198911

W(PUSH TYPE HEATER CONTROL & HEATER)

main88510-20651iAT171..RHD..GL198911-199208

W(PUSH TYPE HEATER CONTROL & HEATER)

main88510-20660iST171..RHD..GL198712-198911

W(PUSH TYPE HEATER CONTROL & HEATER)

main88510-20661iST171..RHD..GL198911-199208

W(PUSH TYPE HEATER CONTROL & HEATER)

main88510-20670iAT17#..LHD198712-198911

W(HEATER)

main88510-20671iAT17#..LHD198911-199211

W(HEATER)

main88510-20680iAT17#..LHD198712-199211

MAKER OPTION

main88510-20690iST171..LHD198712-198911

W(HEATER)

main88510-20691iST171..LHD198911-199208

W(HEATER)

main88510-20700iST171..LHD198712-199208

MAKER OPTION

main88510-20710iCT17#198712-199211

W(HEATER)

main88510-20720iCT17#198712-199211

MAKER OPTION

main88510-20780iAT17#..RHD;ST171..RHD..(LB,SED)..CBR198712-198911

DEALER OPTION

main88510-20781iAT171,ST171..RHD..GL..CBR; AT171,ST171..RHD..SED..XL; AT177,ST171..RHD..WG198911-199001

DEALER OPTION

main88510-20790iAT171..3FC..GEN;AT171,ST171..LHD..GL198911-198912

DEALER OPTION & W(HEATER)

main88510-2B160iAT171..RHD..GL198911-199208

W(PUSH TYPE HEATER CONTROL)

main88510-2B170iST171..RHD..GL198911-199208

W(PUSH TYPE HEATER CONTROL)

88515VALVE, COOLER EXPANSION

main88515-16040iAT17#,CT17#;ST171..LB,SED198712-198911

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20160iAT171,ST171..RHD..GL..CBR; AT171,ST171..RHD..SED..XL198911-199001

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20860iAT17#..RHD..XL; AT171..RHD..GL; ST171..EFI; ST171..RHD..GL..CBR; ST171..RHD..SED..XL198712-198911

W(HEATER)

main88605-20870iAT177,ST171..RHD..WG198911-199211

main88605-20890iAT17#,ST171..LHD198712-199211

main88605-2B020iCT17#198712-199211

main88605-2B030iAT17#,ST171..LHD198712-198911

W(HEATER)

main88605-2B050iCT17#198712-199211

W(HEATER)

main88605-2B340iST171..LHD..GL198911-199208

DEALER OPTION,W(HEATER)

main88605-2B860iST171..EFI198911-199208

W(PUSH TYPE HEATER CONTROL)

main88605-2B880iAT171,ST171..RHD..GL..CBR; AT171,ST171..RHD..SED..XL; AT177,ST171..RHD..WG198911-199001

W(HEATER)

main88605-2B890iAT17#,ST171..LHD198911-199211

MAKER OPTION,W(HEATER)

88625THERMISTOR, COOLER, NO.1

main88625-24050iST171..LHD..GL;AT171..LHD..(3FC,5F)..XL..GEN198912-199208

MAKER OPTION

main88625-32040iAT171..LHD..GL;AT171..3FC..GEN; ST171..LHD..GL198911-198912

DEALER OPTION; DEALER OPTION,NO.1

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20390iAT171..RHD;AT177..RHD..3FC; AT177..RHD..5F198812-198911

W(HEATER) OR W(BOOST VENTILATOR)

main88650-20400iAT171..RHD;AT177..RHD..3FC; AT177..RHD..5F198812-198911

main88650-20410iST171..WG;ST171..LHD;ST171..EFI198712-198812

W(HEATER)

main88650-20420iST171..EFI; ST171..WG;ST171..LHD198812-198911

main88650-20430iCT17#198712-199211

W(HEATER)

main88650-20440iCT17#198712-199211

main88650-20750iST171..EFI; ST171..LHD..(EXS,GT,GX,XL); ST171..LHD..GL198911-199111

W(HEATER),NO.1

main88650-20760iAT171..LHD..(3FC,5F)..XL..GEN; AT171..RHD; AT177..LHD;AT171..GCC;AT171..LHD..4F;AT171..LHD..GL; AT177..RHD198911-199001

W(HEATER),NO.1

main88650-20810iAT171..RHD; AT177..RHD198911-199001

main88650-20820iST171..RHD..(LB,SED)..CBR; ST171..WG198911-199001

main88650-2B240iST171..LHD..GL199111-199208

W(HEATER),DEALER OPTION

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B420iAT17#..RHD;ST171..RHD..(LB,SED)198712-198911

main88716-2B430iAT17#,CT17#,ST171..LHD198712-199211

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8857812310PAKING, COOLER AIR DUCT

main88578-12310

886882B090BRACKET, COOLER DIAPHRAGM

main88688-2B090

886882B100BRACKET, COOLER DIAPHRAGM

main88688-2B100

886882B150BRACKET, COOLER DIAPHRAGM

main88688-2B150

8889120120PACKING (FOR COOLER)

main88891-20120

9009490405

main90094-90405

9009932129

main90099-32129

9017906239

main90179-06239

9048024008

main90480-24008

20 parts on this diagram · 3 diagrams in section
