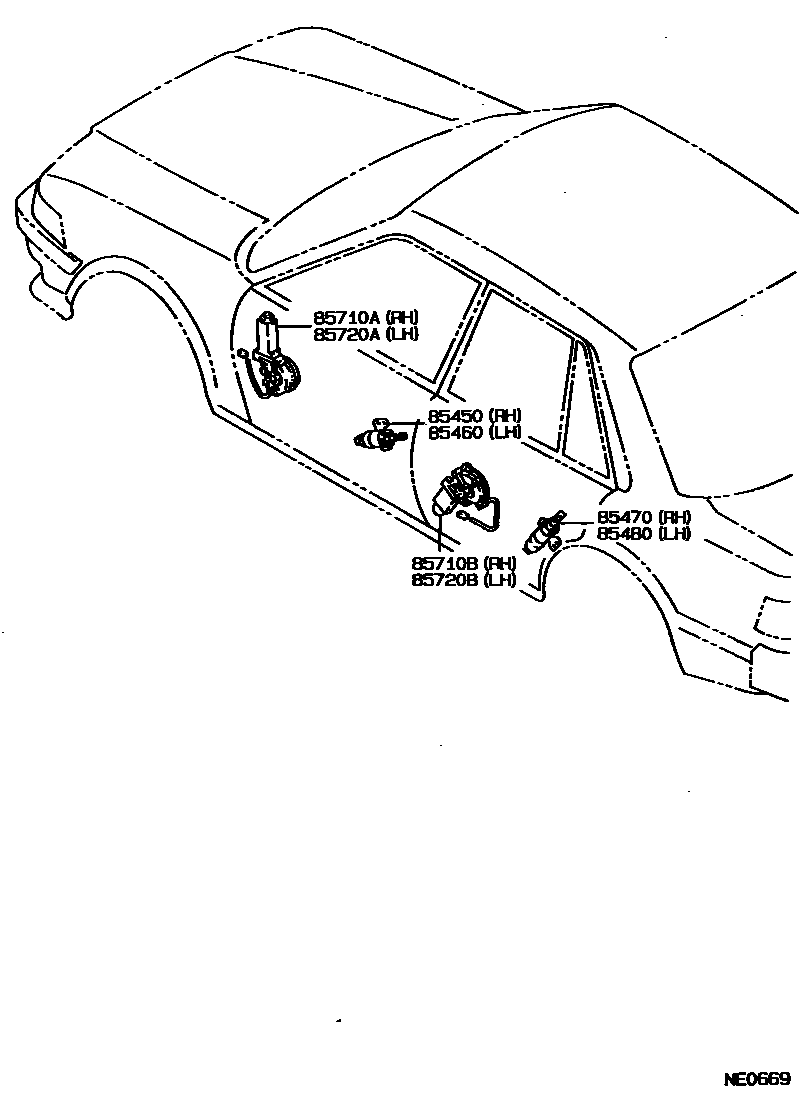

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-20060iAT17#,ST171..RHD198712-198911

main85450-20230iAT17#,CT17#,ST171..LHD198712-199203

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-20210iAT17#,ST171..RHD198712-198911

main85450-20240iAT17#,CT17#,ST171..LHD198712-199203

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-30530iAT17#,CT17#,ST171198712-198911

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-30540iAT17#,CT17#,ST171198712-198911

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-20080iAT171,CT170,ST171198712-199211

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85720-20120iAT171,CT170,ST171198712-198904

main85720-20121iAT171,CT170,ST171198904-199211

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-20080iAT171,CT170,ST171198712-199211

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-20100iAT171,CT170,ST171198712-198904

main85710-20101iAT171,CT170,ST171198904-199211

8 parts on this diagram · 1 diagram in section
