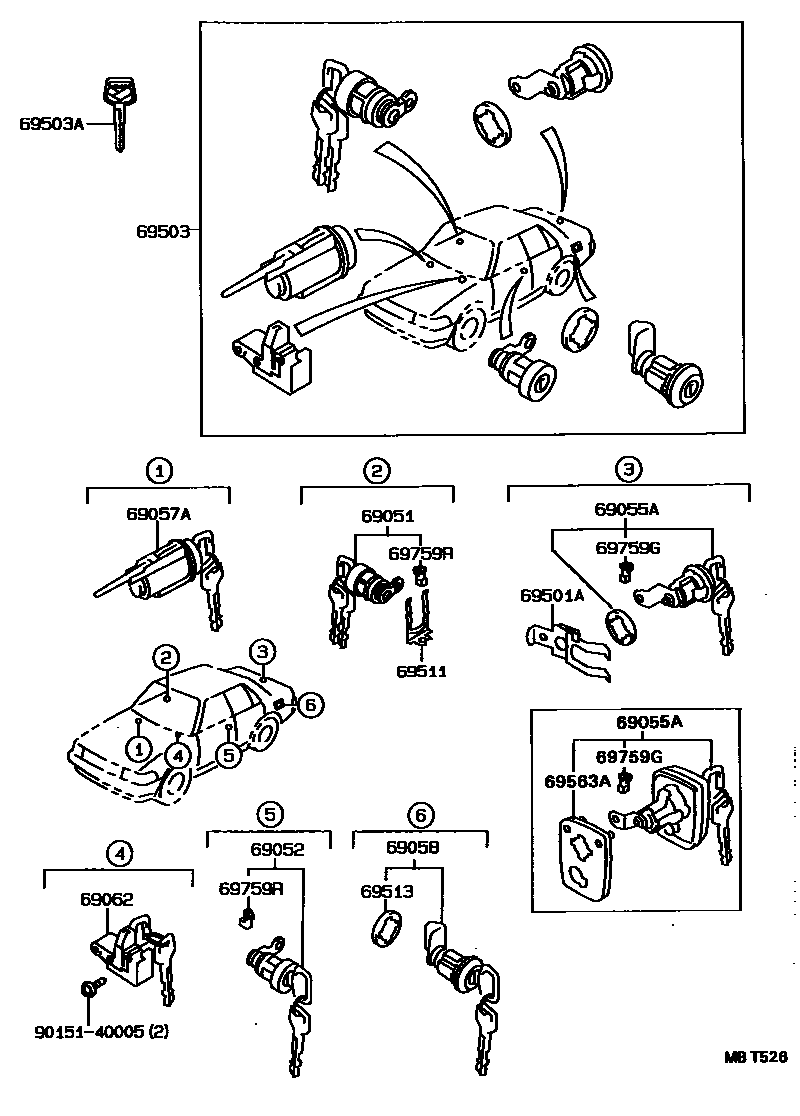

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
W(CANCEL)
main69055-20320iAT171..4FC..GL; AT171..RHD..5F..GL; ST171..RHD..SED..GL..CBR; ST171..SED..EFI198911-199208
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; SINGAPORE SPEC; SINGAPORE SPEC OR INDONESIA SPEC OR THAILAND SPEC; THAILAND SPEC
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69058CYLINDER & KEY SET, FUEL FILLER LID
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69501ARETAINER SUB-ASSY, BACK DOOR CYLINDER
69503CYLINDER SET, LOCK
W(CANCEL)
main69005-2B130iAT171..4FC..GL; AT171..RHD..5F..GL; ST171..RHD..SED..GL..CBR; ST171..SED..EFI198911-199208
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; SINGAPORE SPEC; SINGAPORE SPEC OR INDONESIA SPEC OR THAILAND SPEC; THAILAND SPEC
W(ELECTROMAGNETIC LOCK)
69503AKEY, BLANK
MASTER KEY
MASTER KEY,W(*68)
SUB KEY
MASTER KEY,W(*68)
MASTER KEY,W(ELECTROMAGNETIC LOCK)
SUB KEY
69511RETAINER, FRONT DOOR LOCK CYLINDER
69513PAD, FUEL FILLER LID LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
main69563-20030iAT171..4FC..GL; AT171..RHD..5F..GL; ST171..RHD..SED..GL..CBR; ST171..SED..EFI198911-199208
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; SINGAPORE SPEC; SINGAPORE SPEC OR INDONESIA SPEC OR THAILAND SPEC; THAILAND SPEC
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
9015140005
main90151-40005
15 parts on this diagram · 3 diagrams in section
