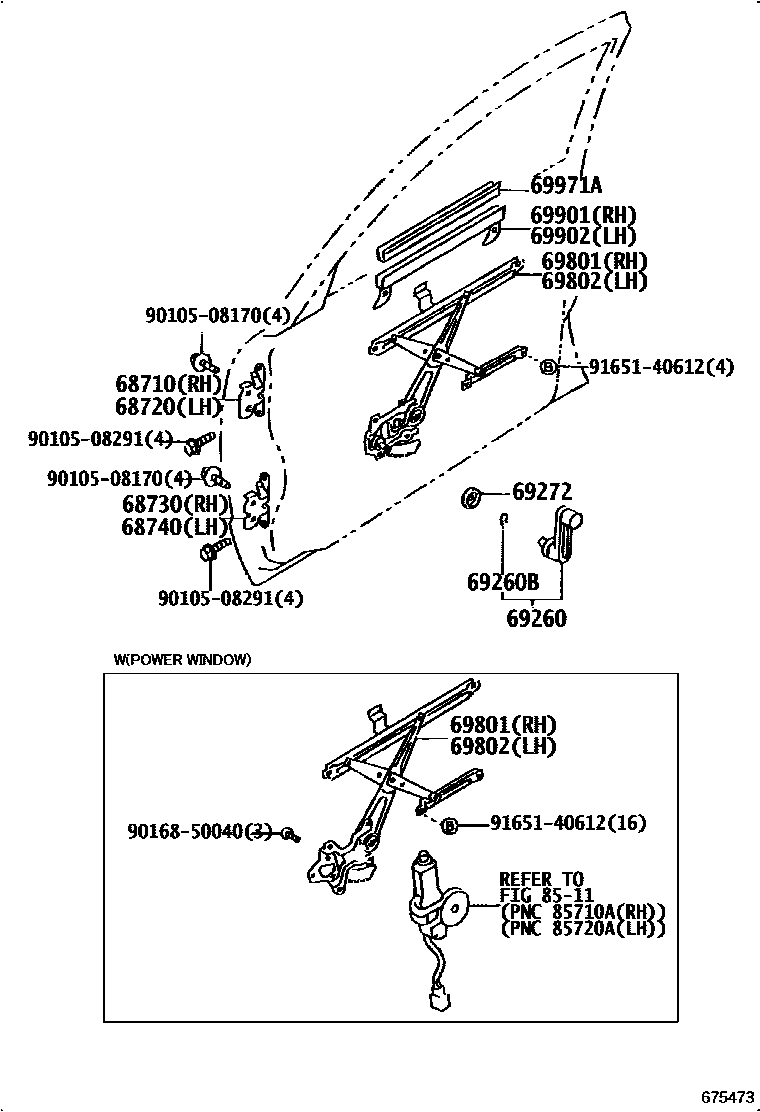

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iAT17#,CT17#,ST171198712-199211

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iAT17#,CT17#,ST171198712-199211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16010iAT17#,CT17#,ST171198712-199211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16010iAT17#,CT17#,ST171198712-199211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-30×2iAT17#,CT17#,ST171198911-199211

GRAY,TRIM1#

main69260-14020-33×2iAT17#,CT17#,ST171198712-198911

GRAY,TRIM1#

main69260-14020-40×2iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

main69260-14020-54×2iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

DARK BLUE,TRIM8#

main69260-14020-58×2iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAT17#,CT17#,ST171198911-199211

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN; AT177,CT177,ST171..WG; ST171..LB..GCC198712-199211

NATURAL WHITE,TRIM1#; NATURAL WHITE,TRIM1#,4#,8#; NATURAL WHITE,TRIM1#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20150iAT171,CT170,ST171198712-199211

W(POWER WINDOW)

main69810-20170iAT17#,CT17#,ST171198712-199211

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20150iAT171,CT170,ST171198712-199211

W(POWER WINDOW)

main69820-20170iAT17#,CT17#,ST171198712-199211

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20120iAT171,ST171..RHD..(LB,SED)..CBR; ST171..EFI198911-199208

W=10

main69901-20130iST171..EFI199008-199208

W=9.4

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-20050iST171..EFI; ST171..LHD..XL;AT171,ST171..RHD..(LB,SED)..CBR198712-198911

W=10

main69902-20060iAT17#,CT17#,ST171..CBR,DSL199008-199211

W=9.4

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-20010×2iAT17#,CT17#,ST171198712-199211

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508170

main90105-08170

9010508291

main90105-08291

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
