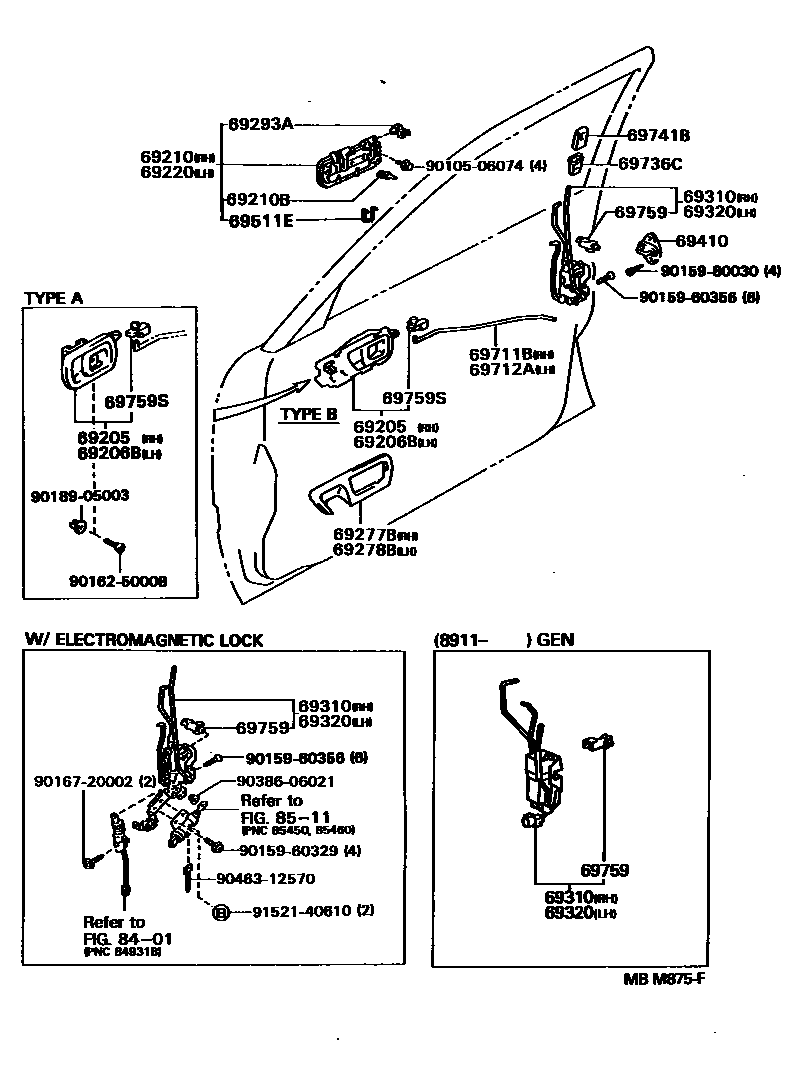

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20040-03iST171..SED..GCC198712-199211

GRAY,TRIM1#,TYPE A

main69205-20040-04iST171..SED..GCC198712-199005

BLUE,TRIM8#,TYPE A

main69205-20040-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#,TYPE A

main69205-20040-14iAT171,ST171..EXS,GL198911-199211

DARK BLUE,TRIM8#,TYPE A

main69205-20050-03iAT17#,CT17#,ST171..GX,XL199011-199211

GRAY,TRIM1#

main69205-20050-03iAT17#,CT17#,ST171198712-199211

GRAY,TRIM1#,TYPE B

main69205-20050-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

BLUE,TRIM8#,TYPE B

main69205-20050-06iAT171,CT170,ST171..SED..XL..GEN199011-199208

SABLE,TRIM4#

main69205-20050-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#,TYPE B

main69205-20050-14iAT171,CT170,ST171..SED..XL..GEN198911-199211

DARK BLUE,TRIM8#,TYPE B

main69205-20050-14iAT171,ST171..EXS,GL199011-199211

DARK BLUE,TRIM8#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20040-03iST171..EXS;ST171..LB..GCC;AT171,ST171..GL..GEN198712-199211

GRAY,TRIM1#,TYPE A

main69206-20040-04iAT17#,CT17#,ST171..XL198712-199005

BLUE,TRIM8#,TYPE A

main69206-20040-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#,TYPE A

main69206-20040-14iAT17#,CT17#,ST171..GX,XL198911-199211

DARK BLUE,TRIM8#,TYPE A

main69206-20050-03iAT171,ST171..EXS,GL,GT198712-199211

GRAY,TRIM1#,TYPE B

main69206-20050-03iAT171,ST171..EXS,GL,GT199011-199211

GRAY,TRIM1#

main69206-20050-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

BLUE,TRIM8#,TYPE B

main69206-20050-06iAT171,CT170,ST171..SED..XL..GEN199011-199208

SABLE,TRIM4#

main69206-20050-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#,TYPE B

main69206-20050-14iAT171,ST171..EXS,GL198911-199211

DARK BLUE,TRIM8#,TYPE B

main69206-20050-14iAT171,ST171..EXS,GL199011-199211

DARK BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20150iAT17#,CT17#,ST171..GX,XL198712-199211

main69210-20150iAT171,ST171..RHD..GL;ST171..(EXS,GL,GT)..GCC198712-199208

W(BLACK)

main69210-20160iAT171,ST171..EXS,GL,GT198712-199208

main69210-20160iAT17#,CT17#,ST171..GX,XL198712-199211

W(PLATING)

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iAT17#,CT17#,ST171198712-199211

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20150iAT171,ST171..RHD..GL;ST171..(EXS,GL,GT)..GCC198712-199208

W(BLACK)

main69220-20150iAT17#,CT17#,ST171..GX,XL198712-199211

main69220-20160iAT17#,CT17#,ST171..GX,XL198712-199211

W(PLATING)

main69220-20160iAT171,ST171..EXS,GL,GT198712-199208

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-20070-03iAT17#,CT17#,ST171198712-199211

GRAY,TRIM1#

main69277-20070-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

BLUE,TRIM8#

main69277-20070-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

main69277-20070-14iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-20080-03iAT17#,CT17#,ST171198712-199211

GRAY,TRIM1#

main69278-20080-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198911

BLUE,TRIM8#

main69278-20080-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

main69278-20080-14iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT17#,CT17#,ST171198712-199211

RH

main69293-12040iAT17#,CT17#,ST171198712-199211

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-20370iAT17#,ST171..RHD198911-199211

W(ELECTROMAGNETIC LOCK)

main69030-20380iAT17#,CT17#,ST171..LHD..GEN198911-199211

W(ELECTROMAGNETIC LOCK)

main69310-20450iAT17#,CT17#,ST171..GEN198712-199211

main69310-20460iAT171,ST171..GCC198712-199203

main69310-20480iAT17#,ST171..RHD198712-198911

W(ELECTROMAGNETIC LOCK)

main69310-20490iAT17#,CT17#,ST171..LHD..GEN198712-198911

W(ELECTROMAGNETIC LOCK)

main69310-20500iAT171,ST171..GCC198712-199203

W(ELECTROMAGNETIC LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69040-20370iAT17#,ST171..RHD198911-199211

W(ELECTROMAGNETIC LOCK)

main69040-20380iAT17#,CT17#,ST171..LHD..GEN198911-199211

W(ELECTROMAGNETIC LOCK)

main69320-20450iAT17#,CT17#,ST171..GEN198712-199211

main69320-20460iAT171,ST171..GCC198712-199203

main69320-20480iAT17#,ST171..RHD198712-198911

W(ELECTROMAGNETIC LOCK)

main69320-20490iAT17#,CT17#,ST171..LHD..GEN198712-198911

W(ELECTROMAGNETIC LOCK)

main69320-20500iAT171,ST171..GCC198712-199203

W(ELECTROMAGNETIC LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iAT17#,CT17#,ST171198712-199211

69511ERETAINER, FRONT DOOR LOCK CYLINDER

main69511-20010iAT17#,CT17#,ST171198911-199211

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20110iAT17#,CT17#,ST171198712-199211

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20110iAT17#,CT17#,ST171198712-199211

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iAT17#,CT17#,ST171198712-199211

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-03iAT17#,CT17#,ST171198712-198911

SHADOW GRAY,TRIM1#

main69741-90K00-34iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198809

BLUE,TRIM8#

main69741-90K00-36iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

main69741-90K00-43iAT17#,CT17#,ST171198911-199211

GRAY,TRIM1#

main69741-90K00-54iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

main69741-90K00-J0iST171..GEN;AT17#,CT17#;ST171..SED..GCC198809-198911

DARK BLUE,TRIM8#

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iAT17#,CT17#,ST171198712-199211

LH

main69759-24060iAT17#,CT17#,ST171198712-199211

RH

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iAT17#,CT17#,ST171198712-199211

LH

main69759-24070iAT17#,CT17#,ST171198712-199211

RH

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506074

main90105-06074

9015960329

main90159-60329

9015960356

main90159-60356

9015980030

main90159-80030

9016250008

main90162-50008

9016720002

main90167-20002

9018905003

main90189-05003

9038606021

main90386-06021

9046312570

main90463-12570

9152140610

main91521-40610

30 parts on this diagram · 1 diagram in section
