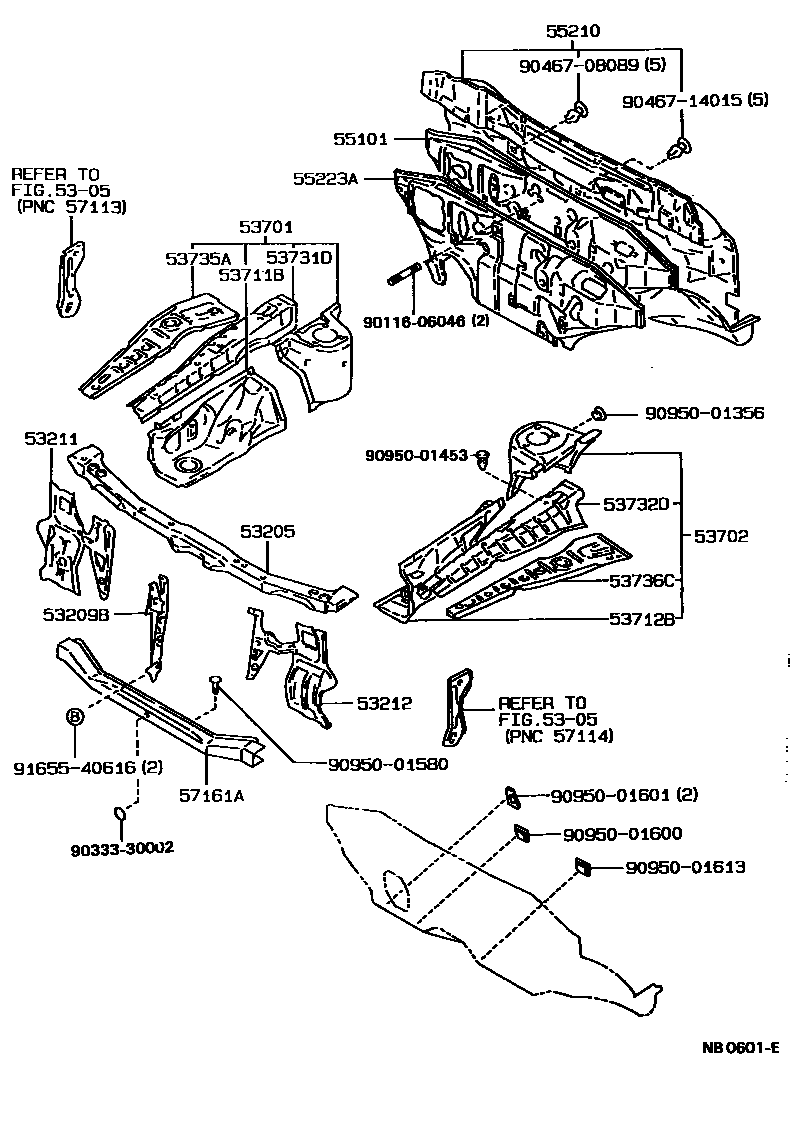

FRONT FENDER APRON & DASH PANEL

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-20900iAT17#,CT17#,ST171198712-199211

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-20150iST171..GCC198712-198911

main53209-20160iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR198911-199211

main53209-20180iAT171..GCC198712-198911

main53209-20230iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR; ST171..EFI;ST171..SED..GCC;ST171..(LB,WG)..(GT,XL)198911-199211

EXTERIOR PACKAGE

main53209-20240iAT171..GCC; AT171..LHD..4F198911-199203

MIDDLE EAST SPEC & EXTERIOR PACKAGE

53211SUPPORT, RADIATOR, RH

main53211-20190iAT17#,CT17#,ST171198712-199211

53212SUPPORT, RADIATOR, LH

main53212-20190iAT17#,CT17#,ST171198712-199211

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20650iAT17#,CT17#,ST171198712-199211

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20640iAT177..5F;ST171..3FC..GL;AT177..LHD..3FC;ST171..LHD..5F..GEN;AT171,CT17#..LHD..GEN; ST171..3FC..XL;AT177..RHD..3FC;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;ST171..EFI;AT171,ST171..GCC198712-198907

W(CHIPPING TAPE); W(CHIPPING TAPE) OR CKD SPEC

main53702-20641iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR198712-198907

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20220iAT17#,CT17#,ST171198712-199211

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20250iAT177..5F;ST171..3FC..GL;AT177..LHD..3FC;ST171..LHD..5F..GEN;AT171,CT17#..LHD..GEN; ST171..3FC..XL;AT177..RHD..3FC;AT171,ST171..RHD..(LB,SED)..CBR; ST171..WG;ST171..EFI;AT171,ST171..GCC198712-198907

W(CHIPPING TAPE); W(CHIPPING TAPE) OR CKD SPEC

main53712-20251iAT17#,CT17#,ST171198907-198911

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20070iAT17#,CT17#,ST171198712-199211

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20070iAT17#,CT17#,ST171198712-198911

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-20050iAT17#,CT17#,ST171198712-199211

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-20060iAT17#,CT17#,ST171199005-199211

55101PANEL SUB-ASSY, DASH

main55101-2B110iCT17#198712-198801

main55101-2B903iAT17#,ST171..RHD..MTM198712-199211

main55101-2B904iAT17#,ST171..RHD..ATM198712-199211

main55101-2B905iAT17#,CT17#,ST171..LHD..MTM198801-199211

main55101-2B906iAT17#,ST171..LHD..ATM198712-199211

55210INSULATOR ASSY, DASH PANEL

main55210-20180iAT17#,CT17#,ST171..LHD198712-199211

main55210-20190iAT17#,ST171..RHD198712-199211

55223AINSULATOR, DASH PANEL, OUTER

main55223-20070iCT17#198712-199211

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-20908iAT17#,CT17#,ST171198712-199211

9011606046

main90116-06046

9033330002

main90333-30002

9046708089

main90467-08089

9046714015

main90467-14015

9095001356

main90950-01356

9095001453

main90950-01453

9095001580

main90950-01580

9095001600

main90950-01600

9095001601

main90950-01601

9095001613

main90950-01613

9165540616

main91655-40616

28 parts on this diagram · 1 diagram in section
