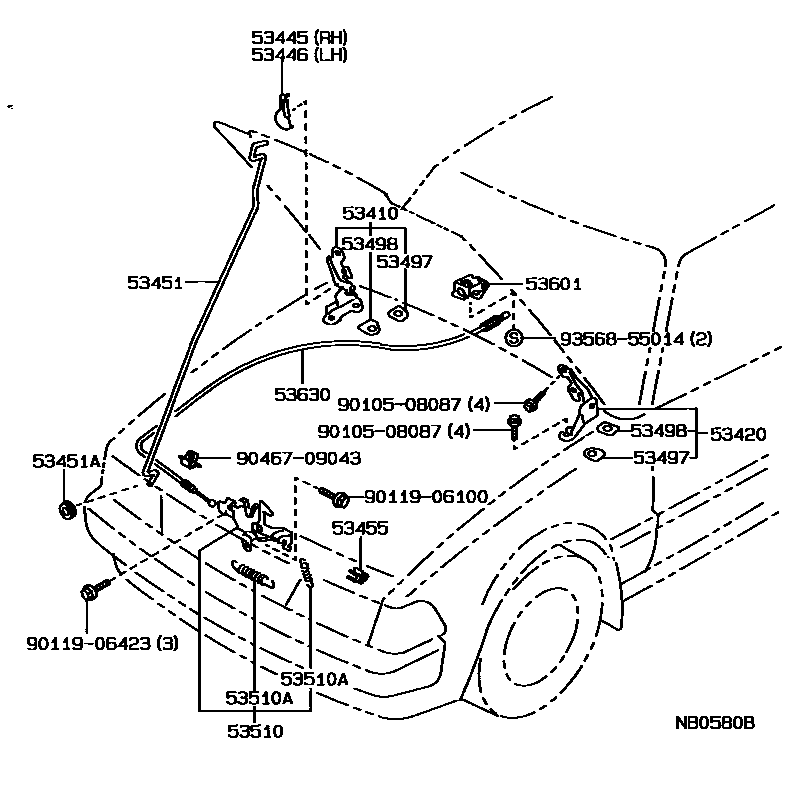

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20100iAT17#,CT17#,ST171198712-199211

53420HINGE ASSY, HOOD, LH

main53420-20090iAT17#,CT17#,ST171198712-199211

53445COVER, HOOD HINGE, RH

main53445-20010iAT17#,CT17#,ST171198712-199211

53446COVER, HOOD HINGE, LH

main53446-20010iAT17#,CT17#,ST171198712-199211

53451ROD, HOOD SUPPORT

main53451-20080iAT17#,CT17#,ST171198712-199211

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15012iAT17#,CT17#,ST171198712-199211

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAT17#,CT17#,ST171198712-199211

53497PAD, HOOD HINGE, NO.1

main53497-20020iAT17#,CT17#,ST171198712-199211

53498PAD, HOOD HINGE, NO.2

main53498-20010iAT17#,CT17#,ST171198712-198911

53510LOCK ASSY, HOOD

main53510-20230iAT17#,CT17#,ST171..LHD198712-198911

main53510-20240iAT17#,ST171..RHD198712-198911

main53510-20320iAT171,ST171..GCC198911-199203

main53510-20330iAT17#..RHD;ST171..RHD..(LB,SED)..CBR; ST171..WG;ST171..EFI198911-199211

EXTERIOR PACKAGE

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAT17#,CT17#,ST171198712-198911

WD=0.9,WD=0.9,CW=26.5

main90506-09044iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR; ST171..EFI;AT171,ST171..SED..GCC;ST171..(LB,WG)..(GT,XL)198911-199211

EXTERIOR PACKAGE,WD=0.9,CW=9.5; WD=0.9,CW=9.5

main90506-20008iAT17#,CT17#,ST171198712-199211

WD=2.0,CW=17,WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020iST171..GT199005-199008

main53601-10020-16iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198712-199208

SABLE,TRIM4#

main53601-10020-23iAT17#,CT17#,ST171198712-198911

GRAY,TRIM1#

main53601-10020-24iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198809

DARK BLUE,TRIM8#

main53601-10020-34iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199211

DARK BLUE,TRIM8#

main53601-10020-B1iAT17#,CT17#,ST171199008-199211

SHADOW GRAY,TRIM1#

main53601-10020-J0iST171..GEN;AT17#,CT17#;ST171..SED..GCC198809-198911

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20240iAT17#,CT17#,ST171..LHD198712-199211

main53630-20250iAT17#,ST171..RHD198712-199211

9010508087

main90105-08087

9011906100

main90119-06100

9011906423

main90119-06423

9046709043

main90467-09043

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
