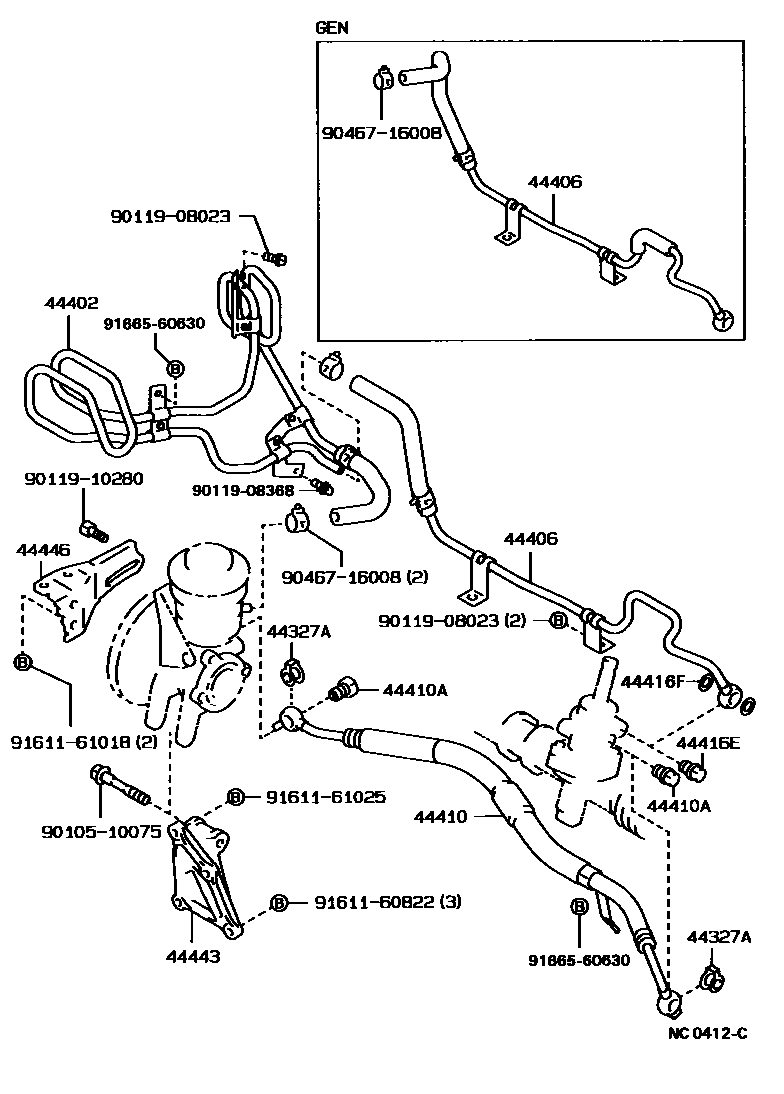

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010×2iAT17#,CT17#,ST171..LHD198712-199211

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20240iAT171..GCC198712-198808

main44402-20241iAT171..GCC198808-199105

main44402-20242iAT171..GCC199105-199203

main44402-20280iST171..GCC198712-199203

44406TUBE SUB-ASSY, RETURN

main44406-20090iAT17#..RHD..XL;AT171..4FC..GL199008-199211

main44406-20110iAT171..GCC198712-198808

main44406-20111iAT171..GCC198808-199102

main44406-20112iAT171..GCC199102-199203

main44406-20120iAT17#..LHD..GEN198712-199102

main44406-20121iAT17#..LHD..GEN199102-199211

main44406-20140iST171..RHD198712-199211

main44406-20180iST171..GCC198712-199203

main44406-20200iST171..LHD..GEN198712-199208

44410TUBE ASSY, PRESSURE FEED

main44410-20380iAT17#..RHD..XL;AT171..4FC..GL; AT171..RHD..5F..GL199008-199010

main44410-20381iAT171..RHD..5F..GL199012-199208

main44410-20390iAT17#..LHD198712-199010

main44410-20391iAT17#..LHD199010-199211

main44410-20430iST171..RHD198712-199211

main44410-20520iST171..SED..EFI199008-199208

INDONESIA SPEC

main44410-20530iAT171..RHD..5F..GL199008-199012

INDONESIA SPEC

main44410-20531iAT171..RHD..5F..GL199104-199208

INDONESIA SPEC

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT17#..LHD; CT17#;AT17#..RHD198712-198911

VANE PUMP SIDE

main90401-16013iAT17#..LHD; CT17#; ST171..LHD198911-199211

GEAR SIDE; GEAR SIDE(PRESSURE)

main90401-17002iCT17#198712-198911

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20110iST171..RHD198712-199211

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-17002iAT17#,ST171..LHD198712-199211

44416FGASKET(FOR RETURN TUBE)

main90430-17005×2iAT17#..LHD198712-198911

44443BRACKET, PUMP

main44443-12050iAT17#198712-199211

main44443-20050iST171198712-199211

44446STRUT, ADJUSTING

main44446-12040iAT17#198712-199211

9010510075

main90105-10075

9011908023

main90119-08023

9011908368

main90119-08368

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166560630

main91665-60630

19 parts on this diagram · 5 diagrams in section
