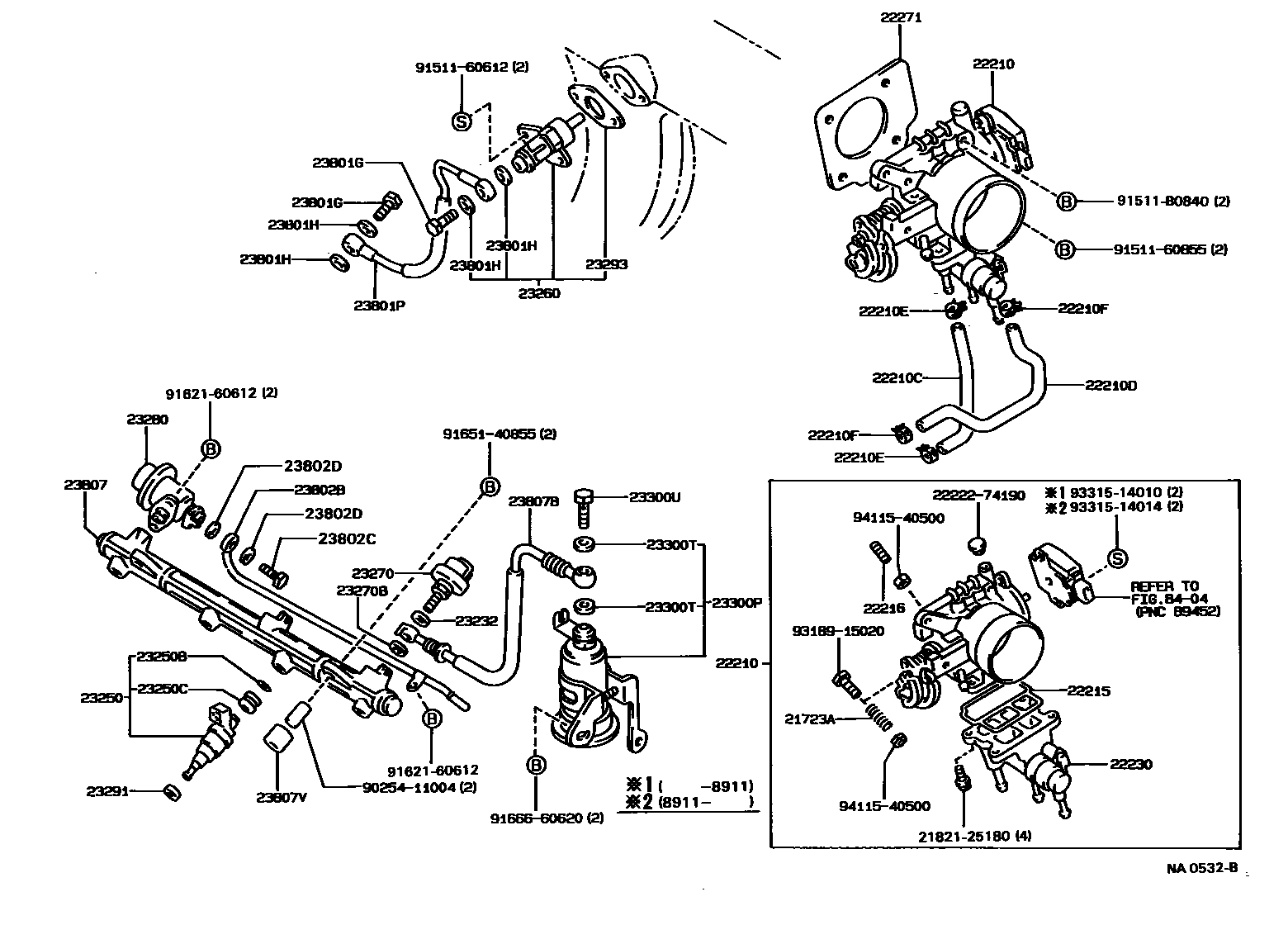

FUEL INJECTION SYSTEM
21723ASPRING, IDLE ADJUST
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2222274190GASKET, INTAKE AIR CONTROL VALVE, NO.2
main22222-74190
9025411004
main90254-11004
9151160612
main91511-60612
9151160855
main91511-60855
91511B0840
main91511-B0840
9162160612
main91621-60612
9165140855
main91651-40855
9166660620
main91666-60620
9318915020
main93189-15020
9331514010
main93315-14010
9331514014
main93315-14014
9411540500
main94115-40500
46 parts on this diagram · 2 diagrams in section
