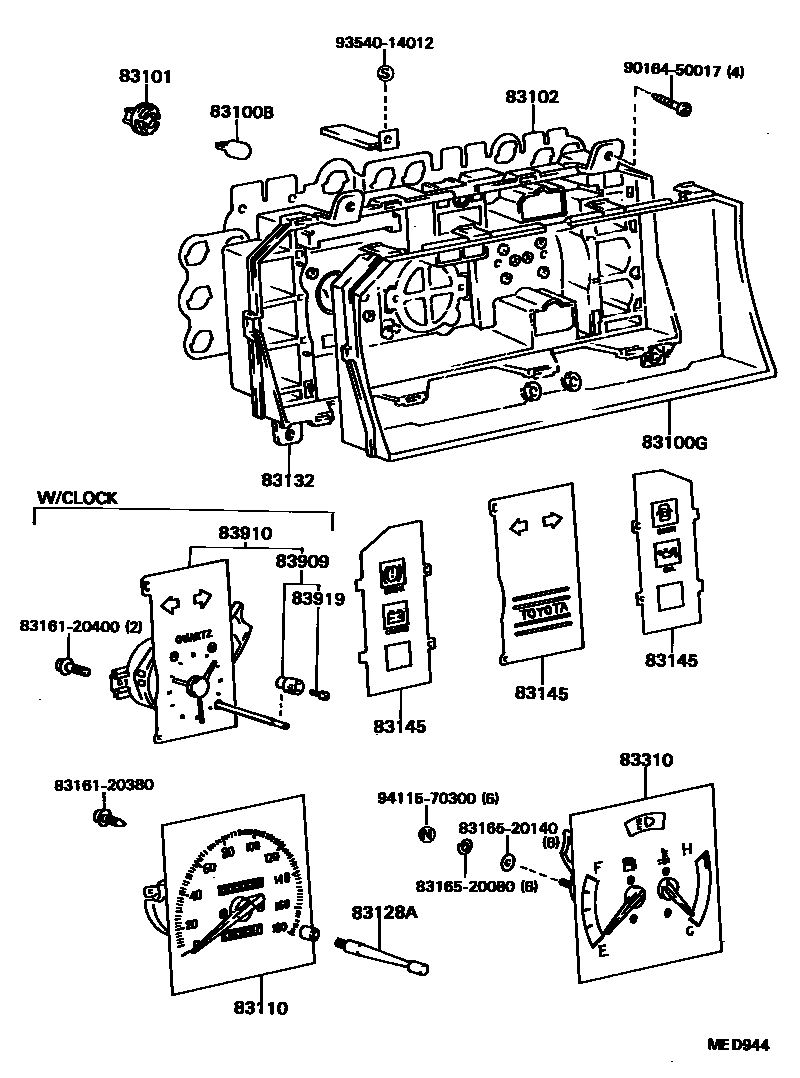

METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×9iAT151,CT150,ST15#..DX,GL,XL198310-198711

12V 1.2W W/O SOCKET

main99132-12034×13iAT151,CT150,ST15#198310-198711

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-20120iAT151..RHD..STD198310-198508

W/O TACHOMETER & CLOCK

main83138-20160iST150..EUG;AT151..SED..LHD..5F..EUR;AT151,CT150..LB..LHD..EUR198508-198711

W/TACHOMETER

main83138-20220iAT151,CT150,ST15#..RHD..(GL,XL)198310-198711

W/TACHOMETER

main83138-20240iAT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN; CT150..RHD; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

W/O TACHOMETER

main83138-2B210iAT151..LHD..STD198310-198508

W/O TACHOMETER & CLOCK

main83138-2B230iAT151,CT150,ST150..LHD..(STD,XL); AT151,CT150,ST150..LHD..EUR198310-198711

W/O TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×13iAT151,CT150,ST15#198310-198711

BULB=12V 3.4W

main83101-14040×9iAT151,CT150,ST15#..DX,GL,XL198310-198711

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-20400iAT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

W/O TACHO METER; W/O TACHOMETER

main83247-20420iCT150..RHD198310-198711

W/O TACHOMETER

main83247-20500iAT151,ST150..RHD..(GL,XL)198310-198711

W/TACHOMETER

main83247-20520iCT150..RHD198310-198711

W/TACHOMETER

main83247-20550iAT151,ST150..LHD..(STD,XL)..GEN198310-198711

W/O TACHOMETER,W/CLOCK

main83247-20560iAT151..LHD..GL..EUR; CT150..LHD..GEN198310-198508

MILE & KM W/TACHOMETER; W/TACHOMETER

main83247-20580iCT150..LHD..(GL,XL)198310-198508

KM,W/TACHOMETER

main83247-20590iAT151..LHD..EUR198310-198711

W/O TACHOMETER

main83247-20600iAT151,ST150..LHD..(GL,XL)..GEN; ST150..SAA198310-198711

W/TACHOMETER

main83247-20610iCT150..LHD..GEN198310-198711

W/O TACHOMETER

main83247-20630iCT150..LHD..EUG198310-198711

W/O TACHOMETER

main83247-20650iAT151,ST150..XL..SAA198310-198711

W/O TACHOMETER

main83247-20730iST151198508-198711

W/TACHOMETER

main83247-20800iST150..EUG198508-198711

W/TACHOMETER

main83247-20820iAT151..LHD..4F..GEN; ST150..LHD..(3FC,5F)..GEN198508-198711

*ME,W/TACHOMETER

main83247-20830iAT151..LHD..STD198310-198508

main83247-20850iAT151..LHD..4F..XL..GEN; ST150..LHD..(3FC,5F)..XL..GEN198310-198711

*ME,W/O TACHOMETER

main83247-20870iAT151..LHD..STD198310-198508

*ME

main83247-20890iST150..EUG198508-198711

W/O TACHOMETER

83110SPEEDOMETER ASSY

main83110-2B130iAT151,CT150..RHD..(STD,XL); ST150..SED..RHD;ST150..LB..RHD..XL198310-198508

KM,W/O TACHOMETER

main83110-2B131iAT151,CT150..RHD..XL..GEN; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198508-198711

KM,W/O TACHOMETER

main83110-2B140iAT151,ST150..(3FC,5F)..TH198508-198608

KM

main83110-2B141iAT151,CT150,ST15#..RHD..GEN198508-198711

KM,W/TACHOMETER

main83110-2B150iAT151..RHD..STD198310-198508

MILE & KM

main83110-2B160iCT150..RHD;AT151..RHD..EUG;AT151,ST150..RHD..(STD,XL)198310-198508

MILE & KM,W/O TACHOMETER

main83110-2B161iAT151,CT150,ST150..RHD..XL..GEN; AT151,CT150..RHD..EUG198508-198711

MILE & KM,W/O TACHOMETER

main83110-2B170iAT151,CT150,ST150..RHD..(GL,XL)198310-198508

MILE & KM,W/TACHOMETER

main83110-2B171iAT151,CT150..RHD..(EUR,GEN); ST150..RHD..GEN198508-198711

MILE & KM,W/TACHOMETER

main83110-2B180iAT151,CT150,ST150..LHD..(STD,XL)..GEN198310-198508

KM,W/O TACHOMETER

main83110-2B181iAT151,CT150,ST150..LHD..XL..GEN198508-198711

KM,W/O TACHOMETER

main83110-2B190iAT151,CT150,ST150..LHD..(GL,XL)..GEN198310-198508

KM,W/TACHOMETER

main83110-2B191iAT151,CT150,ST150..LHD..GEN198508-198711

KM,W/TACHOMETER

main83110-2B200iAT151,CT150,ST150..LHD..(STD,XL)..GEN198310-198508

MILE & KM,W/O TACHOMETER

main83110-2B201iAT151,CT150,ST150..LHD..XL..GEN198508-198711

MILE & KM,W/O TACHOMETER

main83110-2B210iAT151,CT150,ST150..LHD..(GL,XL)..GEN198310-198508

MILE & KM,W/TACHOMETER

main83110-2B211iAT151,CT150,ST150..LHD..GEN198508-198711

MILE & KM,W/TACHOMETER

main83110-2B220iAT151,CT150..LHD..EUR198310-198508

W/O TACHOMETER

main83110-2B221iAT151,CT150,ST150..LHD..EUR198508-198711

W/O TACHOMETER

main83110-2B230iAT151,CT150..LHD..GL..EUR198310-198508

W/TACHOMETER

main83110-2B231iST150..EUG;AT151..SED..LHD..5F..EUR;AT151,CT150..LB..LHD..EUR198508-198711

W/TACHOMETER

main83110-2B240iST150..XL..SAA198310-198508

W/O TACHOMETER

main83110-2B241iAT151,ST150..XL..SAA198508-198711

W/O TACHOMETER

main83110-2B250iST150..SAA198310-198508

W/TACHOMETER

main83110-2B251iST150..SAA198508-198711

W/TACHOMETER

83128AKNOB, METER

main83128-10260iAT151,CT150,ST150..LHD..(STD,XL); AT151,CT150..LHD..EUR198310-198508

W/O TACHO METER

main83128-16060iAT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA); AT151,CT150..RHD..(STD,XL)..GEN; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

W/O TACHO METER; W/TACHOMETER

main83128-20020iAT151,CT150,ST15#..RHD..(GL,XL)..(EUR,GEN)198310-198711

W/TACHOMETER

83132CASE, COMBINATION METER

main83132-20080iAT151,ST150..RHD..(GL,XL)198310-198508

W/TACHOMETER

main83132-20100iAT151..RHD..EUG;AT151..RHD..(STD,XL); ST150..SED..RHD;ST150..LB..RHD..XL198310-198508

W/O TACHOMETER

main83132-20200iAT151..RHD..STD198310-198508

W/O TACHOMETER & CLOCK

main83132-20220iCT150..RHD198310-198508

W/O TACHOMETER

main83132-20240iCT150..RHD198310-198508

W/TACHOMETER

main83132-20260iAT151,ST150..LHD..(GL,XL)..(GEN,SAA)198310-198508

W/TACHOMETER

main83132-20280iAT151..LHD..GL..EUR; CT150..LHD..GEN198310-198508

MILE & KM,W/TACHOMETER; W/TACHOMETER

main83132-20300iCT150..LHD..(GL,XL)198310-198508

KM,W/TACHO METER

main83132-20440iAT151,ST150..RHD..(EUR,GEN)198508-198711

W/TACHOMETER

main83132-20460iCT150,ST151..RHD198508-198711

W/TACHOMETER

main83132-20480iST150..EUG;AT151..LB..LHD..EUR;AT151..SED..LHD..5F..EUR198508-198711

W/TACHOMETER

main83132-20500iCT150..LB..DX;CT150..LHD..(GL,XL)198508-198711

KM,W/TACHO METER

main83132-20520iAT151,ST150..LHD..(GEN,SAA)198508-198711

W/TACHOMETER

main83132-20540iAT151..RHD..XL..GEN;AT151..RHD..(4FC,5F)..(EUR,TH); ST150..LB..RHD..XL;ST150..SED..RHD..GEN198508-198711

W/O TACHOMETER

main83132-20580iCT150..RHD198508-198711

W/O TACHOMETER

main83132-2B190iST150..EUG198508-198711

W/O TACHOMETER

main83132-2B210iAT151..LHD..STD198310-198508

*ME

main83132-2B730iAT151..LHD..STD198310-198508

W/O TACHOMETER

main83132-2B750iAT151,ST150..LHD..(STD,XL)..GEN198310-198508

W/O TACHOMETER

main83132-2B751iAT151,ST150..LHD..XL..GEN198508-198711

W/O TACHOMETER

main83132-2B790iAT151..LHD..EUR198310-198508

W/O TACHOMETER

main83132-2B791iAT151..LHD..EUR198508-198711

W/O TACHOMETER

main83132-2B810iCT150..LHD..GEN198310-198508

W/O TACHOMETER

main83132-2B811iCT150..LHD..GEN198508-198711

W/O TACHOMETER

main83132-2B850iCT150..LHD..EUG198310-198508

W/O TACHOMETER

main83132-2B851iCT150..LHD..EUG198508-198711

W/O TACHOMETER

main83132-2B870iAT151..LHD..4F..XL; ST150..LHD..(3FC,5F)..XL..GEN; ST150..XL..SAA198310-198508

*ME,W/O TACHOMETER; W/O TACHOMETER

main83132-2B871iAT151,ST150..XL..SAA; AT151..LHD..4F..XL; ST150..LHD..(3FC,5F)..XL..GEN198508-198711

*ME,W/O TACHOMETER; W/O TACHOMETER

83145LENS, METER, NO.1

main83145-20400iAT151..RHD..STD198310-198508

RH,W/O TACHOMETER & CLOCK

main83145-20440iAT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN; CT150..RHD; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

LH,W/O TACHOMETER

main83145-20480iAT151..RHD..STD198310-198508

CTR

main83145-20500iAT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN; CT150..RHD; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

RH,W/O TACHOMETER

main83145-20560iAT151,ST150..(3FC,5F)..TH198508-198608

main83145-20580iAT151,ST150..LHD..(GL,XL)..GEN; CT150..LHD..GEN198310-198508

KM

main83145-20600iAT151,CT150..LHD..GL..EUR; CT150..LHD..GEN198310-198508

MILE & KM

main83145-20620iAT151..LHD..4F..XL; ST150..LHD..GEN; ST150..SAA198310-198508

*ME

main83145-20920iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

W/TACHOMETER

main83145-20940iAT151..SED..LHD..5F..EUR;AT151,CT150..LB..LHD..EUR198508-198711

W/TACHOMETER

main83145-20960iST150..EUG198508-198711

W/TACHOMETER

main83145-20980iAT151,CT150,ST150..LHD..GEN198508-198711

main83145-2B740iAT151..LHD..4F..GEN; ST150..LHD..(3FC,5F)..GEN; ST150..SAA198508-198711

*ME

83310GAGE ASSY, FUEL RECEIVER

main83243-20240iAT151..RHD..STD198310-198508

W/O TACHOMETER & CLOCK

main83243-20260iAT151..RHD..EUG;AT151..RHD..(STD,XL); CT150..RHD; ST150..SED..RHD;ST150..LB..RHD..XL198310-198508

W/O TACHOMETER

main83243-20280iAT151,CT150,ST150..RHD..(GL,XL)198310-198508

W/TACHOMETER

main83243-20300iAT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA); AT151,CT150..LHD..GL..EUR198310-198508

W/TACHOMETER

main83243-20310iAT151..LHD..STD;AT151,CT150..LHD..EUR198310-198508

W/O TACHOMETER & CLOCK

main83243-20311iAT151,CT150,ST150..LHD..EUR198508-198711

W/O TACHOMETER

main83243-20330iAT151,CT150,ST150..LHD..(STD,XL)..GEN198310-198508

W/O TACHOMETER

main83243-20331iAT151,CT150,ST150..LHD..XL..GEN198508-198711

W/O TACHOMETER

main83243-20350iAT151..LHD..4F..GEN; ST150..LHD..(3FC,5F)..XL198310-198508

*ME,W/O TACHOMETER; W/O TACHOMETER,*ME

main83243-20351iAT151..LHD..4F..XL; ST150..LHD..(3FC,5F)..XL198508-198711

*ME,W/O TACHOMETER; W/O TACHOMETER,*ME

main83243-20460iAT151..RHD..EUG; AT151..RHD..XL..GEN; CT150..RHD; ST150..LB..RHD..XL; ST150..SED..RHD..GEN198508-198711

W/O TACHOMETER

main83243-20500iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

W/TACHOMETER

main83243-20520iAT151,CT150,ST150..LHD..(GEN,SAA); ST150..EUG;AT151..SED..LHD..5F..EUR;AT151,CT150..LB..LHD..EUR198508-198711

W/TACHOMETER

main83243-2B200iAT151..4F..TH198508-198608

main83243-2B220iAT151,ST150..(3FC,5F)..TH198508-198608

83909KNOB, CLOCK

main83909-14012iAT151,CT150,ST150..(STD,XL)..(GEN,SAA); AT151,CT150,ST150..EUR198310-198711

W/ANALOGUE CLOCK

main83909-22180iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA)198310-198711

W/DIGITAL CLOCK

83910CLOCK ASSY

main83910-20360iAT151..RHD..(EUR,TH);AT151..RHD..(STD,XL)..GEN; ST150..LB..RHD..XL;ST150..SED..RHD..GEN198310-198711

ANALOG CLOCK; ANALOGUE CLOCK

main83910-20370iAT151,CT150,ST15#..RHD..(GL,XL)198310-198711

DIGITAL CLOCK

main83910-20480iCT150..RHD198310-198711

ANALOGUE CLOCK

main83910-20490iAT151,ST150..LHD..(STD,XL)198310-198711

ANALOGUE CLOCK

main83910-20500iAT151,ST150..LHD..EUR198310-198711

ANALOGUE CLOCK

main83910-20510iCT150..LHD198310-198711

ANALOGUE CLOCK

main83910-20520iAT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA)198310-198711

DIGITAL CLOCK

83919SCREW, CLOCK

main83919-12230iAT151..5F..DX;CT150..LB..DX;AT151,CT150,ST150..GL..EUR198508-198711

W/DIGITAL CLOCK

main83919-14012iAT151,CT150,ST150..(STD,XL)..(GEN,SAA); AT151,CT150,ST150..EUR198310-198711

W/ANALOGUE CLOCK

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316520080MIRROR, COMBINATION METER, NO.2

main83165-20080

8316520140MIRROR, COMBINATION METER, NO.2

main83165-20140

9016450017

main90164-50017

9354014012

main93540-14012

9411570300

main94115-70300

19 parts on this diagram · 5 diagrams in section
