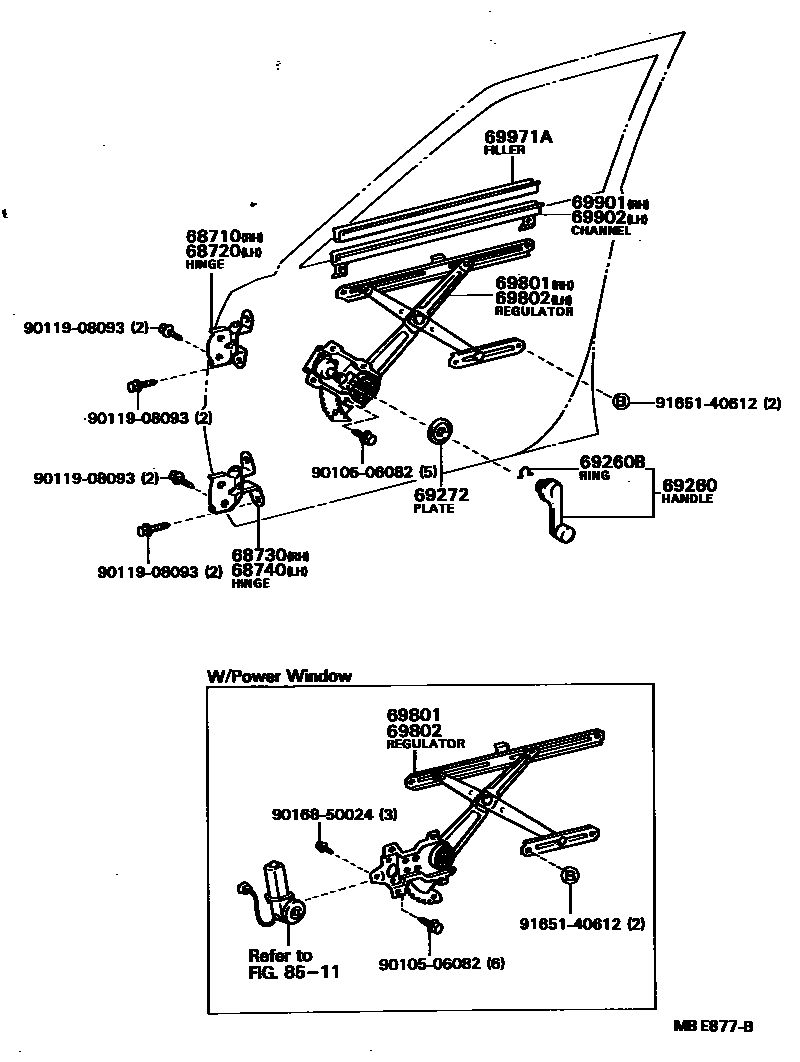

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iAT151,CT150,ST15#198310-198711

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iAT151,CT150,ST15#198310-198711

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iAT151,CT150,ST15#198310-198711

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iAT151,CT150,ST15#198310-198711

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-04×2iAT151..SDZ;AT151,CT150,ST150..GEN,SAA198310-198508

BLUE,BLUE,TRIM8#

main69260-14020-12×2iAT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main69260-14020-33×2iAT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH198310-198711

SHADOW GRAY,GRAY,TRIM1#

main69260-14020-44×2iAT151..SDZ;AT151,CT150,ST15#..GEN,SAA,TH198508-198711

BLUE,BLUE,TRIM8#

main69260-14030-04×2iAT151,CT150..EUG198310-198508

BLUE,BLUE,TRIM8#

main69260-14030-12×2iAT151,CT150,ST150..EUG,FRG198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main69260-14030-20×2iAT151,CT150,ST150..EUG,FRG198508-198711

BLUE,BLUE,TRIM8#

main69260-14030-33×2iAT151,CT150,ST150..EUG,FRG198310-198711

SHADOW GRAY,GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAT151,CT150,ST15#198310-198711

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iAT151,CT150,ST15#198310-198711

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20120iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW

main69810-20100iAT151,CT150,ST15#198310-198711

W/O *PW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20120iST150..EUG198508-198711

W/*PW

main69820-20100iAT151,CT150,ST15#198310-198711

W/O *PW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20110iAT151,CT150,ST15#198310-198711

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-20110iAT151,CT150,ST15#198310-198711

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010×2iAT151,CT150,ST15#198310-198711

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9011908093

main90119-08093

9016850024

main90168-50024

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
