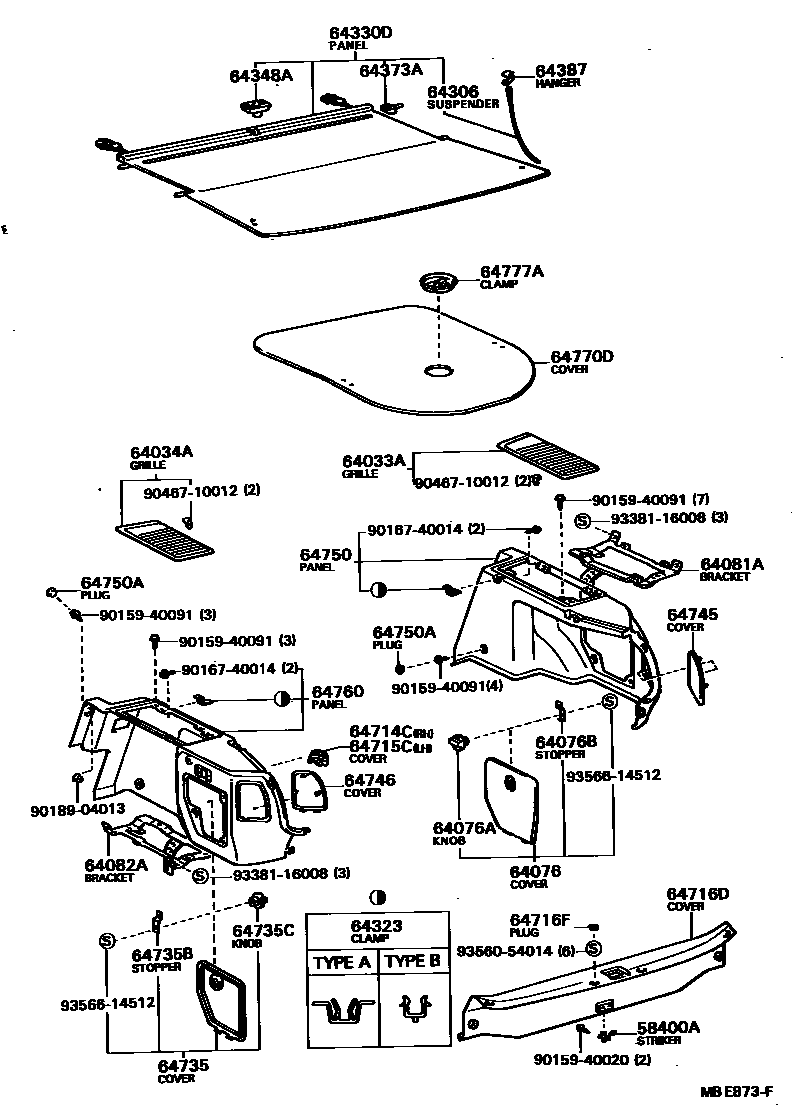

DECK BOARD & DECK TRIM COVER
58400ASTRIKER, LUGGAGE HOLD BELT
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
W/SPEAKER,MAROON,RED/MAROON,TRIM3#
W/SPEAKER,GRAY,GRAY,TRIM1#
W/SPEAKER,BLUE,BLUE,TRIM8#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
W/SPEAKER,MAROON,RED/MAROON,TRIM3#
W/SPEAKER,GRAY,GRAY,TRIM1#
W/SPEAKER,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64076COVER, DECK TRIM SIDE JACK
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64076AKNOB, DECK TRIM SIDE JACK COVER
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
64076BSTOPPER, DECK TRIM SIDE JACK COVER
64081ABRACKET SUB-ASSY, SPEAKER SET, RH
64082ABRACKET SUB-ASSY, SPEAKER SET, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323CLAMP, PACKAGE TRAY TRIM, NO.1
TYPE A
TYPE B
64330DPANEL ASSY, PACKAGE TRAY TRIM
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SPORT PACKAGE,MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64348AKNOB, PACKAGE TRAY TRIM
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64373ASTOPPER, PACKAGE TRAY TRIM
RH
LH
64387HANGER, PACKAGE TRAY TRIM
64714CCOVER, DECK SIDE TRIM, RH
DEEP MAROON,RED/MAROON,TRIM3#
SPORT PACKAGE,SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SPORT PACKAGE,BLUE,BLUE,TRIM8#
64715CCOVER, DECK SIDE TRIM, LH
DEEP MAROON,RED/MAROON,TRIM3#
SPORT PACKAGE,SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SPORT PACKAGE,BLUE,BLUE,TRIM8#
64716DCOVER, DECK TRIM, REAR
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64735COVER, DECK TRIM SIDE SERVICE HOLE
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
64750PANEL ASSY, DECK SIDE TRIM, RH
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#
RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#
RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#
RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
main90950-01246-04×7iAT151,CT150,ST150..LB..(DX,XL); AT151,CT150..LB..GL..EUR; ST150..LB..RHD..GL198310-198508
BLUE,BLUE,TRIM8#; RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#
main90950-01246-12×7iAT151,CT150,ST150..LB..(DX,XL); AT151,CT150..LB..GL..EUR; ST150..LB..RHD..GL198310-198508
DEEP MAROON,RED/MAROON,TRIM3#; RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#
main90950-01246-13×7iAT151,CT150,ST150..LB..(DX,XL); AT151,CT150..LB..GL..EUR; ST150..LB..RHD..GL198310-198508
RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64760PANEL ASSY, DECK SIDE TRIM, LH
DEEP MAROON,RED/MAROON,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#
RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#
RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#
RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#
64770DCOVER ASSY, SPARE WHEEL
64777ACLAMP, SPARE WHEEL COVER
9015940020
main90159-40020
9015940091
main90159-40091
9016740014
main90167-40014
9018904013
main90189-04013
9046710012
main90467-10012
9338116008
main93381-16008
9356054014
main93560-54014
9356614512
main93566-14512
36 parts on this diagram · 1 diagram in section
