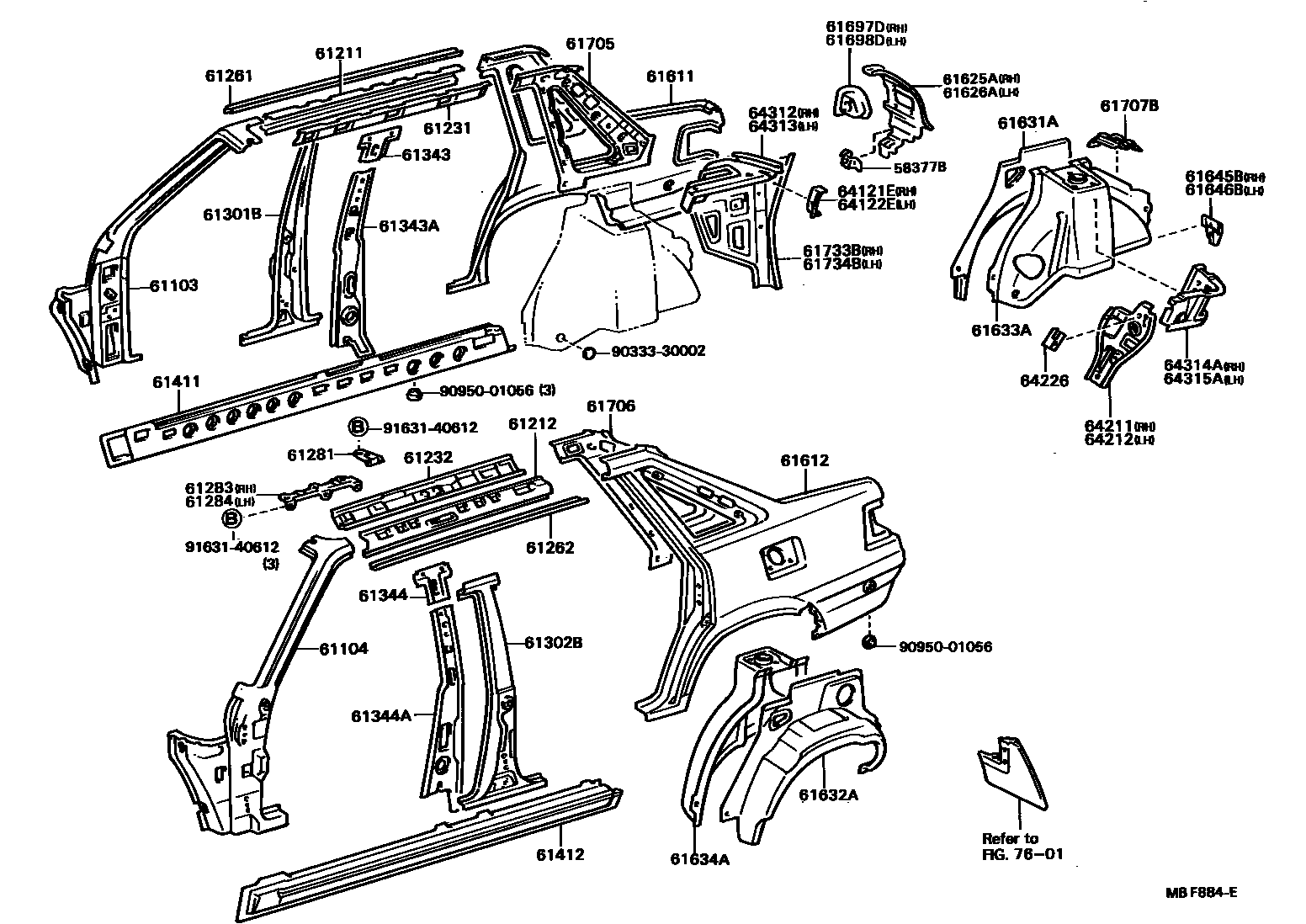

SIDE MEMBER

0001 1 0002 1

58377BRETAINER, LOWER BACK TRIM

main58377-32010×2iAT151,CT150,ST15#..SED198310-198711

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-20220iAT151,CT150,ST15#..LB..RHD198310-198711

main61021-20260iAT151,CT150,ST150..SED..LHD198310-198711

main61021-20270iAT151,CT150,ST150..LB..LHD198310-198711

main61021-20280iAT151,CT150,ST15#..SED..RHD198310-198711

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-20280iAT151,CT150,ST15#..RHD198310-198711

main61022-20320iAT151,CT150,ST150..LHD198310-198711

61211RAIL, ROOF SIDE, OUTER RH

main61211-20130iAT151,CT150,ST15#198310-198711

61212RAIL, ROOF SIDE, OUTER LH

main61212-20130iAT151,CT150,ST15#198310-198711

61231RAIL, ROOF SIDE, INNER RH

main61231-20180iAT151,CT150,ST150..EUR,GEN,SAA198310-198512

W/SUN ROOF

main61231-20190iAT151,CT150,ST15#198310-198512

W/O SUN ROOF

61232RAIL, ROOF SIDE, INNER LH

main61232-20170iAT151,CT150,ST15#198512-198711

main61232-20180iAT151,CT150,ST15#198310-198512

W/O SUN ROOF

61261CHANNEL, ROOF DRIP, RH

main61265-20040iAT151,CT150,ST15#198310-198711

61262CHANNEL, ROOF DRIP, LH

main61266-20040iAT151,CT150,ST15#198310-198711

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-20020×2iAT151,CT150,ST15#198310-198711

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-20020iAT151,CT150,ST15#198310-198711

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-20020iAT151,CT150,ST15#198310-198711

61301BPILLAR, CENTER BODY, OUTER RH

main61301-20200iAT151,CT150,ST15#198310-198711

61302BPILLAR, CENTER BODY, OUTER LH

main61302-20210iAT151,CT150,ST15#198310-198711

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-20070iAT151,CT150,ST15#198310-198711

61343APILLAR, CENTER BODY, INNER RH

main61343-20900iAT151,CT150,ST15#198310-198711

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-20070iAT151,CT150,ST15#198310-198711

61344APILLAR, CENTER BODY, INNER LH

main61344-20900iAT151,CT150,ST15#198310-198711

61411PANEL, ROCKER, OUTER RH

main61401-20160iAT151,CT150,ST15#198310-198711

61412PANEL, ROCKER, OUTER LH

main61402-20160iAT151,CT150,ST15#198310-198711

61611PANEL, QUARTER, RH

main61601-20908iAT151,ST150..SED..(3FC,5F)..TH198508-198608

*GIS,W/*WPM

main61601-20909iAT151,CT150,ST150..SED..LHD..(DX,STD,XL)198310-198404

W/O *WPM

main61601-20910iAT151,CT150,ST150..SED..LHD..(GL,XL)..(GEN,SAA)198404-198711

W/*WPM

main61601-20911iAT151,CT150,ST150..SED..RHD..(GL,XL)..GEN198404-198711

W/*WPM

main61601-20912iAT151,CT150,ST150..SED..RHD..(STD,XL)..GEN198310-198711

W/O *WPM

main61601-20913iAT151,CT150,ST150..LB198310-198404

main61601-20914iAT151,CT150..SED..DX198508-198711

*GIS,W/O *WPM

main61601-20915iAT151..LB..5F..GL..GEN; ST15#..LB..RHD..GEN198508-198711

*GIS

61612PANEL, QUARTER, LH

main61602-20902iAT151,CT150,ST150..SED..LHD..(DX,XL)198310-198404

W/O *WPM,W/OPENER

main61602-20903iAT151,CT150,ST150..SED..LHD..(DX,XL)198310-198401

W/*WPM,OPENER

main61602-20904iAT151,CT150,ST150..SED..LHD..XL198404-198711

W/O *WPM,OPENER

main61602-20905iAT151,CT150,ST150..SED..LHD..XL198404-198711

W/*WPM,W/O OPENER

main61602-20906iAT151,CT150,ST150..SED..RHD..XL..GEN198310-198711

W/O *WPM,W/OPENER

main61602-20907iAT151,CT150,ST150..SED..RHD..(GL,XL)..GEN198404-198711

W/*WPM,OPENER

main61602-20908iAT151,CT150,ST150..SED..RHD..(STD,XL)..GEN198310-198711

W/O *WPM,OPENER

main61602-20909iAT151,CT150,ST150..SED..RHD..XL..GEN198310-198711

W/*WPM,W/O OPENER

main61602-20910iAT151,CT150,ST150..SED..(DX,GL,XL)..(EUR,GEN)198404-198508

*GIS,W/*WPM,OPENER

main61602-20911iAT151,ST150..LB..(GEN,SAA)198404-198711

W/OPENER

main61602-20912iAT151,ST150..LB..XL198404-198711

W/O OPENER

main61602-20913iAT151,CT150,ST150..SED..LHD..(DX,XL)..(EUR,GEN)198404-198508

*GIS,W/O *WPM,OPENER

main61602-20914iAT151..LB..5F..GL..GEN; ST15#..LB..RHD..GEN198508-198711

*GIS,W/OPENER

main61602-20915iAT151,CT150..LB..DX198404-198711

*GIS,W/O OPENER

main61602-20916iAT151,CT150..SED..DX198508-198711

*GIS,W/O *WPM,W/OPENER

main61602-20917iAT151,CT150,ST150..SED..LHD..(DX,XL)..(EUR,GEN)198404-198508

*GIS,W/*WPM,W/O OPENER

61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61625-20030iAT151..4F..TH198508-198608

W/O *WPM

main61625-20040iAT151,ST150..SED..(3FC,5F)..TH198508-198608

W/*WPM

61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH

main61626-20030iAT151..4F..TH198508-198608

W/O *WPM

main61626-20040iAT151,ST150..SED..(3FC,5F)..TH198508-198608

W/*WPM

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20130iAT151,CT150,ST150..GEN,SAA198310-198501

main61631-20131iAT151,CT150,ST15#..GEN,SAA198501-198512

main61631-20140iAT151,CT150..EUR198310-198501

main61631-20141iAT151,CT150,ST150..EUR198501-198512

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20100iAT151,CT150,ST150..GEN,SAA198310-198501

main61632-20101iAT151,CT150,ST15#..GEN,SAA198501-198512

main61632-20110iAT151,CT150..EUR198310-198501

main61632-20111iAT151,CT150,ST15#198512-198711

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20040iAT151,CT150,ST150..LB..(DX,XL)198310-198711

main61607-20050iAT151,CT150,ST15#..LB..GL198310-198711

main61607-20070iAT151,CT150,ST15#..SED198310-198711

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20060iAT151..3FC..FRG198701-198711

SPORT PACKAGE

main61608-20070iAT151,CT150,ST15#..LB..GL198310-198711

main61608-20090iAT151,CT150,ST15#..SED198310-198711

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20040iAT151,CT150,ST15#198310-198711

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20040iAT151,CT150,ST15#198310-198711

61697DHOUSING, QUARTER PANEL END, RH

main61697-20010iAT151,CT150,ST15#..SED198310-198711

61698DHOUSING, QUARTER PANEL END, LH

main61698-20010iAT151,CT150,ST15#..SED198310-198711

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-20170iAT151,CT150,ST15#..SED198310-198711

main61705-20911iAT151,CT150,ST15#..LB198310-198711

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-20170iAT151,CT150,ST15#..SED198310-198711

main61706-20911iAT151,CT150,ST15#..LB198310-198711

61707BSUPPORT, JACK CARRIER

main58792-20020iAT151,CT150,ST150198310-198508

main58792-20021iAT151,CT150,ST15#198508-198711

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-20040iAT151,CT150,ST15#..SED198310-198711

main61735-20900iAT151,CT150,ST15#..LB198310-198711

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-20040iAT151,CT150,ST15#..SED198310-198711

main61736-20900iAT151,CT150,ST15#..LB198310-198711

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-20010iAT151,CT150,ST15#..SED198310-198711

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-20010iAT151,CT150,ST15#..SED198310-198711

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-20100iAT151,CT150,ST15#..SED198310-198711

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-20110iAT151,CT150,ST15#..SED198310-198711

64226HANGER, REAR SEAT CUSHION SUPPORT

main64225-22020×2iAT151,CT150,ST15#..SED198310-198711

64312BRACKET, PACKAGE TRAY, RH

main64312-20090iAT151,CT150,ST15#..SED198310-198711

64313BRACKET, PACKAGE TRAY, LH

main64313-20090iAT151,CT150,ST15#..SED198310-198711

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-20060iAT151,CT150,ST15#..SED198310-198711

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-20050iAT151,CT150,ST15#..SED198310-198711

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9033330002

main90333-30002

9095001056

main90950-01056

9163140612

main91631-40612

50 parts on this diagram · 2 diagrams in section
