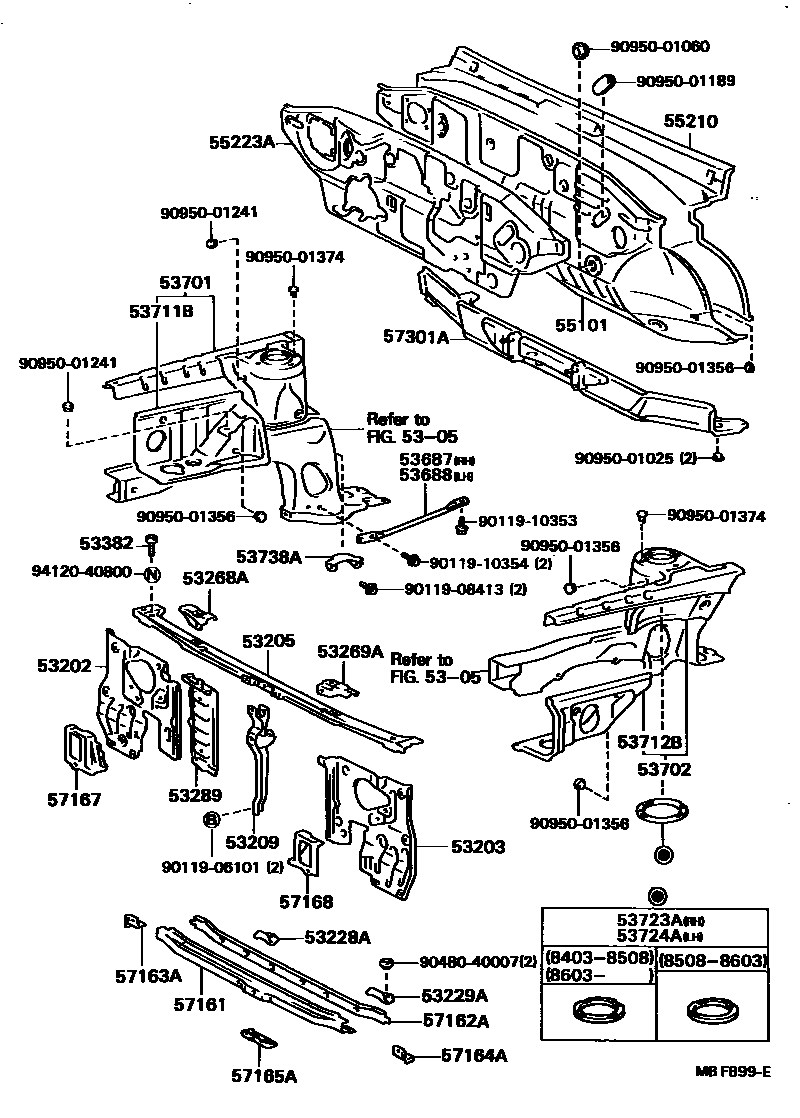

FRONT FENDER APRON & DASH PANEL

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-20090iAT151,CT150,ST150..GEN198409-198508

main53211-20091iAT151..SAA198601-198702

main53211-20130iAT151,CT150,ST150..SED..(GL,XL)..GEN; AT151,CT150..EUR; AT151,ST150..EUR,SAA; ST150..LB..GL..GEN198409-198508

*GIS

main53211-20131iAT151,CT150,ST150..EUR,TH; AT151..SED..RHD..GEN;CT150,ST15#..RHD..GEN;AT151..LB..5F..GL..GEN198508-198702

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-20130iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198409

main53203-20170iAT151,CT150,ST150..SED..(GL,XL)..GEN; AT151,CT150..EUR; AT151,ST150..EUR,SAA; ST150..LB..GL..GEN198409-198508

*GIS

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-20040iAT151,CT150,ST150..GEN198409-198512

main53216-20070iAT151,CT150,ST150..SED..(GL,XL)..GEN; AT151,CT150..EUR; AT151,ST150..EUR,SAA; ST150..LB..GL..GEN198409-198508

*GIS

53209BRACE SUB-ASSY, HOOD LOCK

main53209-20030iST150..GL..TH198508-198608

main53209-20050iCT150;ST150..XL;AT151..RHD..4F;AT151..4FC..DX;AT151..LB..RHD..4FC;AT151..(3FC,5F)..XL;AT151..(3FC,4F,5F)..EUR;AT151..LHD..(4F,4FC)..(GL,STD,XL)198310-198409

main53209-20070iAT151,CT150,ST150..STD,XL; AT151,CT150..EUR198409-198508

main53209-20120iAT151,CT150,ST15#..EUR,GEN198508-198711

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-12060iAT151,CT150,ST15#198310-198711

53229ABRACKET, RADIATOR GRILLE MOUNTING

main53229-12030iAT151,CT150,ST15#198310-198711

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-20010iAT151..SED..RHD..MTM..XL198501-198508

THAILAND SPEC

main53268-20030iAT151..MTM..(EUR,GEN)198310-198711

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-20010iAT151,CT150,ST15#198310-198711

53289COVER, RADIATOR SIDE BAFFLE

main53289-20010iAT151..MTM198310-198711

53382BUMPER, HOOD, FRONT

main53382-20011×2iAT151,CT150,ST15#198310-198601

main53382-90A00×2iAT151,CT150,ST15#198601-198711

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-12010iAT151,CT150,ST15#..GEN,SAA,TH; AT151,CT150..EUR198508-198510

main53687-12020iAT151..FRG198608-198711

main53687-20010iCT150,ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH198510-198711

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53688-12010iAT151,CT150,ST15#198402-198711

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20460iAT151,CT150,ST15#198310-198711

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20540iAT151,CT150,ST15#198310-198711

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12180iAT151,CT150,ST15#198310-198711

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12160iAT151,CT150,ST15#198310-198711

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-20020iAT151..SED..LHD..5F..EUG;AT151,CT150,ST150..GEN,SAA198403-198508

HARSH ROAD PACKAGE

main53723-20030iAT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA198508-198603

HARSH ROAD PACKAGE

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-20020iAT151..SED..LHD..5F..EUG;AT151,CT150,ST150..GEN,SAA198403-198508

HARSH ROAD PACKAGE

main53723-20030iAT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA198508-198603

HARSH ROAD PACKAGE

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-20030iST150..GL..TH198508-198608

55101PANEL SUB-ASSY, DASH

main55101-20741iCT150..RHD..GEN198508-198510

main55101-20751iAT151,ST15#..RHD..ATM..GEN198510-198711

main55101-20761iAT151,ST150..LHD..MTM..GEN198508-198510

main55101-20771iAT151,CT150,ST150..LHD..MTM..GEN198510-198711

main55101-20781iAT151,ST150..LHD..3FC..GEN198508-198711

main55101-20791iAT151..RHD..5F..EUG198508-198510

main55101-20801iAT151..RHD..4FC198508-198711

main55101-20811iCT150..RHD..EUG198508-198510

main55101-20821iAT151,ST150..LHD..MTM..(EUR,SAA)198508-198510

main55101-20831iAT151,ST150..LHD..ATM..(EUR,SAA)198508-198711

main55101-20841iCT150..LHD..EUG198508-198510

main55101-20851iAT151,ST15#..RHD..MTM..GEN198508-198510

main55101-20861iAT151,ST15#..RHD..ATM..GEN198508-198510

main55101-20933iAT151,CT150,ST150..RHD..MTM..GEN198310-198508

main55101-20934iAT151,ST150..RHD..3FC198310-198508

main55101-20935iAT151,CT150,ST150..LHD..MTM..GEN198310-198508

main55101-20936iAT151,ST150..LHD..3FC..GEN198310-198508

main55101-20937iAT151..RHD..4FC198310-198508

main55101-20938iAT151,CT150..RHD..5F..EUG198310-198508

main55101-20939iAT151,ST150..LHD..ATM..(EUR,SAA)198310-198508

main55101-20940iAT151..LHD..4F; ST150..LHD..5F..GEN198310-198412

*ME

main55101-20942iAT151,ST150..MTM..TH198508-198608

main55101-20943iST150..3FC..TH198508-198608

55210INSULATOR ASSY, DASH PANEL

main55210-20120iAT151,CT150,ST150..RHD198310-198508

main55210-20121iAT151,CT150,ST15#..RHD198508-198711

main55210-20130iAT151,CT150,ST150..LHD198310-198508

main55210-20131iAT151,CT150,ST150..LHD198508-198711

55223AINSULATOR, DASH PANEL, OUTER

main55223-20050iCT150..RHD198310-198711

main55223-20060iCT150..LHD198310-198711

57161CROSSMEMBER, FRONT

main57161-12100iAT151,CT150,ST150..EUR,SAA; AT151,CT150,ST150..SED..(GL,XL)..GEN; ST150..LB..GL..GEN198310-198508

*GIS

main57161-20070iAT151,CT150,ST150..GEN198310-198508

57162AMEMBER, FRONT CROSS, REAR

main57162-12100iAT151,CT150,ST150..EUR,SAA; AT151,CT150,ST150..SED..(GL,XL)..GEN; ST150..LB..GL..GEN198310-198508

*GIS

main57162-20060iAT151,CT150,ST150..GEN198310-198508

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-12050iAT151,CT150,ST15#198310-198711

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-12010iAT151,CT150,ST15#198310-198711

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-20040iAT151,CT150,ST15#198310-198711

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-12060iAT151,CT150,ST150..EUR,SAA; AT151,CT150,ST150..SED..(GL,XL)..GEN; ST150..LB..GL..GEN198310-198508

*GIS

main57167-20060iAT151,CT150,ST150..GEN198310-198512

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-12060iAT151,CT150,ST150..EUR,TH; AT151..SED..RHD..GEN;CT150,ST15#..RHD..GEN;AT151..LB..5F..GL..GEN198508-198512

*GIS

main57168-20050iAT151,CT150,ST150..GEN198310-198512

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-20010iAT151,CT150,ST150..RHD..GEN198310-198402

main57301-20020iAT151..LB..RHD..4FC;AT151,CT150..RHD..5F..EUG198310-198402

main57301-20030iAT151,CT150,ST150..LHD..(EUR,SAA)198310-198402

main57301-20031iAT151,CT150,ST150..LHD198402-198711

main57301-20040iAT151,CT150,ST150..LHD..GEN198310-198402

main57301-20070iAT151,CT150,ST15#..RHD198402-198711

9011906101

main90119-06101

9011908413

main90119-08413

9011910353

main90119-10353

9011910354

main90119-10354

9048040007

main90480-40007

9095001025

main90950-01025

9095001060

main90950-01060

9095001189

main90950-01189

9095001241

main90950-01241

9095001356

main90950-01356

9095001374

main90950-01374

9412040800

main94120-40800

43 parts on this diagram · 1 diagram in section
