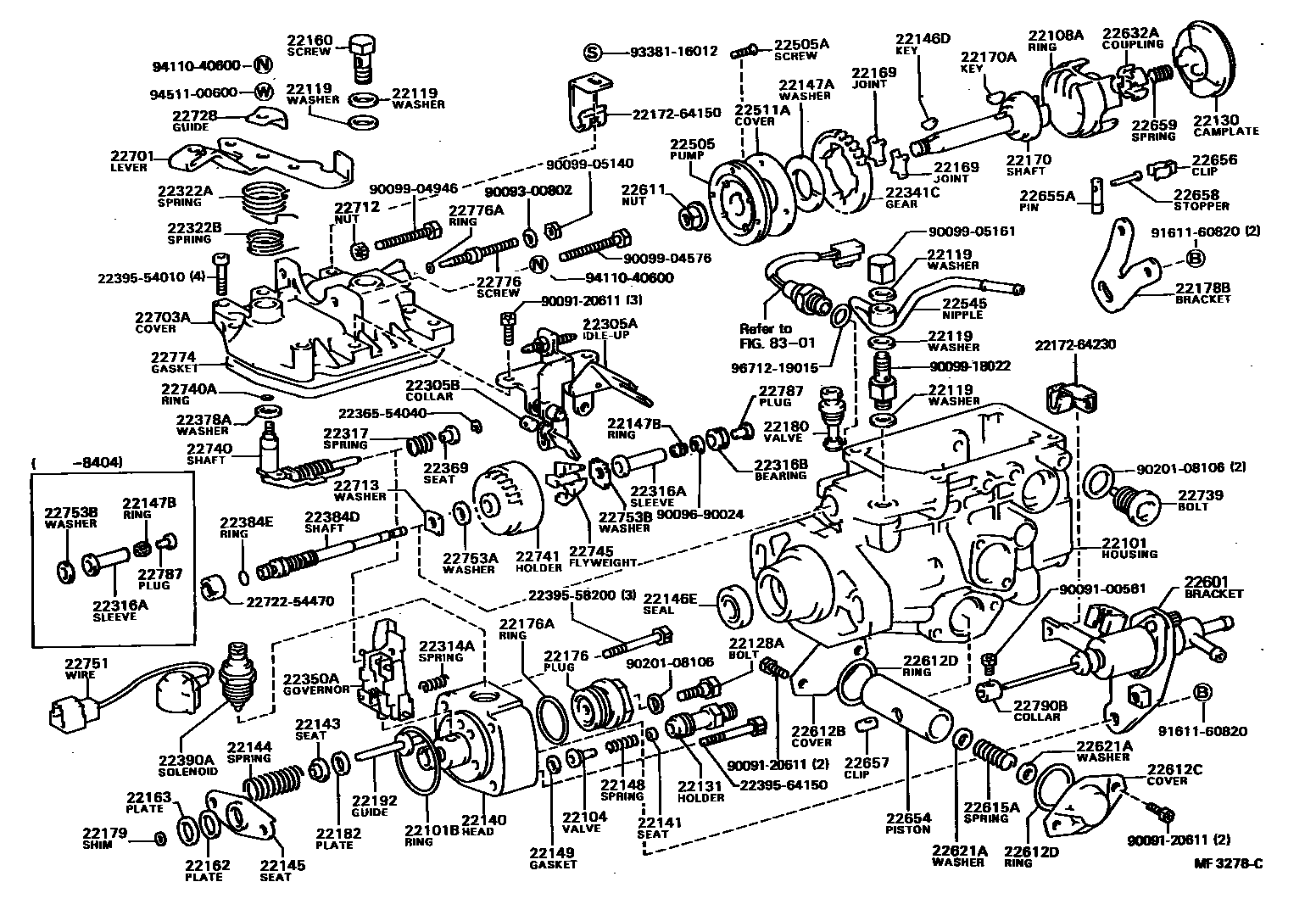

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
HIGH ALTITUDE SPEC
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9,T=1.9
T=2.0,T=2.0
T=2.1,T=2.1
T=2.2,T=2.2
T=2.3,T=2.3
T=2.4,T=2.4
T=2.5,T=2.5
T=2.6,T=2.6
T=2.7,T=2.7
T=2.8,T=2.8
T=2.9,T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5,T=0.5
T=0.8,T=0.8
T=1.0,T=1.0
T=1.2,T=1.2
T=1.5,T=1.5
T=1.8,T=1.8
T=2.0,T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22305AIDLE-UP SUB-ASSY
22305BCOLLAR(FOR IDLE-UP)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
HIGH ALTITUDE SPEC
MARK 28
ID=0.75
MARK 23,HIGH ALTITUDE SPEC
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.0
22322ASPRING, RETURN
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22322BSPRING, RETURN(INNER)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378WASHER, DRAIN SCREW
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22378AWASHER, GOVERNOR THRUST
HIGH ALTITUDE SPEC
22384DSHAFT, GOVERNOR
HIGH ALTITUDE SPEC
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)
22601BRACKET SUB-ASSY, IDLE UP
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=3.00,L=37.3
K=3.30,L=37.1
22621AWASHER, TIMER ADJUSTING
T=0.5,T=0.5
T=1.0,T=1.0
T=0.2,T=0.2
T=0.2,T=0.2
T=0.5
T=1.0,T=1.0
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
22659SPRING, COUPLING
22701LEVER SUB-ASSY, ADJUSTING
MARK"38"
MARK"39"
HIGH ALTITUDE SPEC,MARK"85"
HIGH ALTITUDE SPEC,MARK"86"
MARK"149"
MARK"150"
22703ACOVER SUB-ASSY, GOVERNOR
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05,T=1.05
T=1.25,T=1.25
T=1.45,T=1.45
T=1.65,T=1.65
T=1.85,T=1.85
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=4.3,L=4.3
L=4.5,L=4.5
L=4.7,L=4.7
L=4.9,L=4.9
L=5.1,L=5.1
L=5.3,L=5.3
L=5.5,L=5.5
L=5.7,L=5.7
L=3.3,L=3.3
L=3.4,L=3.4
L=3.5,W/HAC,L=3.5
L=3.6,W/HAC,L=3.6
L=3.7,W/HAC,L=3.7
L=3.8,W/HAC,L=3.8
L=3.9,W/HAC,L=3.9
L=4.0,W/HAC,L=4.0
L=4.1,W/HAC,L=4.1
L=3.0,L=3.0
L=3.1,L=3.1
L=3.2,L=3.2
L=2.2,W/O HAC,L=2.2
L=2.3,W/O HAC,L=2.3
L=2.4,W/O HAC,L=2.4
L=2.5,L=2.5
L=2.6,W/O HAC,L=2.6
L=2.7,L=2.7
L=2.8,W/O HAC,L=2.8
L=2.9,W/O HAC,L=2.9
22790COVER SUB-ASSY, TIMER
22790BCOLLAR(FOR TIMER COVER)
8301METER
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2239564150BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-64150
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009100561
main90091-00561
9009120611
main90091-20611
9009300802
main90093-00802
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009918022
main90099-18022
9020108106
main90201-08106
9161160820
main91611-60820
9338116012
main93381-16012
9411040600
main94110-40600
9451100600
main94511-00600
9671219015
main96712-19015
108 parts on this diagram · 5 diagrams in section
