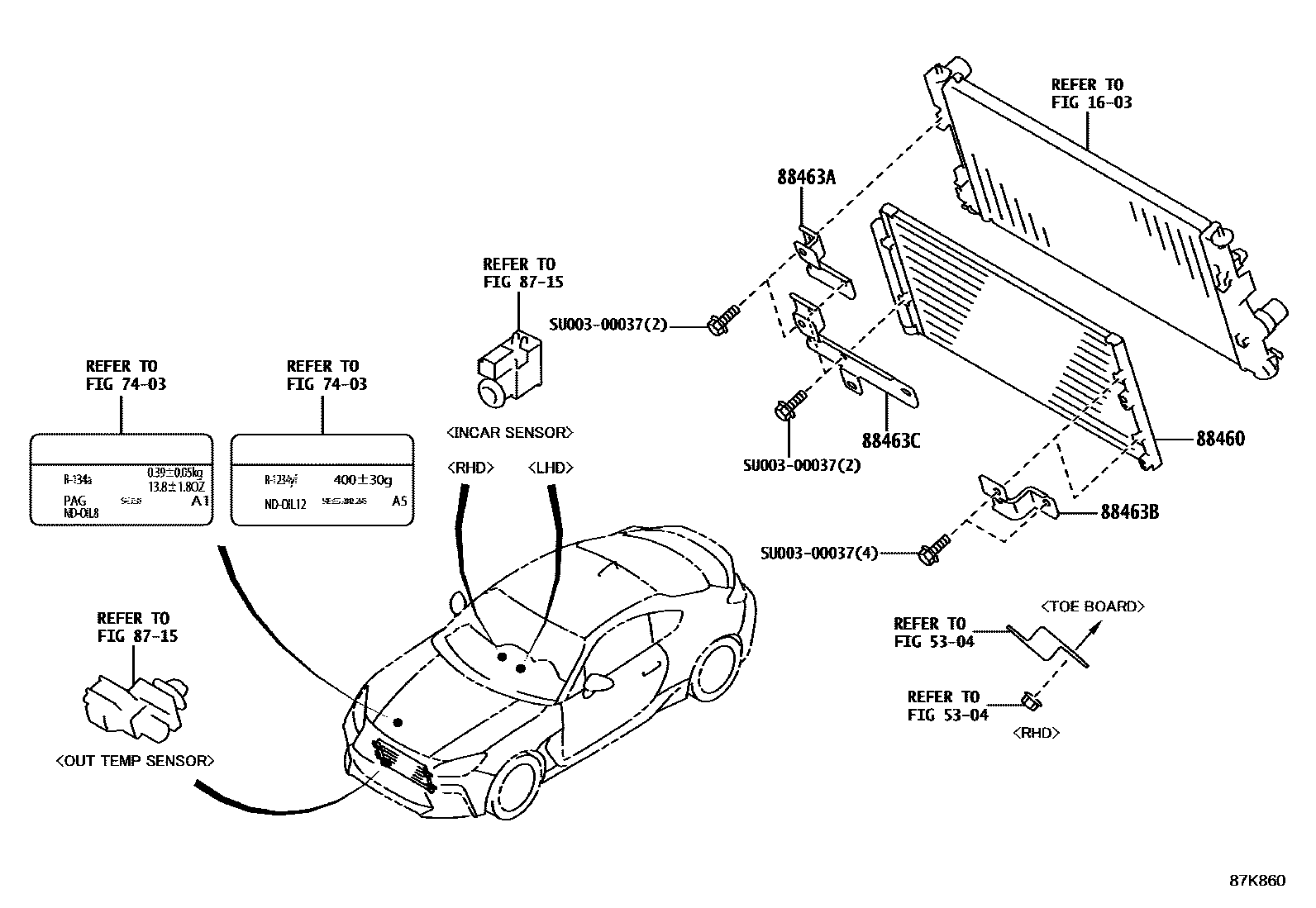

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1PIPING 0003 1PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88460CONDENSER ASSY, COOLER

mainSU00309287iZN8202203-202206

88463ABRACKET, COOLER CONDENSER, NO.2

mainSU00309293iZN8..D202408

88463BBRACKET, COOLER CONDENSER, NO.3

mainSU00309292×2iZN8..C202311

88463CBRACKET, COOLER CONDENSER, NO.4

mainSU00309294iZN8..D202408

SU00300037

mainSU003-00037

9 parts on this diagram · 3 diagrams in section
