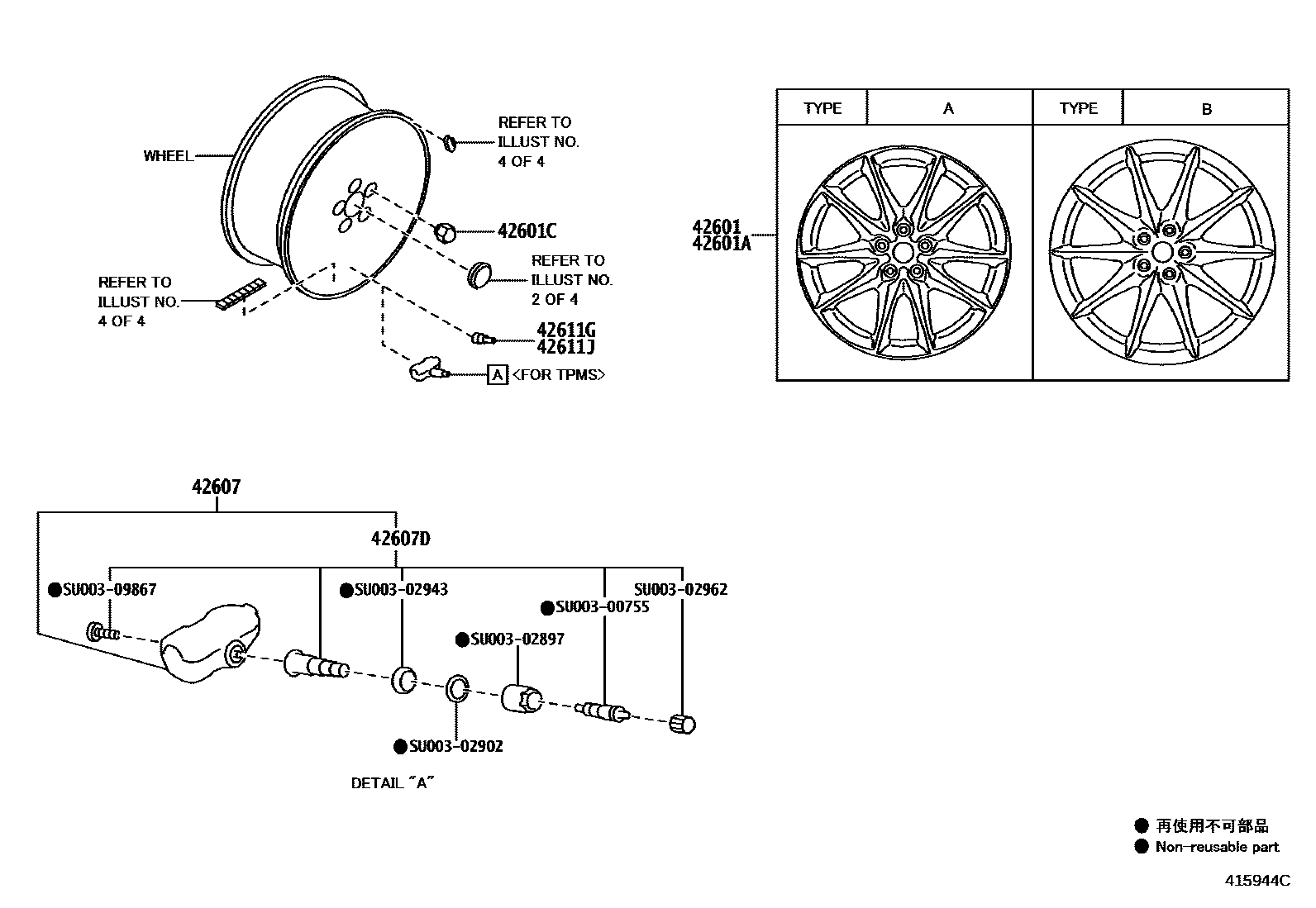

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1WHEEL HUB ORNAMENT 0003 1TIRE 0004 1BALANCE WEIGHT

42601WHEEL, DISC

mainSU00308843×4iZN8..BASE..B202206-202310

17X7.5J, #,TYPE A:REFER ILLUST.

mainSU00309471×4iZN8..(HIGH,ORA)..B202206-202310

18X7.5J, #,TYPE B:REFER ILLUST.

mainSU00312037×4iZN8..GRA202408

18X7.5J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

mainSU00308843iZN8..BASE202203-202206

17X7.5J, #,TYPE A:REFER ILLUST.

mainSU00309471iZN8..HIGH202203-202206

18X7.5J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

mainSU00310733×20iZN8202203-202206

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

mainSU00309860×4iZN8202203-202206

42607DVALVE, TIRE PRESSURE MONITOR

mainSU00310826×4iZN8202203-202206

42611GVALVE (FOR TUBELESS TIRE)

mainSU00300447×4iZN8202203-202206

42611JVALVE (FOR TUBELESS TIRE SPARE)

mainSU00300447iZN8..LHD202203-202206

SU00300755

mainSU003-00755

SU00302897

mainSU003-02897

SU00302902

mainSU003-02902

SU00302943

mainSU003-02943

SU00302962

mainSU003-02962

SU00309867

mainSU003-09867

13 parts on this diagram · 4 diagrams in section
