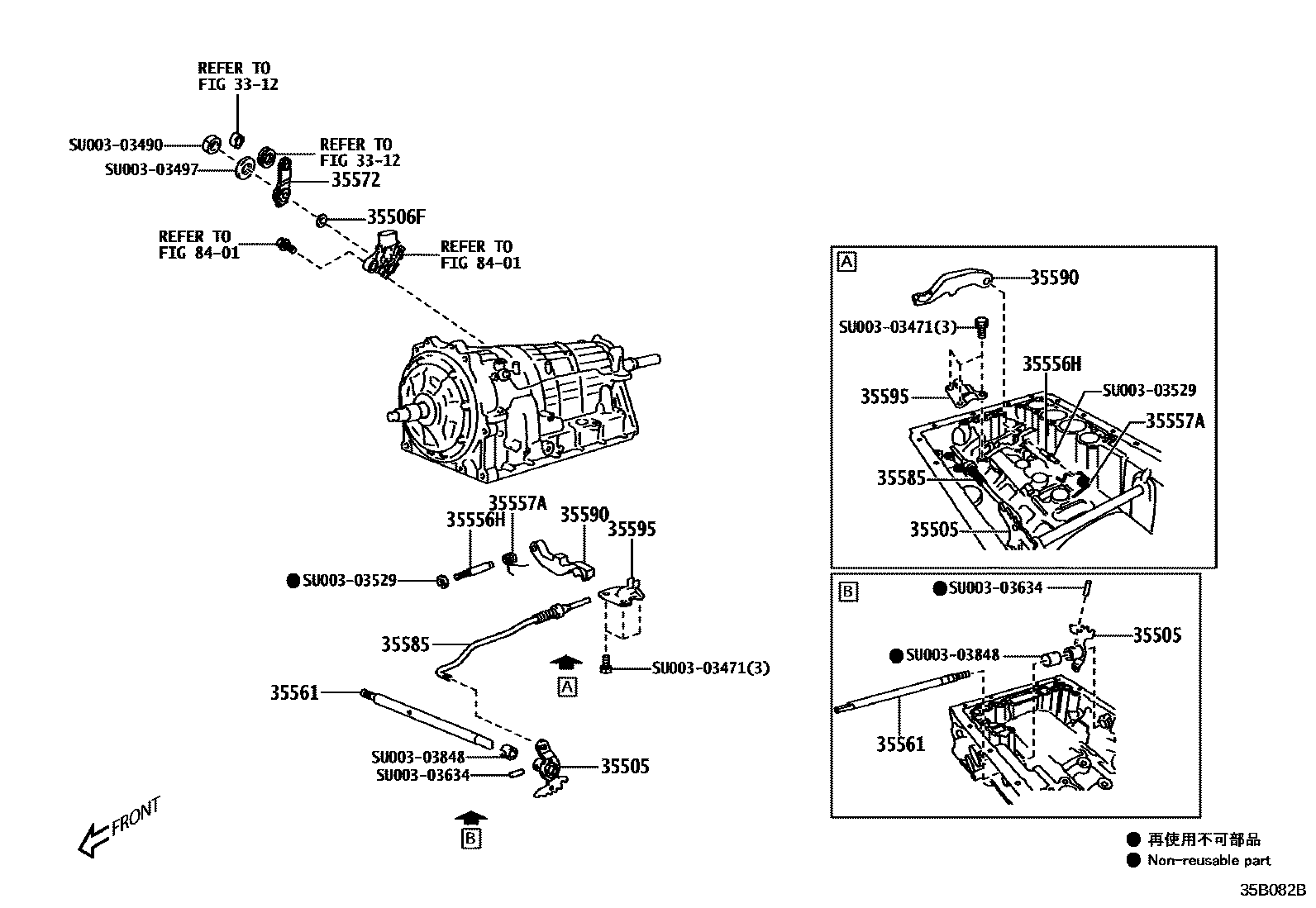

THROTTLE LINK & VALVE LEVER (ATM)

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35505LEVER SUB-ASSY, MANUAL VALVE

mainSU00303689iZN8..6FC202203-202206

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

mainSU00304322iZN8..6FC202203-202206

35556HSHAFT, PARKING LOCK PAWL

mainSU00303690iZN8..6FC202203-202206

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

mainSU00303846iZN8..6FC202203-202206

35561SHAFT, MANUAL VALVE LEVER

mainSU00303692iZN8..6FC202203-202206

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

mainSU00303693iZN8..6FC202203-202206

35585ROD, PARKING LOCK

mainSU00303688iZN8..6FC202203-202206

35590PAWL ASSY, PARKING LOCK

mainSU00303691iZN8..6FC202203-202206

35595BRACKET, PARKING LOCK PAWL

mainSU00303694iZN8..6FC202203-202206

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00303471

mainSU003-03471

SU00303490

mainSU003-03490

SU00303497

mainSU003-03497

SU00303529

mainSU003-03529

SU00303634

mainSU003-03634

SU00303848

mainSU003-03848

17 parts on this diagram · 1 diagram in section
