PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

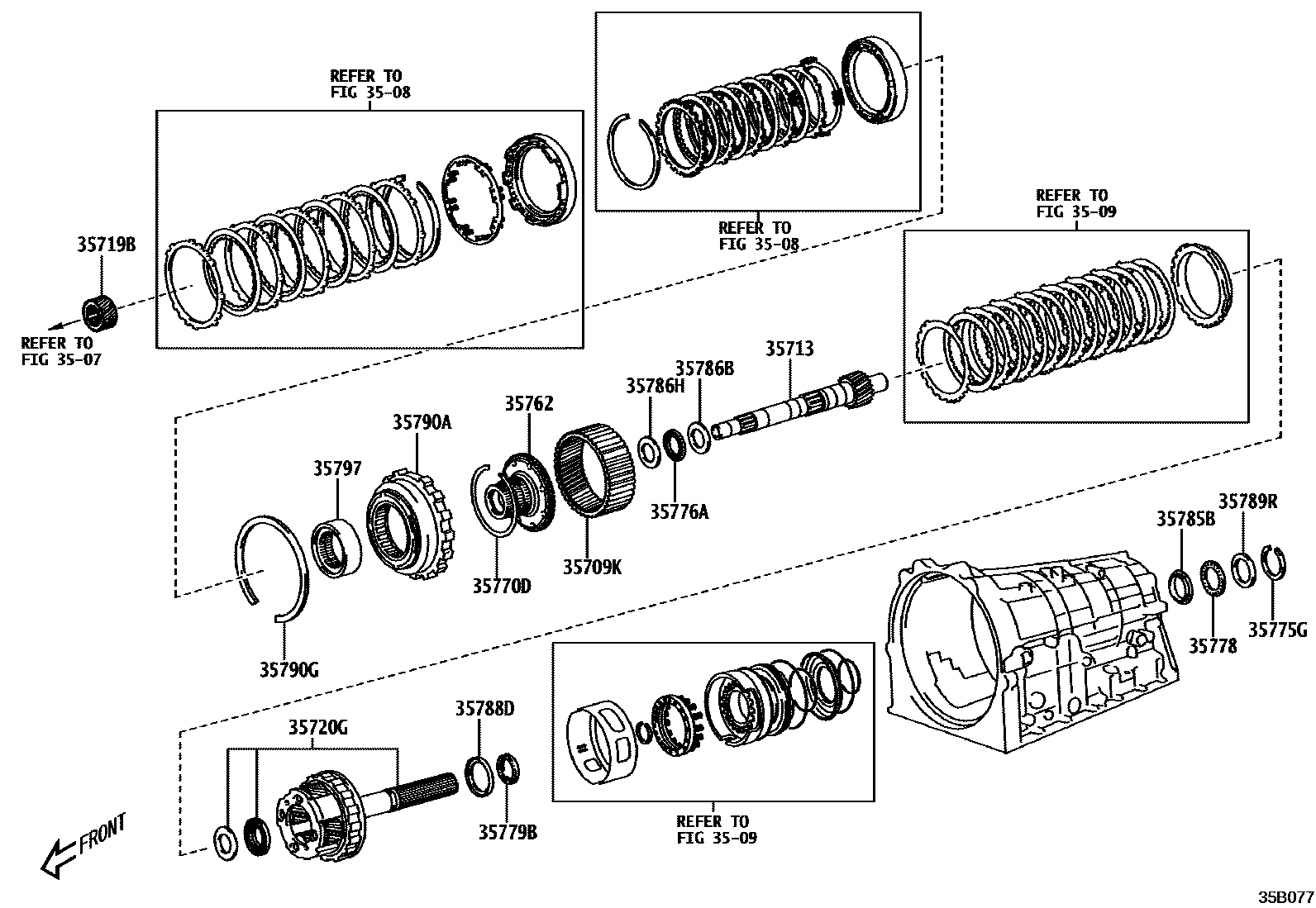

Parts diagram
3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
→ Go to FIG 35-07
3508CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
→ Go to FIG 35-08
3509BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
→ Go to FIG 35-09
35709KGEAR SUB-ASSY, REAR PLANETARY
mainSU00303808i202408
35713SHAFT, INTERMEDIATE
mainSU00303802i202311
35719BGEAR, PLANETARY SUN
mainSU00303803i202311
35720GGEAR ASSY, PLANETARY
mainSU00303807i202311
35762FLANGE, REAR PLANETARY RING GEAR
mainSU00303664i202311
35770DRING, HOLE SNAP NO.1
mainSU00303546i202311
35775GRING, SHAFT SNAP NO.1
mainSU00303534i202408
35776ARACE, THRUST BEARING, NO.6
mainSU00303511i202408
35778RACE, THRUST BEARING, NO.8
mainSU00303513i202311
35779BBEARING, THRUST NEEDLE ROLLER
mainSU00303515i202311
35785BRACE, THRUST BEARING, NO.4
mainSU00303832i202206-202310
35786BRACE, THRUST BEARING, NO.2
mainSU00303812i202408
35786HRACE, THRUST BEARING, NO.1
mainSU00303811i202311
35788DRACE, THRUST BEARING, NO.3
mainSU00303813i202206-202310
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
mainSU00303819i202206-202310
T=3.8; T=3.8,DESTINATION CODE=E1; T=3.8,DESTINATION CODE=E3; T=3.8,DESTINATION CODE=EC; T=3.8,DESTINATION CODE=EK; T=3.8,DESTINATION CODE=ER; T=3.8,DESTINATION CODE=K2; T=3.8,DESTINATION CODE=KA; T=3.8,DESTINATION CODE=KC; T=3.8,DESTINATION CODE=KF; T=3.8,DESTINATION CODE=KG; T=3.8,DESTINATION CODE=KR; T=3.8,DESTINATION CODE=KS; T=3.8,DESTINATION CODE=KV; T=3.8,DESTINATION CODE=KY
mainSU00303820i202408
T=3.9; T=3.9,DESTINATION CODE=E1; T=3.9,DESTINATION CODE=E3; T=3.9,DESTINATION CODE=K2; T=3.9,DESTINATION CODE=KA; T=3.9,DESTINATION CODE=KC; T=3.9,DESTINATION CODE=KF; T=3.9,DESTINATION CODE=KG; T=3.9,DESTINATION CODE=KR; T=3.9,DESTINATION CODE=KS; T=3.9,DESTINATION CODE=KV; T=3.9,DESTINATION CODE=KY
mainSU00303821i202408
T=4.0; T=4.0,DESTINATION CODE=E1; T=4.0,DESTINATION CODE=E3; T=4.0,DESTINATION CODE=K2; T=4.0,DESTINATION CODE=KA; T=4.0,DESTINATION CODE=KC; T=4.0,DESTINATION CODE=KF; T=4.0,DESTINATION CODE=KG; T=4.0,DESTINATION CODE=KR; T=4.0,DESTINATION CODE=KS; T=4.0,DESTINATION CODE=KV; T=4.0,DESTINATION CODE=KY
mainSU00303822i202408
T=4.1; T=4.1,DESTINATION CODE=E1; T=4.1,DESTINATION CODE=E3; T=4.1,DESTINATION CODE=K2; T=4.1,DESTINATION CODE=KA; T=4.1,DESTINATION CODE=KC; T=4.1,DESTINATION CODE=KF; T=4.1,DESTINATION CODE=KG; T=4.1,DESTINATION CODE=KR; T=4.1,DESTINATION CODE=KS; T=4.1,DESTINATION CODE=KV; T=4.1,DESTINATION CODE=KY
mainSU00303823i202206-202310
T=4.2; T=4.2,DESTINATION CODE=E1; T=4.2,DESTINATION CODE=E3; T=4.2,DESTINATION CODE=EC; T=4.2,DESTINATION CODE=EK; T=4.2,DESTINATION CODE=ER; T=4.2,DESTINATION CODE=K2; T=4.2,DESTINATION CODE=KA; T=4.2,DESTINATION CODE=KC; T=4.2,DESTINATION CODE=KF; T=4.2,DESTINATION CODE=KG; T=4.2,DESTINATION CODE=KR; T=4.2,DESTINATION CODE=KS; T=4.2,DESTINATION CODE=KV; T=4.2,DESTINATION CODE=KY
mainSU00303824i202408
T=3.85; T=3.85,DESTINATION CODE=E1; T=3.85,DESTINATION CODE=E3; T=3.85,DESTINATION CODE=K2; T=3.85,DESTINATION CODE=KA; T=3.85,DESTINATION CODE=KC; T=3.85,DESTINATION CODE=KF; T=3.85,DESTINATION CODE=KG; T=3.85,DESTINATION CODE=KR; T=3.85,DESTINATION CODE=KS; T=3.85,DESTINATION CODE=KV; T=3.85,DESTINATION CODE=KY
mainSU00303825i202206-202310
T=3.95; T=3.95,DESTINATION CODE=E1; T=3.95,DESTINATION CODE=E3; T=3.95,DESTINATION CODE=EC; T=3.95,DESTINATION CODE=EK; T=3.95,DESTINATION CODE=ER; T=3.95,DESTINATION CODE=K2; T=3.95,DESTINATION CODE=KA; T=3.95,DESTINATION CODE=KC; T=3.95,DESTINATION CODE=KF; T=3.95,DESTINATION CODE=KG; T=3.95,DESTINATION CODE=KR; T=3.95,DESTINATION CODE=KS; T=3.95,DESTINATION CODE=KV; T=3.95,DESTINATION CODE=KY
mainSU00303826i202206-202310
T=4.05; T=4.05,DESTINATION CODE=E1; T=4.05,DESTINATION CODE=E3; T=4.05,DESTINATION CODE=EC; T=4.05,DESTINATION CODE=EK; T=4.05,DESTINATION CODE=ER; T=4.05,DESTINATION CODE=K2; T=4.05,DESTINATION CODE=KA; T=4.05,DESTINATION CODE=KC; T=4.05,DESTINATION CODE=KF; T=4.05,DESTINATION CODE=KG; T=4.05,DESTINATION CODE=KR; T=4.05,DESTINATION CODE=KS; T=4.05,DESTINATION CODE=KV; T=4.05,DESTINATION CODE=KY
mainSU00303827i202408
T=4.15; T=4.15,DESTINATION CODE=E1; T=4.15,DESTINATION CODE=E3; T=4.15,DESTINATION CODE=K2; T=4.15,DESTINATION CODE=KA; T=4.15,DESTINATION CODE=KC; T=4.15,DESTINATION CODE=KF; T=4.15,DESTINATION CODE=KG; T=4.15,DESTINATION CODE=KR; T=4.15,DESTINATION CODE=KS; T=4.15,DESTINATION CODE=KV; T=4.15,DESTINATION CODE=KY
mainSU00303828i202408
T=4.25; T=4.25,DESTINATION CODE=E1; T=4.25,DESTINATION CODE=E3; T=4.25,DESTINATION CODE=K2; T=4.25,DESTINATION CODE=KA; T=4.25,DESTINATION CODE=KC; T=4.25,DESTINATION CODE=KF; T=4.25,DESTINATION CODE=KG; T=4.25,DESTINATION CODE=KR; T=4.25,DESTINATION CODE=KS; T=4.25,DESTINATION CODE=KV; T=4.25,DESTINATION CODE=KY
mainSU00303829i202206-202310
T=4.30; T=4.30,DESTINATION CODE=E1; T=4.30,DESTINATION CODE=E3; T=4.30,DESTINATION CODE=EC; T=4.30,DESTINATION CODE=EK; T=4.30,DESTINATION CODE=ER; T=4.30,DESTINATION CODE=K2; T=4.30,DESTINATION CODE=KA; T=4.30,DESTINATION CODE=KC; T=4.30,DESTINATION CODE=KF; T=4.30,DESTINATION CODE=KG; T=4.30,DESTINATION CODE=KR; T=4.30,DESTINATION CODE=KS; T=4.30,DESTINATION CODE=KV; T=4.30,DESTINATION CODE=KY
mainSU00303830i202408
T=4.35; T=4.35,DESTINATION CODE=E1; T=4.35,DESTINATION CODE=E3; T=4.35,DESTINATION CODE=K2; T=4.35,DESTINATION CODE=KA; T=4.35,DESTINATION CODE=KC; T=4.35,DESTINATION CODE=KF; T=4.35,DESTINATION CODE=KG; T=4.35,DESTINATION CODE=KR; T=4.35,DESTINATION CODE=KS; T=4.35,DESTINATION CODE=KV; T=4.35,DESTINATION CODE=KY
35790ACLUTCH ASSY, 1 WAY
mainSU00303810i202203-202206
35790GHOLE SNAP RING (FOR 1WAY CLUTCH)
mainSU00303545i202203-202206
35797RACE, 1 WAY CLUTCH INNER
mainSU00303835i202203-202206

21 parts on this diagram · 1 diagram in section
