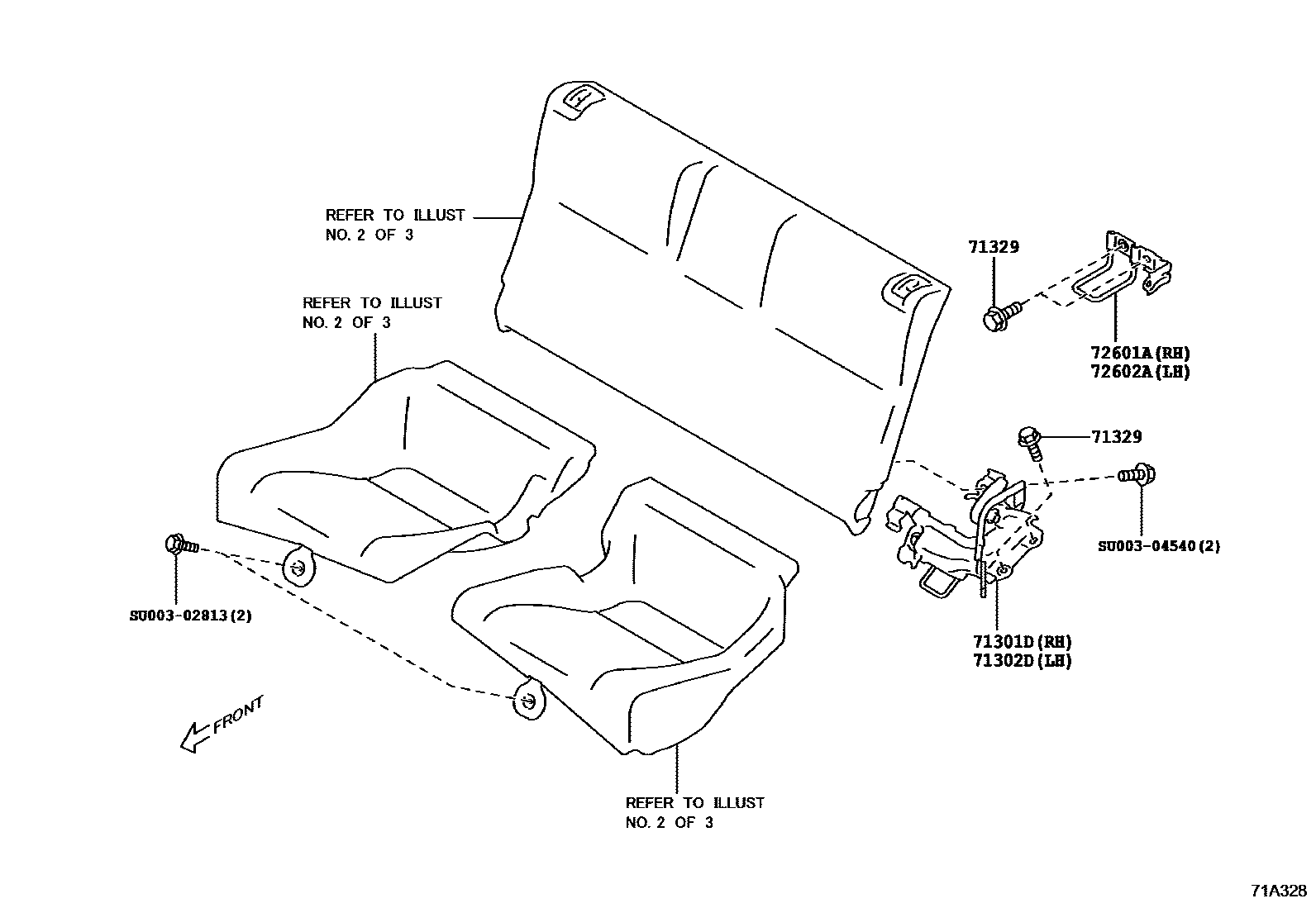

REAR SEAT & SEAT TRACK

0001 1HINGE & LOCK 0002 1SEAT BACK & CUSHION 0003 1CHILD SEAT TETHER ANCHOR BRAC

71301DHINGE SUB-ASSY, REAR SEAT, RH

mainSU00301862iZN6..H201903-202104

71302DHINGE SUB-ASSY, REAR SEAT, LH

mainSU00301863iZN6..H201903-202104

71329BOLT, REAR SEAT HINGE

mainSU00302810×8iZN6..H201903-202104

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

mainSU00301864iZN6..H201903-202104

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

mainSU00301865iZN6201710-201803

SU00302813

mainSU003-02813

SU00304540

mainSU003-04540

7 parts on this diagram · 3 diagrams in section
