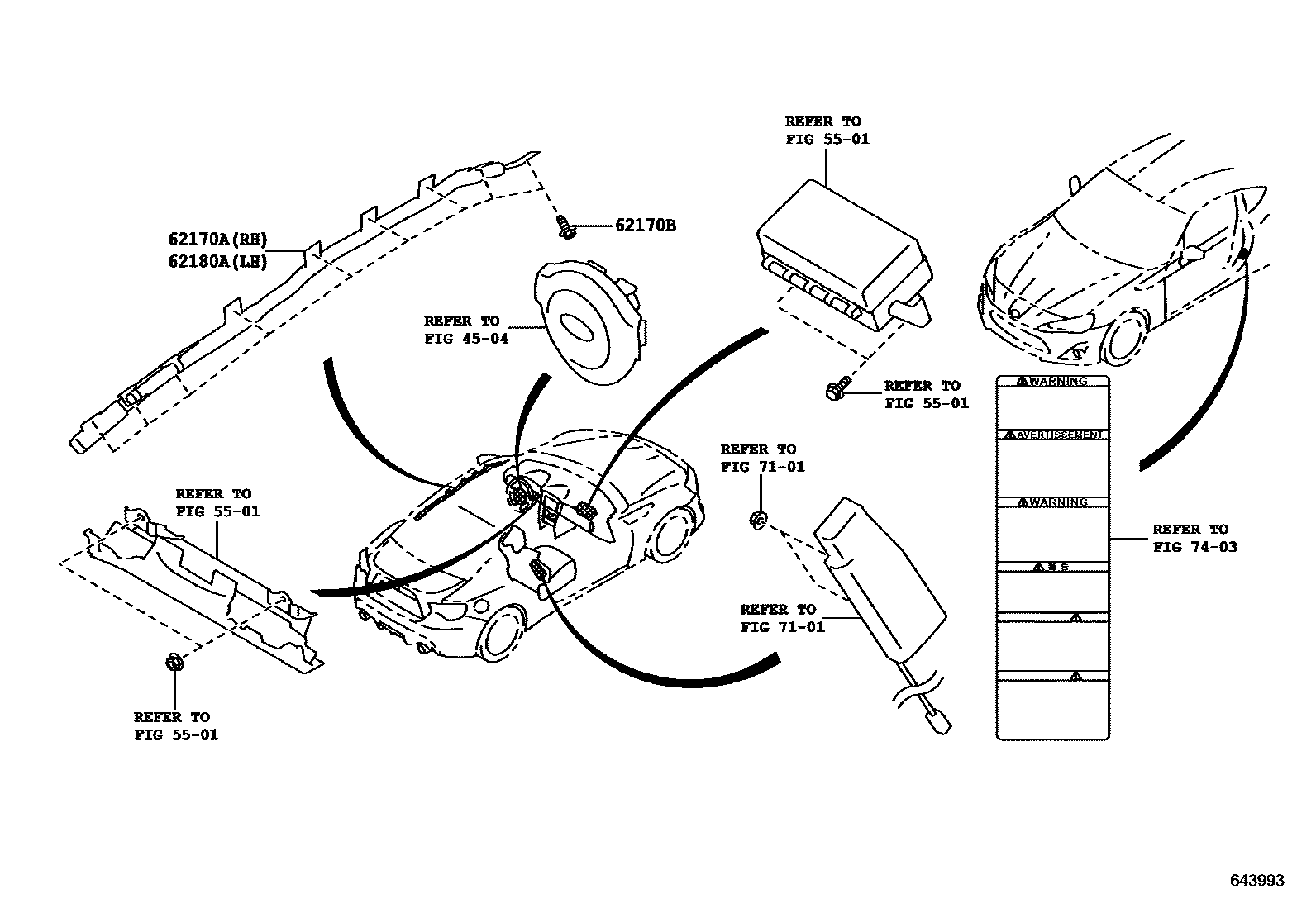

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

4504STEERING WHEEL

→ Go to FIG 45-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

mainSU00303424iZN6201710-201803

62170BBOLT, W/WASHER

mainSU00300070×18iZN6..G201804-201904

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

mainSU00303425iZN6201608-201709

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

7 parts on this diagram · 3 diagrams in section
