3102CLUTCH PEDAL & FLEXIBLE HOSE

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

mainSU00300977i201903-202104

mainSU00300978i201608-201709

47101BBUSH(FOR BRAKE PEDAL)

mainSU00300967×2i201804-201904

mainSU00302123×2i201608-201709

47110SUPPORT ASSY, BRAKE PEDAL

mainSU00300956i201804-201904

OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AK; OPTION CODE=AM; OPTION CODE=EC; OPTION CODE=EF; OPTION CODE=EJ; OPTION CODE=EM; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=IH; OPTION CODE=IJ; OPTION CODE=IK; OPTION CODE=IM; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=NH; OPTION CODE=NJ; OPTION CODE=NK; OPTION CODE=NM; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=TH; OPTION CODE=TJ; OPTION CODE=TK; OPTION CODE=TM; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=VH; OPTION CODE=VJ; OPTION CODE=VK; OPTION CODE=VM; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XK; OPTION CODE=XM

mainSU00300957i201608-201709

OPTION CODE=AA; OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AG; OPTION CODE=AI; OPTION CODE=AN; OPTION CODE=AY; OPTION CODE=BA; OPTION CODE=BD; OPTION CODE=BF; OPTION CODE=BG; OPTION CODE=BI; OPTION CODE=BN; OPTION CODE=BY; OPTION CODE=CD; OPTION CODE=CF; OPTION CODE=CI; OPTION CODE=CY; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=PA; OPTION CODE=PC; OPTION CODE=PD; OPTION CODE=PF; OPTION CODE=QA; OPTION CODE=QC; OPTION CODE=QD; OPTION CODE=QF; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=UA; OPTION CODE=UC; OPTION CODE=UD; OPTION CODE=UF; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=WA; OPTION CODE=WC; OPTION CODE=WD; OPTION CODE=WF; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XI; OPTION CODE=XY

mainSU00300959i201710-201803

mainSU00307304i201804-201904

mainSU00300954i201903-202104

OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AV; OPTION CODE=AW; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=IV; OPTION CODE=IW

mainSU00300955i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

mainSU00300958i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

mainSU00307303i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

47121PAD, BRAKE PEDAL

mainSU00300970i201608-201709

OPTION CODE=AA; OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AG; OPTION CODE=AI; OPTION CODE=AN; OPTION CODE=AY; OPTION CODE=BA; OPTION CODE=BD; OPTION CODE=BF; OPTION CODE=BG; OPTION CODE=BI; OPTION CODE=BN; OPTION CODE=BY; OPTION CODE=CD; OPTION CODE=CF; OPTION CODE=CI; OPTION CODE=CY; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=PA; OPTION CODE=PC; OPTION CODE=PD; OPTION CODE=PF; OPTION CODE=QA; OPTION CODE=QC; OPTION CODE=QD; OPTION CODE=QF; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=UA; OPTION CODE=UC; OPTION CODE=UD; OPTION CODE=UF; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=WA; OPTION CODE=WC; OPTION CODE=WD; OPTION CODE=WF; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XI; OPTION CODE=XY

mainSU00300971i201903-202104

OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AK; OPTION CODE=AM; OPTION CODE=EC; OPTION CODE=EF; OPTION CODE=EJ; OPTION CODE=EM; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=IH; OPTION CODE=IJ; OPTION CODE=IK; OPTION CODE=IM; OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=NH; OPTION CODE=NJ; OPTION CODE=NK; OPTION CODE=NM; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=TH; OPTION CODE=TJ; OPTION CODE=TK; OPTION CODE=TM; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=VH; OPTION CODE=VJ; OPTION CODE=VK; OPTION CODE=VM; OPTION CODE=XA; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XH; OPTION CODE=XK; OPTION CODE=XM

mainSU00300961i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

mainSU00300962i201608-201709

OPTION CODE=AJ; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AX; OPTION CODE=AZ; OPTION CODE=BJ; OPTION CODE=BS; OPTION CODE=BU; OPTION CODE=BX; OPTION CODE=BZ; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=QS; OPTION CODE=QU

47131CUSHION(FOR STOP LAMP SWITCH)

mainSU00300983i201710-201803

mainSU00300984i201804-201904

47264APIN(FOR PUSH ROD)

mainSU00302938i201608-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300075

mainSU003-00075

SU00302788

mainSU003-02788

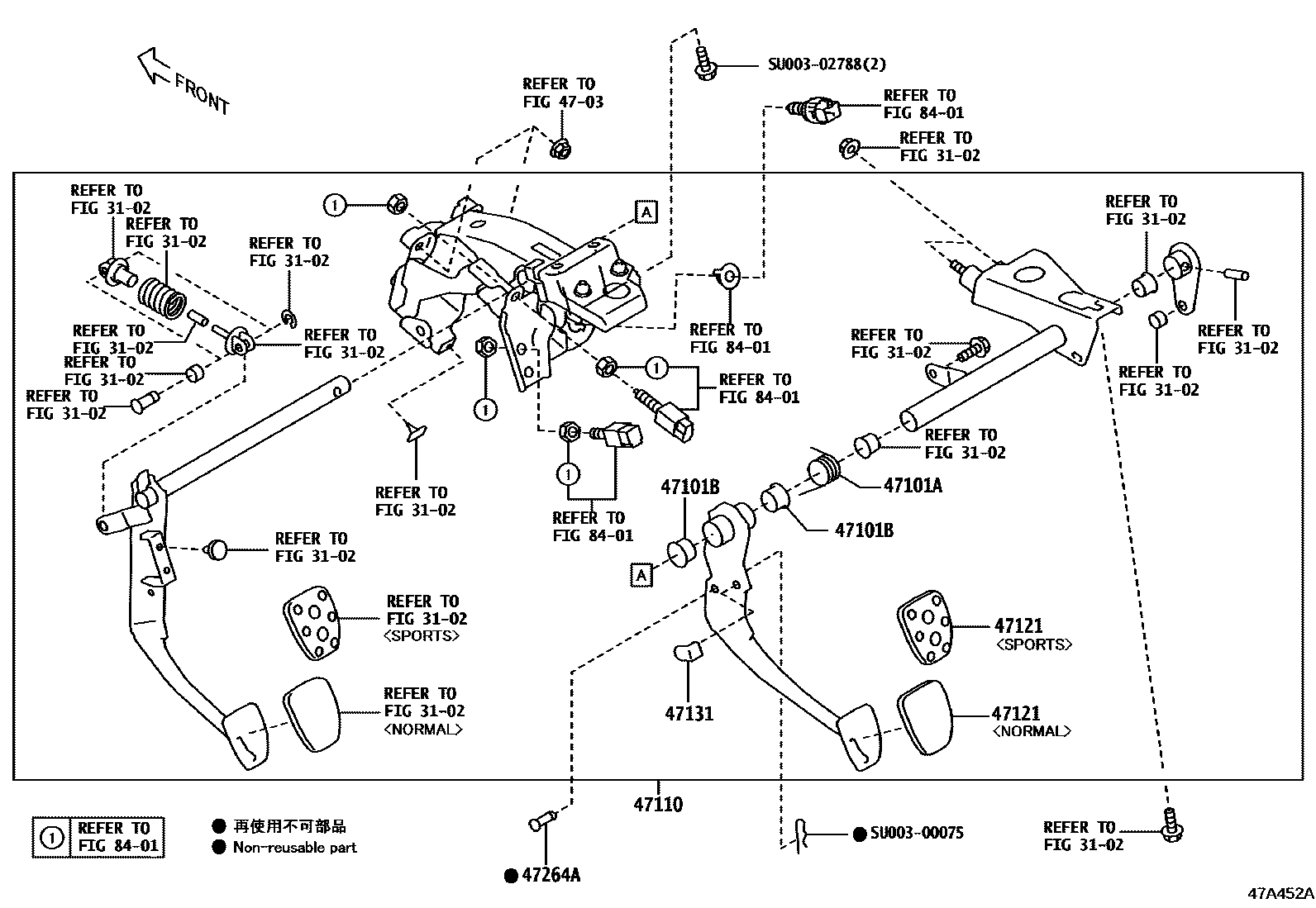

BRAKE PEDAL & BRACKET
