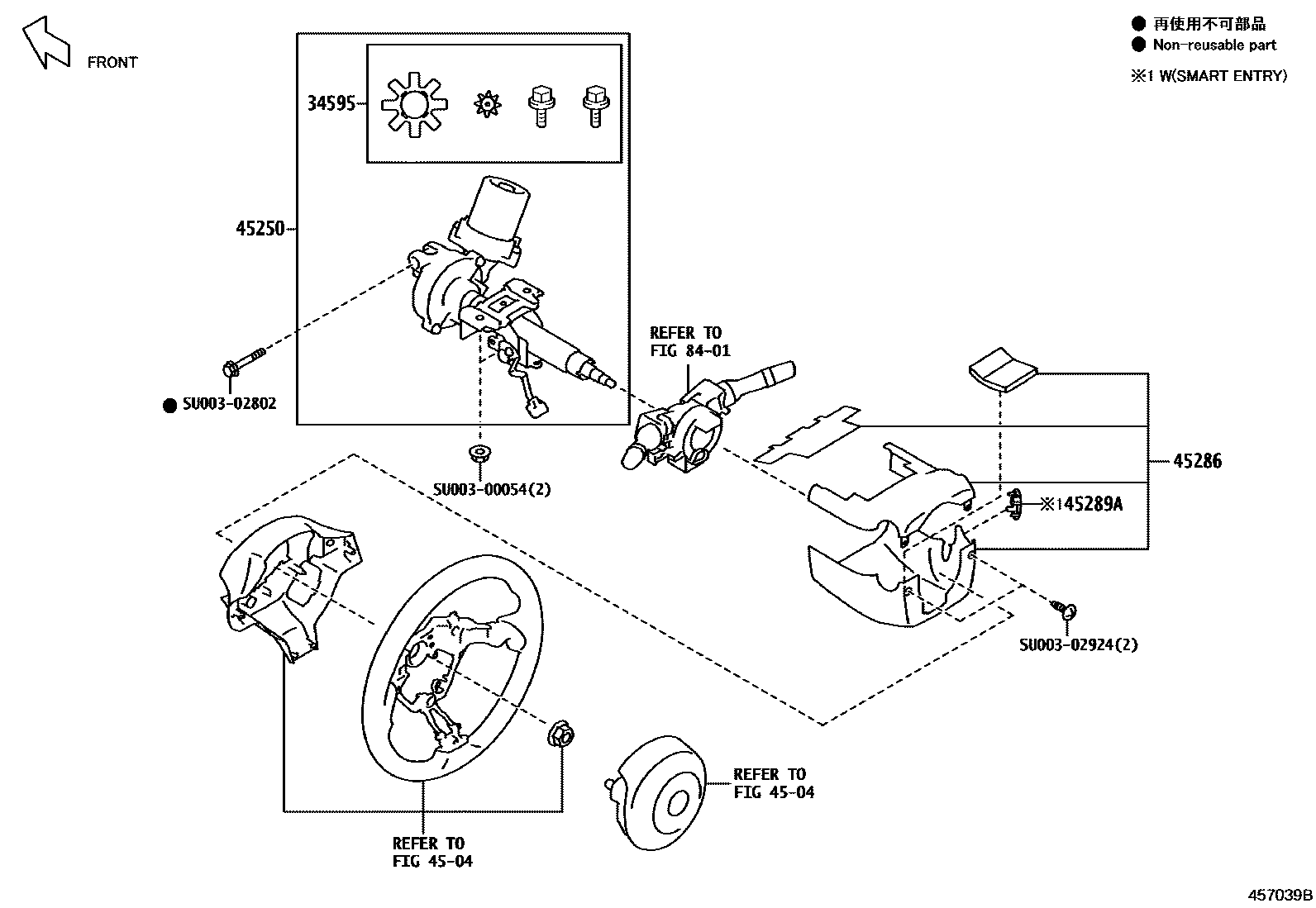

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1W(SMART ENTRY) 0006 1W/O(SMART ENTRY)

34595REPAIR KIT, DAMPER

mainSU00311027iZN6..G201608-202104

4504STEERING WHEEL

→ Go to FIG 45-04

45250COLUMN ASSY, STEERING

mainSU00306105iZN6..RHD..(HI,SPE)201608-201709

mainSU00306106iZN6..RHD..BASE201608-201709

mainSU00306813iZN6..LHD..(HI,SPE)201608-201709

mainSU00306814iZN6..LHD..BASE201608-201709

mainSU00307690iZN6..RHD..(HI,SPE1)..H201710-201905

mainSU00307691iZN6..RHD..BASE..H201710-201905

mainSU00307692iZN6..LHD..(HI,SPE1)..H201710-201905

mainSU00307693iZN6..LHD..BASE201710-201905

mainSU00308227iZN6..RHD..(HI,SPE1)201905-202104

mainSU00308228iZN6..RHD..BASE201905-202104

mainSU00308229iZN6..LHD..(HI,SPE1)201905-202104

mainSU00308230iZN6..LHD..BASE201905-202104

45286COVER, STEERING COLUMN

mainSU00307205iZN6201608-202104

BLACK

45289ASUPPORT, STEERING COLUMN COVER

mainSU00300864iZN6..HI,SPE201608-202104

BLACK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300054

mainSU003-00054

SU00302802

mainSU003-02802

SU00302924

mainSU003-02924

9 parts on this diagram · 6 diagrams in section
