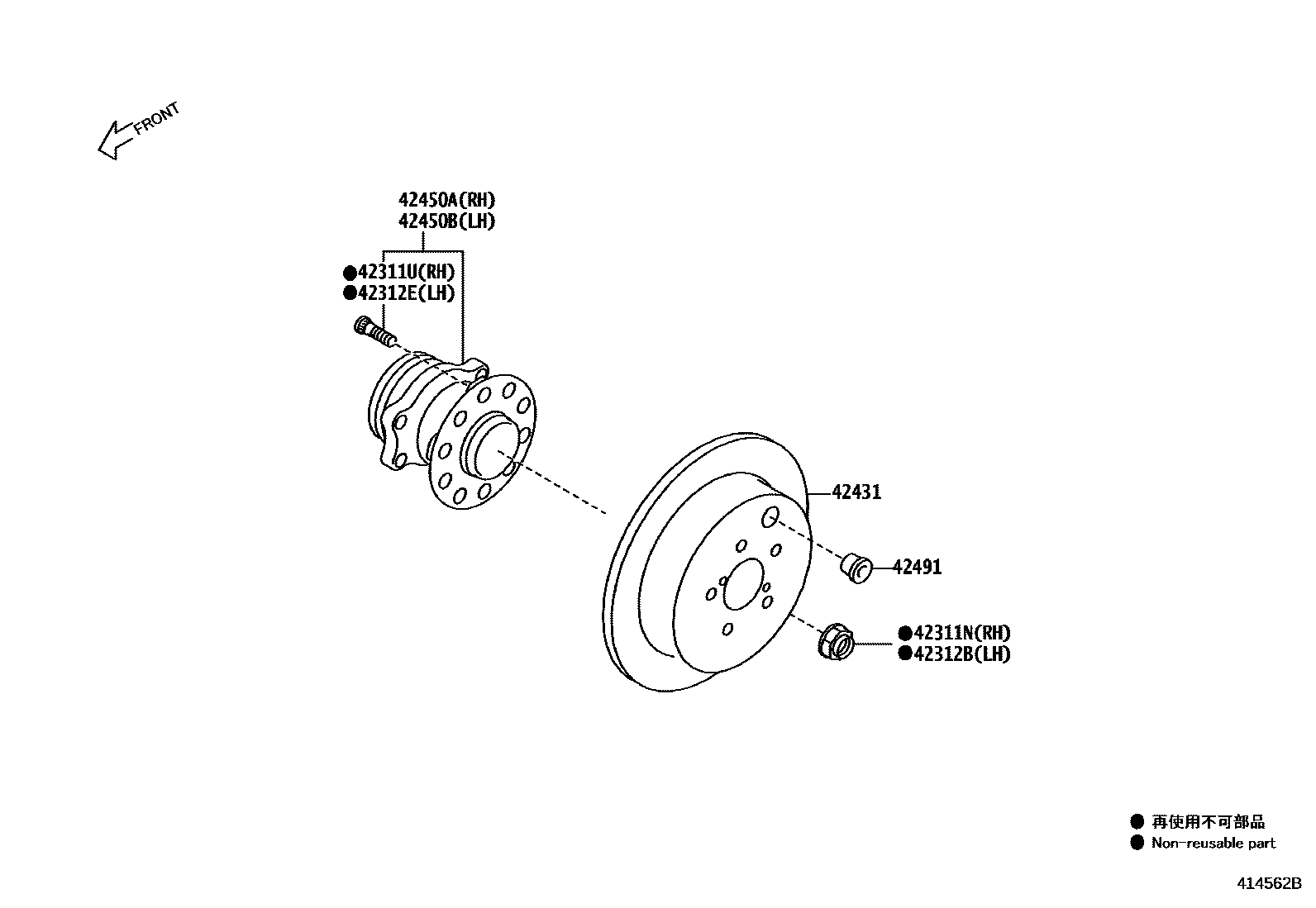

REAR AXLE SHAFT & HUB
42311NNUT(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42312BNUT(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42431DISC, REAR
mainSU00300638×2iZN6..6FC..SPE;ZN6..LHD..6F..SPE;ZN6..LHD..6FC..HI..EUR; ZN6..RHD..HI;ZN6..RHD..6F..SPE;ZN6..LHD..6F..HI..EUR201608-201709
OPTION CODE=NA; OPTION CODE=NC; OPTION CODE=ND; OPTION CODE=NF; OPTION CODE=PA; OPTION CODE=PC; OPTION CODE=PD; OPTION CODE=PF; OPTION CODE=TA; OPTION CODE=TC; OPTION CODE=TD; OPTION CODE=TF; OPTION CODE=UA; OPTION CODE=UC; OPTION CODE=UD; OPTION CODE=UF; OPTION CODE=VA; OPTION CODE=VC; OPTION CODE=VD; OPTION CODE=VF; OPTION CODE=WA; OPTION CODE=WC; OPTION CODE=WD; OPTION CODE=WF
OPTION CODE=AD; OPTION CODE=AF; OPTION CODE=AK; OPTION CODE=AM; OPTION CODE=AS; OPTION CODE=AU; OPTION CODE=AV; OPTION CODE=AW; OPTION CODE=XA; OPTION CODE=XD; OPTION CODE=XF; OPTION CODE=XH; OPTION CODE=XK; OPTION CODE=XM
OPTION CODE=EC; OPTION CODE=EF; OPTION CODE=EJ; OPTION CODE=EM; OPTION CODE=IA; OPTION CODE=IC; OPTION CODE=ID; OPTION CODE=IF; OPTION CODE=IH; OPTION CODE=IJ; OPTION CODE=IK; OPTION CODE=IM; OPTION CODE=IS; OPTION CODE=IU; OPTION CODE=IV; OPTION CODE=IW
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
8 parts on this diagram · 3 diagrams in section
