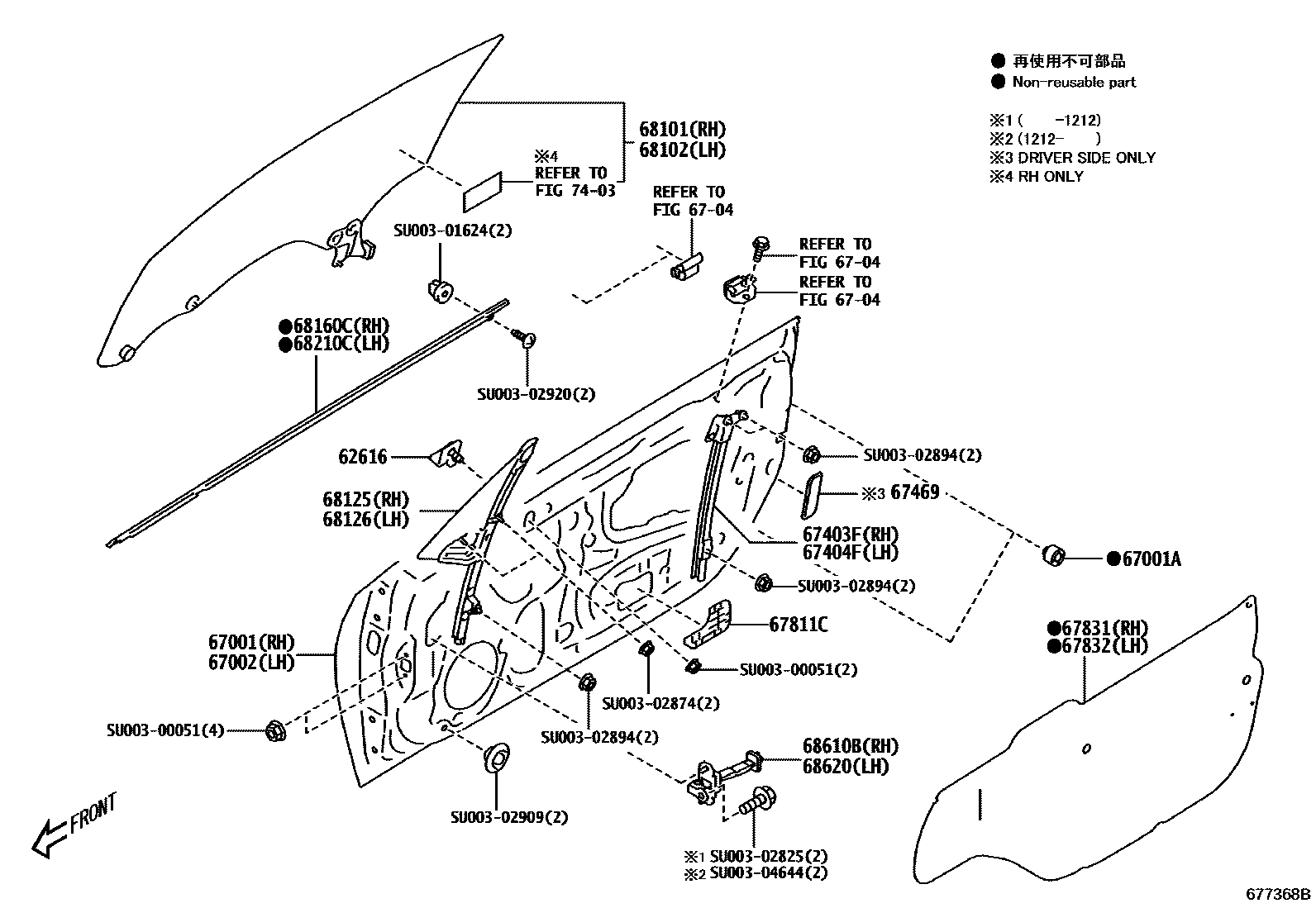

FRONT DOOR PANEL & GLASS

62616STOPPER, FRONT DOOR SASH

mainSU00304118×2i201204-201308

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00301558i201307-201404

67001ACUSHION, FRONT DOOR PANEL

mainSU00304136×4i201204-201308

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00301559i201504-201607

6704FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-04

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00301608i201504-201607

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00301609i201204-201308

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625i201204-201308

67811CCOVER, FRONT DOOR HOLE

mainSU00301604i201307-201404

mainSU00301605i201204-201308

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00301610i201307-201404

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00301611i201504-201607

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0001i201204-201307

DESTINATION CODE=EN; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KE

mainSU003G0003i201204-201307

DESTINATION CODE=EK; DESTINATION CODE=ER

mainSU003G0019i201405-201503

DESTINATION CODE=EN; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY

mainSU003G0021i201307-201308

DESTINATION CODE=EK; DESTINATION CODE=ER

mainSU003G0024i201604-201607

DESTINATION CODE=EN; DESTINATION CODE=K2; DESTINATION CODE=K8; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KE; DESTINATION CODE=KY

mainSU003G0026i201604-201607

DESTINATION CODE=EK; DESTINATION CODE=ER

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0002i201204-201307

mainSU003G0020i201307-201308

mainSU003G0025i201604-201607

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0010i201204-201308

mainSU003G0022i201405-201503

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0011i201204-201308

mainSU003G0023i201504-201607

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00304334i201204-201207

mainSU00304531i201207-201304

mainSU00304771i201304-201308

mainSU00305207i201312-201404

mainSU00305659i201504-201607

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00304335i201204-201207

mainSU00304532i201207-201304

mainSU00304772i201307-201312

mainSU00305208i201312-201404

mainSU00305660i201405-201503

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00301567i201307-201404

68620CHECK ASSY, FRONT DOOR, LH

mainSU00301567i201307-201404

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

SU00300051

mainSU003-00051

SU00301624

mainSU003-01624

SU00302825

mainSU003-02825

SU00302874

mainSU003-02874

SU00302894

mainSU003-02894

SU00302909

mainSU003-02909

SU00302920

mainSU003-02920

SU00304644

mainSU003-04644

28 parts on this diagram · 5 diagrams in section
