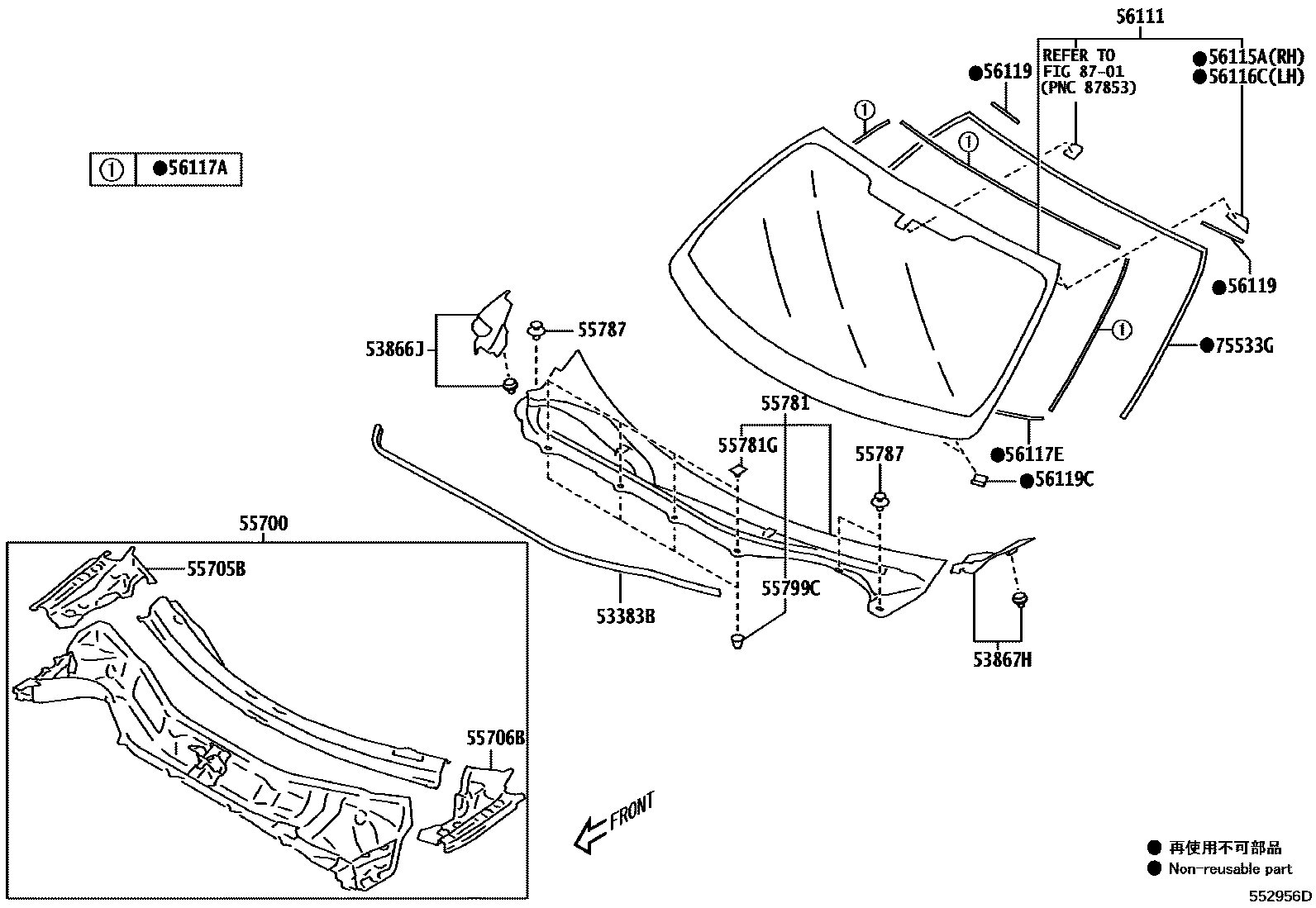

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

mainSU00303137iZN6..B201307-201404

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

mainSU00303135iZN6201204-201308

mainSU00305729iZN6201405-201503

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

mainSU00303136iZN6201204-201308

mainSU00305730iZN6201405-201503

55700PANEL ASSY, FRONT

mainSU00301235iZN6..RHD..B201307-201404

mainSU00301236iZN6..LHD201405-201503

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

mainSU00301237iZN6201405-201503

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

mainSU00301238iZN6201204-201308

55781LOUVER, COWL VENTILATOR

mainSU00303133iZN6..RHD201204-201308

mainSU00303134iZN6..LHD201204-201308

55781GCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303141×4iZN6..B201307-201404

55787CLIP, COWL VENTILATOR LOUVER, INNER

mainSU00302987×3iZN6201204-201308

55799CCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303140×4iZN6201204-201308

56111GLASS, WINDSHIELD

mainSU003G0006iZN6..(BASE,LOW,LOWC)..B201307-201404

mainSU003G0007iZN6..HI,LIMD201405-201503

56115ASTOPPER, WINDSHIELD GLASS, NO.1

mainSU00301888iZN6201204-201308

56116CSTOPPER, WINDSHIELD GLASS, NO.2

mainSU00301889iZN6201405-201503

56117ADAM, WINDOW GLASS ADHESIVE

mainSU00301890iZN6201204-201308

L=2281

56117EDAM, WINDOW GLASS ADHESIVE

mainSU00301892iZN6201204-201308

L=1497.2

56119SEAL, WINDSHIELD GLASS

mainSU00301894×2iZN6201204-201308

56119CSEAL, WINDSHIELD GLASS

mainSU00301895×2iZN6201204-201308

75533GMOULDING, WINDSHIELD, OUTSIDE

mainSU00301893iZN6201204-201308

8701MIRROR

→ Go to FIG 87-01

19 parts on this diagram · 1 diagram in section
