CLUTCH MASTER CYLINDER

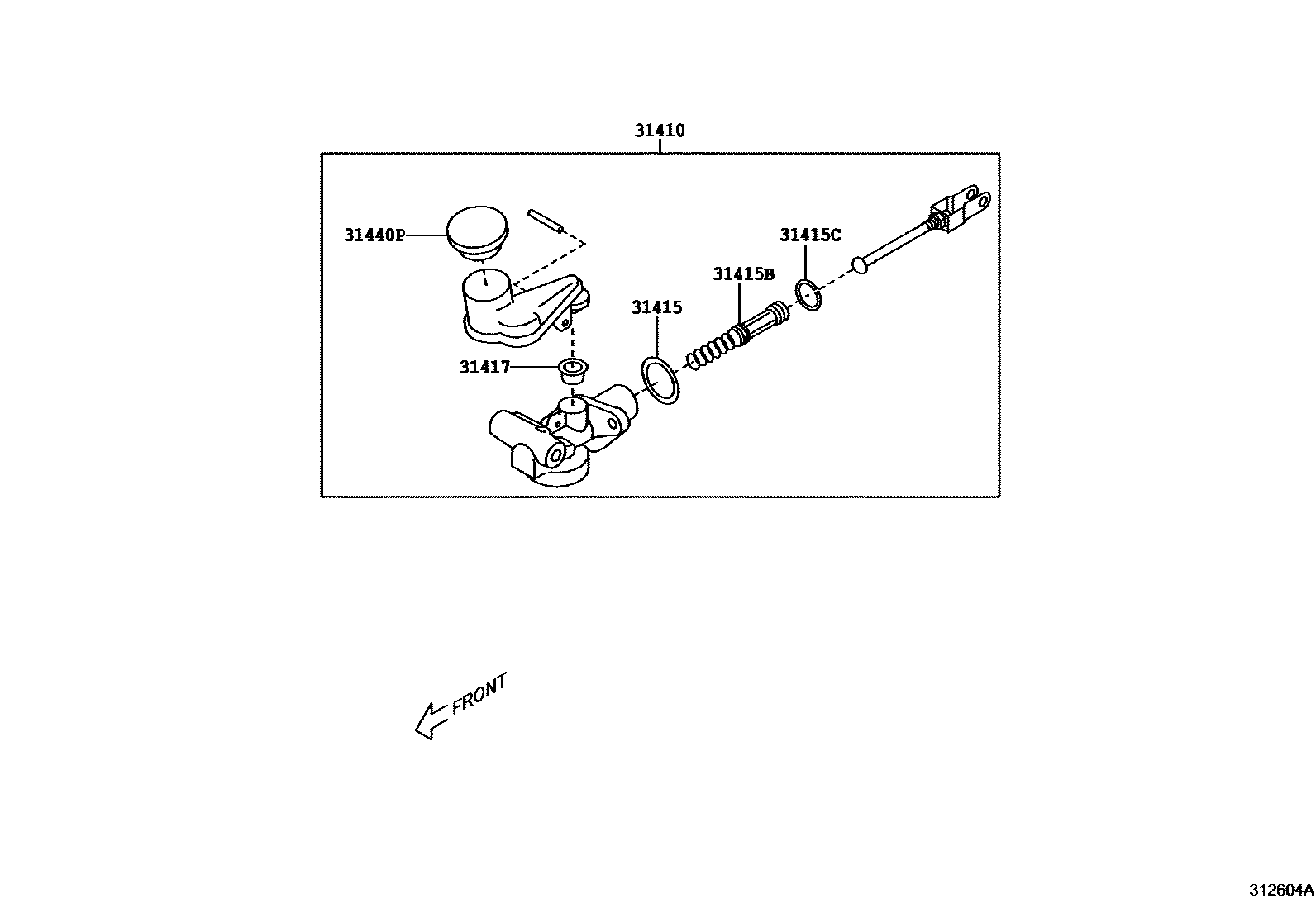

Parts diagram

31410CYLINDER ASSY, CLUTCH MASTER

mainSU00300990i201405-201503

mainSU00300991i201204-201308

mainSU00307117i201602-201607

mainSU00307118i201602-201607

31415GASKET, CLUTCH MASTER CYLINDER

mainSU00300994i201204-201308

31415BPISTON ASSY

mainSU00300992i201307-201404

31415CSTOP RING

mainSU00300126i201204-201308

31417GROMMET, CLUTCH RESERVOIR

mainSU00300592i201204-201308

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

mainSU00300993i201204-201308

mainSU00307119i201602-201607

6 parts on this diagram · 2 diagrams in section
