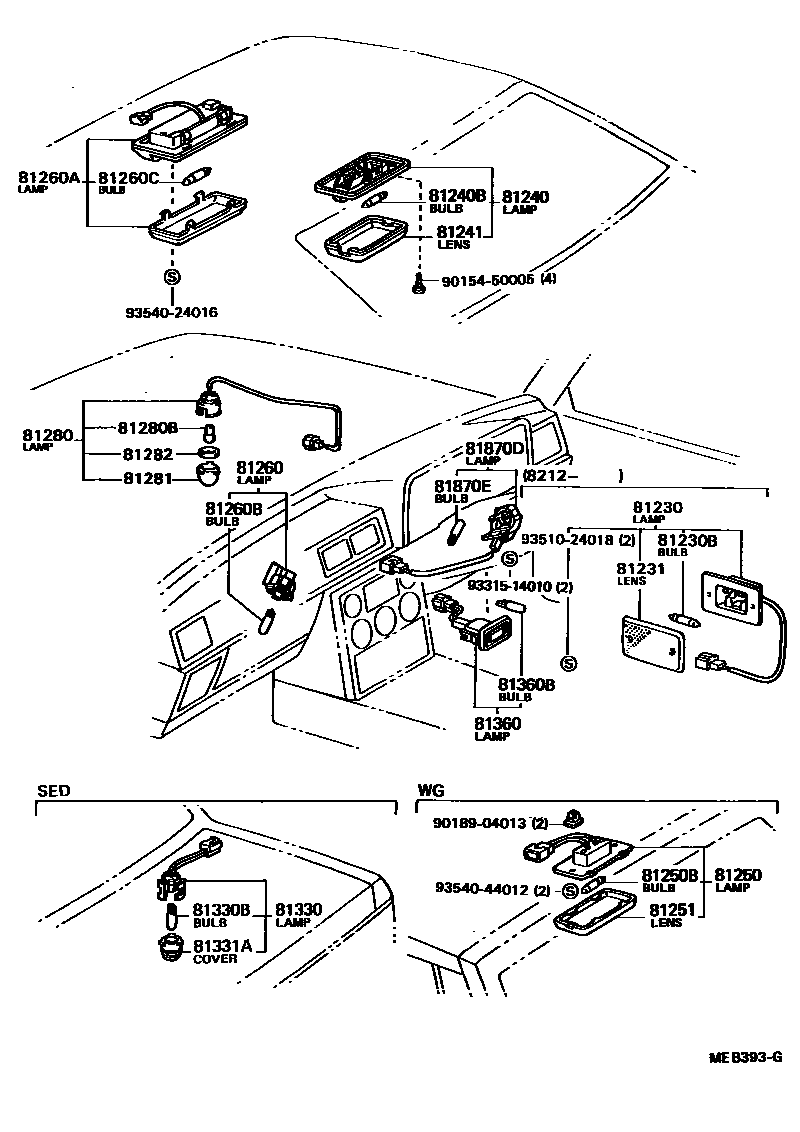

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-20020×2iTT141..GL198212-198412

W/POWER WINDOW

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iTT141..GL198212-198412

12V 5W,W/POWER WINDOW,12V 5W

81231LENS, COURTESY LAMP

main81231-30080×2iTT141..GL198212-198412

W/POWER WINDOW

81240LAMP ASSY, ROOM, NO.1

main81240-16010-08iCT140,TT14#..SED198201-198310

IVORY,IVORY

main81240-16010-13iCT141198601-198603

GRAY,GRAY

main81240-20060-08iCT140,RT14#,ST141,TT14#198310-198508

IVORY,IVORY

main81240-20060-13iCT140,RT140,ST141,TT14#..ARL,GEN,PHL198201-198310

SUSPENDED HEADLINING,GRAY,GRAY

main81240-22070-13iCT141,YT140198612-199907

GRAY,SHADOW GRAY

main81240-22070-18iST141..GEN198603-199907

IVORY,IVORY

main81240-22070-23iRT142,ST141198603-199907

GRAY,GRAY

main81240-22080-23iCT141198603-198608

GRAY,GRAY

main81240-22081-23iCT141198608-198612

GRAY,GRAY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iCT14#,RT14#,ST141,TT14#,YT140198201-199907

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iCT141198601-198603

main81241-20060iCT141,YT140198603-199907

81250LAMP ASSY, ROOM, NO.2

main81250-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

81250BBULB, ROOM LAMP, NO.2

main99132-12100iCT140,RT14#,ST141,TT14#..WG198201-199907

12V 10W,12V 10W

81251LENS, ROOM LAMP, NO.2

main81251-23010iCT140,RT14#,ST141,TT14#..WG198201-199907

81260LAMP ASSY, GLOVE BOX

main81260-22070iTT141..GL198201-198412

81260ALAMP ASSY, MAP

main81260-20120iCT141,YT140..RHD198612-199907

main81260-30090-13iCT141198601-198612

GRAY,GRAY

81260BBULB(FOR GLOVE BOX)

main90981-11018iTT141..GL198201-198612

12V 1.2W W/O SOCKET,12V 1.4W

81260CBULB(FOR MAP LAMP)

main90981-14004iCT141,YT140..RHD198612-199907

12V 8W,12V 8W

main99132-12100iCT141198601-198612

12V 10W,12V 10W

81280LAMP ASSY, ENGINE ROOM

main81280-20010iCT141..5F198804-199907

SINGAPORE TAXI

81280BBULB, ENGINE ROOM LAMP

main99132-13060iCT141..5F198804-199907

12V 6W,12V 6W,SINGAPORE TAXI

81281LENS, ENGINE ROOM LAMP

main81281-30010iCT141..5F198804-199907

SINGAPORE TAXI

81282PACKING, ENGINE ROOM LAMP LENS

main81282-30010iCT141..5F198804-199907

SINGAPORE TAXI

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iCT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)198201-198705

main81330-22031iCT141..5F198804-199907

SINGAPORE TAXI

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iCT141..5F198804-199907

12V 3.8W,12V 3.8W,SINGAPORE TAXI

main99132-12050iCT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)198201-198705

12V 5W,12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iCT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)198201-199907

81360LAMP ASSY, STEP OR SPOT

main81380-24010iST141..SED..3FC..CS198504-198508

81360BBULB, STEP OR SPOT LAMP

main90981-11018×2iCT140..LHD..DLX198201-198312

12V 1.2W W/O SOCKET,12V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-24011iCT140..LHD..DLX198201-198312

81870EBULB, KEY CYLINDER LAMP

main90981-11018iCT140..LHD..DLX198201-198312

12V 1.2W W/O SOCKET,12V 1.4W

9015450005

main90154-50005

9018904013

main90189-04013

9331514010

main93315-14010

9351024018

main93510-24018

9354024016

main93540-24016

9354044012

main93540-44012

30 parts on this diagram · 1 diagram in section
