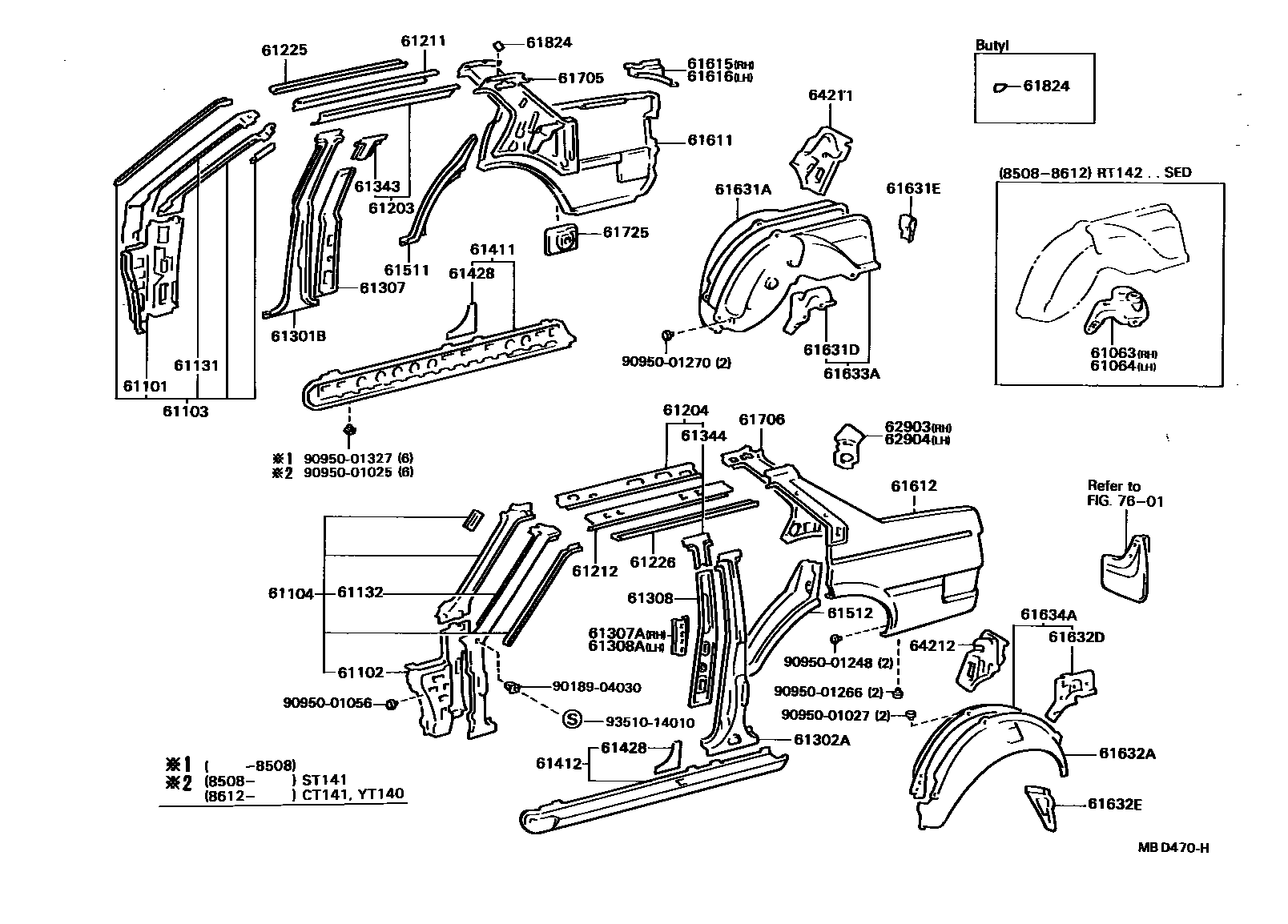

SIDE MEMBER

0001 1 0002 1

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-14030iRT142..SED198508-198612

61064BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH

main61064-14030iRT142..SED198508-198612

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-14090iCT141,YT140..LHD198612-199907

main61101-14100iCT141198601-198612

main61101-20050iRT142,ST141..CSX,CXI198508-198612

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-14090iCT140,RT142,ST141,TT14#..RHD198201-198612

main61102-20050iCT140,RT140,TT14#..LHD198201-198508

W/POLE TYPE ANTENNA

main61102-20060iCT140,RT140,ST141,TT141..LHD198310-199907

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14170iCT140,TT14#..RHD198201-198310

W/POLE TYPE ANTENNA

main61021-14190iCT140,RT140,TT14#..LHD198201-198508

main61021-20170iTT141..RHD..GL198212-198508

W/*PW & POLE TYPE ANTENNA

main61021-20190iRT142,ST141,TT141..RHD..(CSX,CXI,GL)198212-198508

W/*PW

main61021-20240iTT141..LHD..GL198212-198310

W/*PW

main61021-20430iCT141,YT140..LHD198612-199907

main61021-20440iCT141,YT140..RHD198612-199907

W/ANTENNA

main61021-20450iCT141,YT140..RHD198612-199907

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14190iRT142,ST141..CS,CSI,S198304-198508

main61022-14200iRT142,ST141..CSX,CXI198508-198612

main61022-20240iCT140,RT140,TT14#..LHD198201-198508

W/POLE TYPE ANTENNA

main61022-20260iCT140,RT140,TT141..LHD198310-198508

main61022-20290iTT141..LHD..GL198212-198310

W/*PW

main61022-20380iCT141,YT140..RHD198612-199907

main61022-20390iCT141,YT140..LHD198612-199907

main61022-20400iCT141,YT140..LHD198612-199907

W/ANTENNA

main61022-20550iCT141..5F199306-199907

W/FR-LH *PW

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61027-14120iRT142,ST141..CS,CSI,S198304-198508

main61027-14130iRT142,ST141,TT141..CSX,CXI,GL198212-198508

W/*PW

main61027-20060iCT141,YT140198612-199907

main61027-20070iCT141,YT140..RHD198612-199907

W/ANTENNA

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61028-14100iCT140,RT140,TT14#198201-198508

main61028-14110iRT142,ST141..CSX,CXI198508-198612

main61028-20060iCT141,YT140198612-199907

main61028-20070iCT141,YT140..LHD198612-199907

W/ANTENNA

main61028-20080iCT141..5F199306-199907

W/*PW

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-20110iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61203-20120iCT141,YT140198612-199907

main61203-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-20110iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61204-20120iCT141,YT140198612-199907

main61204-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61211RAIL, ROOF SIDE, OUTER RH

main61211-20120iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61211-20170iCT141,YT140198612-199907

main61211-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61212RAIL, ROOF SIDE, OUTER LH

main61212-20120iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61212-20170iCT141,YT140198612-199907

main61212-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61225CHANNEL, ROOF DRIP, CENTER RH

main61265-20030iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61265-20060iCT141,YT140198612-199907

main61265-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61226CHANNEL, ROOF DRIP, CENTER LH

main61266-20030iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61266-20060iCT141,YT140198612-199907

main61266-91C01iCT140,RT14#,ST141,TT14#..WG198201-199907

61301BPILLAR, CENTER BODY, OUTER RH

main61301-14060iCT141198601-198612

main61301-20250iCT141,YT140198612-199008

main61301-20340iCT141,YT140199008-199907

61302APILLAR, CENTER BODY, OUTER LH

main61302-14060iCT141198601-198612

main61302-20310iCT141,YT140198612-199008

main61302-20450iCT141,YT140199008-199907

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61343-14050iCT14#,RT14#,ST141,TT14#198201-198612

61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-14020iCT141,YT140198612-199907

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61344-14050iCT14#,RT14#,ST141,TT14#198201-198612

61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-14010iCT141,YT140198612-199907

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-14040iCT14#,RT14#,ST141,TT14#198201-198612

main61341-20090iCT141,YT140198612-199907

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-14040iCT14#,RT14#,ST141,TT14#198201-198612

main61342-20090iCT141,YT140198612-199907

61411PANEL, ROCKER, OUTER RH

main61401-14020iCT140,RT14#,ST141,TT14#198201-198701

main61401-20140iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC

main61401-20150iCT141198601-198612

main61401-20220iCT141,YT140198612-199008

main61401-20380iCT141,YT140199008-199907

61412PANEL, ROCKER, OUTER LH

main61402-14020iCT140,RT14#,ST141,TT14#198201-198805

main61402-20140iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC

main61402-20150iCT141198601-198612

main61402-20220iCT141,YT140198612-199008

main61402-20380iCT141,YT140199008-199907

61428GUSSET, ROCKER OUTER PANEL

main61428-20010×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198310

TAXI SPEC

61511PILLAR, QUARTER LOCK, RH

main61501-91255iCT140,RT140,TT14#..WG198201-198210

main61501-91256iCT140,RT140,TT14#..WG198210-198508

main61501-91257iST141..WG..GEN198508-199907

main61511-20906iCT141198601-199008

main61511-20907iCT140,RT14#,ST141,TT14#..SED198201-199907

main61511-20909iCT141,YT140199008-199907

61512PILLAR, QUARTER LOCK, LH

main61502-91255iCT140,RT140,TT14#..WG198201-198210

main61502-91256iCT140,RT140,TT14#..WG198210-198508

main61502-91257iST141..WG..GEN198508-199907

main61512-20906iYT140198612-199008

main61512-20907iCT140,RT14#,ST141,TT14#..SED198201-199907

main61512-20909iCT141,YT140199008-199907

61611PANEL, QUARTER, RH

main61601-20904iCT140,RT140,TT14#..WG198201-198508

main61601-20905iTT141..WG198201-198508

W/FUEL OPENER

main61601-20907iST141..WG198304-198505

main61601-20916iST141..WG..GEN198508-199907

main61611-20640iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61611-2B010iCT141,YT140198612-199008

main61611-2B270iCT141,YT140199008-199907

61612PANEL, QUARTER, LH

main61602-20900iCT140,RT140,ST141,TT14#..WG198201-198508

main61602-20918iST141..WG..GEN198508-199907

main61612-20420iRT142,ST141..SED..(CS,CSI,S)198304-198508

main61612-2B070iCT141,YT140198612-199008

main61612-2B490iCT141,YT140199008-199907

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20040iCT14#,RT14#,ST141,TT14#..SED198201-198612

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20040iCT141,YT140198612-199907

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-20020iRT142..SED; ST141..SED..GEN198508-198512

main61605-20030iST141..SED..ARL198508-198512

main61631-91260iST141..WG..GEN198508-199907

61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61675-14030iCT141,ST141..SED; RT142,ST141..WG..ARL198508-198612

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-14040iRT142,ST141..ARL198304-198612

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20080iRT142,ST141..WG..ARL198304-199907

main61632-20090iCT141,YT140198612-199907

61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61676-14020iCT141,ST141..SED; RT142,ST141..WG..ARL198508-198612

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-14050iCT141,YT140198612-199907

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-91790iCT140,RT140,TT14#..WG198201-198508

main61607-14900iCT141,ST141..SED..GEN198508-198612

main61607-20904iCT141,YT140198612-199907

main61607-91C01iRT142,ST141..WG..ARL198304-198612

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-91790iCT140,RT140,TT14#..WG198201-198508

main61608-14902iCT141,YT140198612-199907

main61608-91C01iRT142,ST141..WG..ARL198304-198612

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-20100iCT140,TT14#..SED198201-198310

W/O SEAT BELT ANCHOR

main61705-20130iST141..SED..GEN198508-199907

main61705-20220iCT141,YT140198612-199907

main61705-20230iCT141,YT140..LHD198612-199210

W/SEAT BELT ANCHOR

main61705-20310iCT141,YT140199210-199907

W/SEAT BELT ANCHOR

main61705-91266iTT14#..WG..RHD198201-198508

W/SEAT BELT ANCHOR

main61705-91C01iST141..WG..GEN198508-199907

main61705-91C02iRT142,ST141..WG..ARL198304-198612

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-20090iCT141198601-198612

main61706-20130iST141..SED..GEN198508-199907

main61706-20210iCT141,YT140198612-199907

main61706-20220iCT141,YT140..LHD198612-199210

W/SEAT BELT ANCHOR

main61706-20300iCT141,YT140199210-199907

W/SEAT BELT ANCHOR

main61706-91266iTT14#..WG..RHD198201-198508

W/SEAT BELT ANCHOR

main61706-91C01iCT140,RT140,TT14#..WG198201-198508

W/O SEAT BELT ANCHOR

main61706-91C02iRT142,ST141..WG..ARL198304-198612

61725BOX, FUEL INLET

main61709-20050iCT141198601-199907

main61725-20080iRT142,ST141..CSX,CXI198304-198508

W/FUEL LID OPENER

61824PLATE, NOISE CONTROL, NO.1

main61824-20030×2iCT140,RT14#,ST141,TT14#..SED198201-198508

T=0.8

main61824-20050×2iST141..SED..GEN198508-199907

BUTYL TAPE,T=2.0

main61824-20090×6iCT141,YT140198612-199907

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-20010iCT14#,RT14#,ST141,TT14#..SED198201-199907

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-20010iCT14#,RT14#,ST141,TT14#..SED198201-199907

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-14080iCT140,RT140,TT14#..SED198201-198508

main64211-14090iTT141..GL198201-198412

W/RECLINING RR SEAT

main64211-20150iCT141,YT140198907-199907

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-14080iCT141,ST141..SED..GEN198508-198612

main64212-14090iTT141..GL198201-198412

W/RECLINING RR SEAT

main64212-20150iCT141,YT140198907-199907

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9018904030

main90189-04030

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001248

main90950-01248

9095001266

main90950-01266

9095001270

main90950-01270

9095001327

main90950-01327

9351014010

main93510-14010

57 parts on this diagram · 2 diagrams in section
