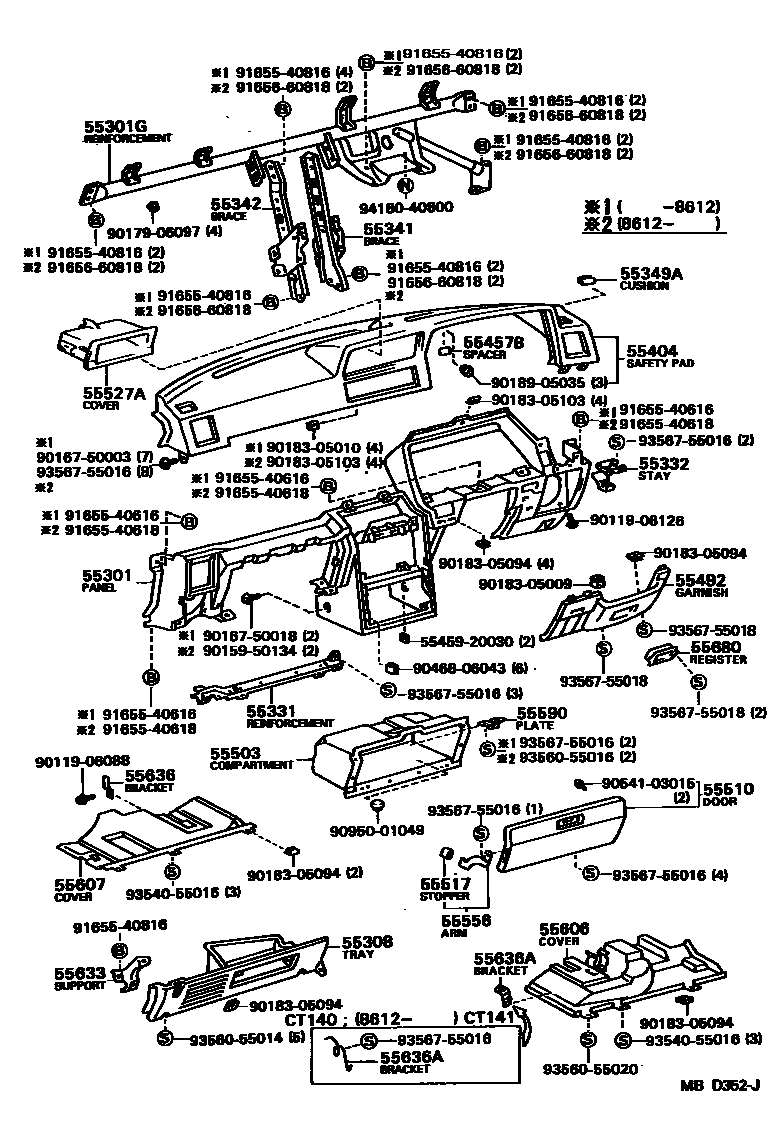

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55312-20120-01iCT141,YT140..RHD198601-199907

BLACK,BLACK

main55312-20120-04iCT140,TT14#..SED..RHD198201-198508

BLUE,BLUE

main55312-20120-06iCT140,TT14#..RHD198201-198508

SADDLE BROWN,BROWN

main55312-20130-01iCT140,RT140,ST141,TT14#..LHD198201-199907

BLACK,BLACK

main55312-20130-04iCT140,RT140,TT14#..SED..LHD198201-198508

BLUE,BLUE

main55312-20130-06iCT140,RT140,ST141,TT14#..LHD198201-199907

SADDLE BROWN,BROWN

55301GREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-14060iCT14#,RT142,ST141,TT14#..RHD198201-198612

main55305-14070iCT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F)198201-199907

main55305-20100iTT140..4H198201-198310

main55305-20110iCT141,YT140..RHD198612-199907

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-20030-01iCT140,RT142,ST141,TT14#..RHD198201-198508

BLACK,BLACK

main55601-20030-04iCT140,RT142,ST141,TT14#..SED..RHD198201-198508

BLUE,BLUE

main55601-20030-06iCT140,RT142,ST141,TT14#..RHD198201-198508

SADDLE BROWN,BROWN

main55601-20040-01iCT140,RT140,ST141,TT14#..LHD198201-199907

BLACK,BLACK

main55601-20040-04iCT140,RT140,TT14#..SED..LHD198201-198508

BLUE,BLUE

main55601-20040-06iCT140,RT140,ST141,TT14#..LHD198201-199907

SADDLE BROWN,BROWN

55331REINFORCEMENT, INSTRUMENT PANEL

main55332-20080iCT141,YT140..RHD198612-199907

main55332-20090iCT141,YT140..LHD198612-199907

55332STAY, INSTRUMENT PANEL

main55303-20050iCT14#,RT142,ST141,TT14#..RHD198201-198612

main55303-20060iCT140,RT140,ST141,TT14#..LHD198201-199907

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14070iCT14#,RT142,ST141,TT14#..RHD198201-198612

main55306-14080iCT141,YT140..LHD198612-199907

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14110iCT14#,RT142,ST141,TT14#..RHD198201-198612

main55307-14120iCT140,RT140,ST141,TT14#..LHD198201-199907

55349ACUSHION, INSTRUMENT PANEL

main55349-14050iCT14#,RT14#,ST141,TT14#198201-198612

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20400-01iCT141,RT142,ST141..SED..RHD198508-198612

BLACK,BLACK

main55401-20400-04iCT140,RT142,ST141,TT14#..SED..RHD198201-198508

BLUE,BLUE

main55401-20400-06iCT140,RT142,ST141,TT14#..RHD198201-199907

SADDLE BROWN,BROWN

main55401-20410-01iCT141,YT140..LHD198612-199907

BLACK,BLACK

main55401-20410-04iCT140,RT140,TT14#..SED..LHD198201-198508

BLUE,BLUE

main55401-20410-06iCT140,RT140,ST141,TT14#..LHD198201-199907

SADDLE BROWN,BROWN

main55401-20500-01iCT141,YT140..RHD198612-199907

BLACK,BLACK

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-20060×6iCT14#,RT14#,ST141,TT14#198302-198612

20X130

main55457-22030×4iCT141,YT140198612-199907

16X30

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-20110-01iCT141,RT142,ST141,YT140..SED..RHD198508-199907

BLACK,BLACK

main55432-20110-04iCT140,RT142,ST141,TT14#..SED..RHD..(3FC,4F,4FC,5F)198201-198508

BLUE,BLUE

main55432-20110-06iCT140,RT142,ST141,TT14#..RHD..(3FC,4F,4FC,5F)198201-198508

SADDLE BROWN,BROWN

main55432-20120-01iCT141,YT140..LHD198612-199907

BLACK,BLACK

main55432-20120-04iCT140,RT140,TT14#..SED..LHD..(3FC,4F,5F)198201-198508

BLUE,BLUE

main55432-20120-06iCT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F)198201-199907

SADDLE BROWN,BROWN

main55432-20130-01iTT140..3H198201-198310

BLACK,BLACK

main55432-20130-04iTT140..3H198201-198310

BLUE,BLUE

main55432-20130-06iTT140..3H198201-198310

SADDLE BROWN,BROWN

main55432-20140-01iTT140..4H198201-198310

BLACK,BLACK

main55432-20140-04iTT140..4H198201-198310

BLUE,BLUE

main55432-20140-06iTT140..4H198201-198310

SADDLE BROWN,BROWN

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-20060iCT14#,RT142,ST141,TT14#,YT140..RHD198201-199907

main55581-20070iCT141,YT140..LHD198612-199907

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20070-01iCT140,RT142,ST141,TT14#..RHD198201-198508

BLACK,BLACK

main55550-20070-04iCT140,RT142,ST141,TT14#..SED..RHD198201-198508

BLUE,BLUE

main55550-20070-06iCT140,RT142,ST141,TT14#..RHD198201-198508

SADDLE BROWN,BROWN

main55550-20080-01iCT141,YT140..LHD198612-199907

BLACK,BLACK

main55550-20080-04iCT140,RT140,TT14#..SED..LHD198201-198508

BLUE,BLUE

main55550-20080-06iCT140,RT140,ST141,TT14#..LHD198201-199907

SADDLE BROWN,BROWN

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iCT14#,RT14#,ST141,TT14#198201-198612

55527ACOVER, METER OPENING

main55527-20020iCT141,YT140..RHD198612-199907

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iCT141,YT140198612-199907

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iCT140,RT14#,ST141,TT14#198201-198412

main55590-14020iCT141,RT142,ST141,TT141198412-198612

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20010iCT141..5F198601-199907

main55606-20020iCT141..5F198612-199907

W/HEATER,BOOST VENTILATOR

main55606-20030iCT140..LHD198201-198312

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-20010iCT140..RHD198201-198312

main55607-20020iCT141..4F198612-199907

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-20020iCT14#,RT142,ST141,TT14#,YT140..RHD198201-199907

main55633-20030iCT140,RT140,ST141,TT14#..LHD198201-199907

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-24010iCT140198201-198312

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-14030iCT141..4F198612-199907

W/HEATER,BOOST VENTILATOR

main55637-20060iCT140..RHD198201-198312

main55637-20070iCT141..4F198612-199907

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14010-01iCT140,RT142,ST141,TT14#198201-198508

BLACK,BLACK

main55680-14010-04iCT140,RT142,ST141,TT14#..SED198201-198508

BLUE,BLUE

main55680-14010-16iCT140,RT142,ST141,TT14#198201-198508

SADDLE BROWN,BROWN

5545920030BASE, TRANSMISSION CONTROL SWITCH

main55459-20030

9011906088

main90119-06088

9011906126

main90119-06126

9015950134

main90159-50134

9016750003

main90167-50003

9016750018

main90167-50018

9017906097

main90179-06097

9018305009

main90183-05009

9018305010

main90183-05010

9018305094

main90183-05094

9018305103

main90183-05103

9018905035

main90189-05035

9046806043

main90468-06043

9054103015

main90541-03015

9095001049

main90950-01049

9165540616

main91655-40616

9165540618

main91655-40618

9165540816

main91655-40816

9165660818

main91656-60818

9354055016

main93540-55016

9356055014

main93560-55014

9356055016

main93560-55016

9356055020

main93560-55020

9356755016

main93567-55016

9356755018

main93567-55018

9418040800

main94180-40800

49 parts on this diagram · 4 diagrams in section
