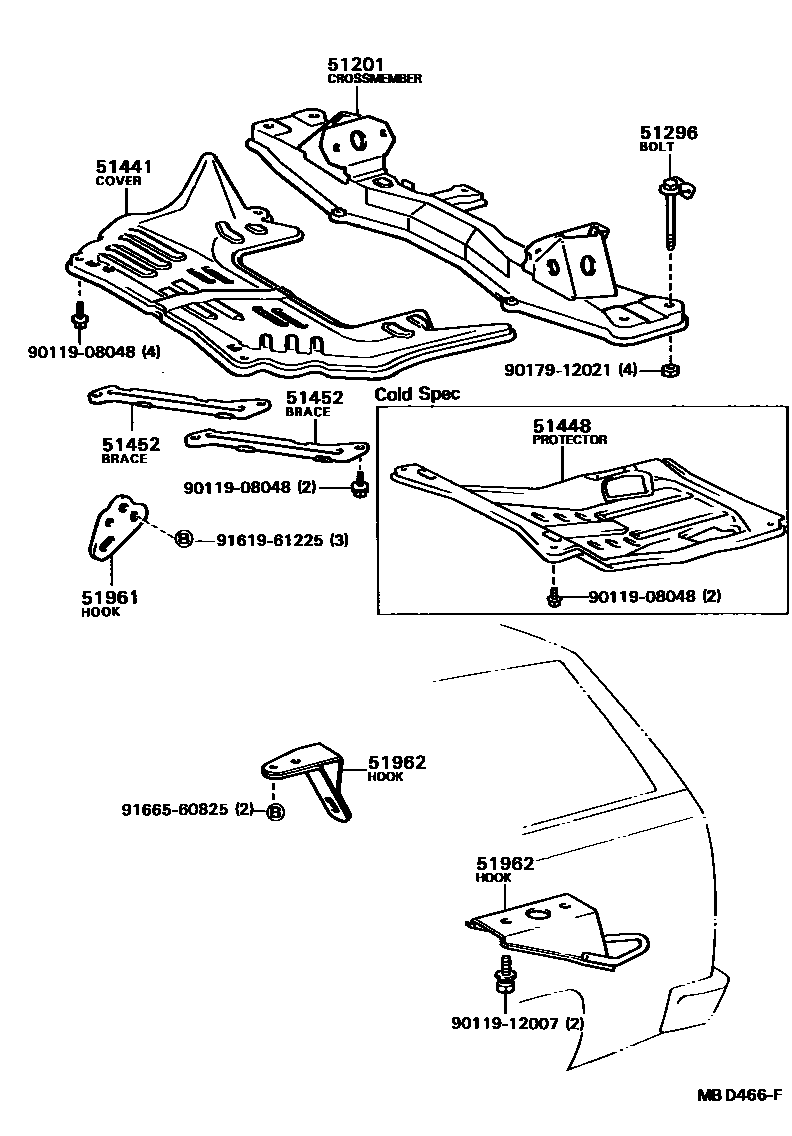

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14140iTT14#..SED..RHD..(3FC,4F,5F)198201-198412

main51201-14150iTT14#..SED..LHD..(3FC,4F,5F)198201-198508

main51201-14180iCT140..LHD..DLX198201-198312

main51201-14230iRT142198408-198612

main51201-14260iTT14#..WG;TT140..3H,4H198201-198508

main51201-14270iCT141198601-199907

main51201-20160iRT140198206-198312

main51201-20170iYT140198612-199907

main51201-20190iST141..SED..GEN198508-199907

main51201-20200iST141..WG..GEN198508-199907

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-20020×2iCT141; YT140198708-199907

main51296-14030×4iYT140198612-198708

main51296-24010×4iST141..SED..GEN198508-199907

51441COVER, ENGINE UNDER, NO.1

main51405-14010iCT140198201-198312

main51441-14010iCT141198601-198612

main51441-14050iST141..GEN198508-199907

main51441-14060iTT14#198201-198508

main51441-20070iRT140198206-198312

main51441-20090iYT140198612-199907

51448PROTECTOR, OIL PAN

main51447-14050iCT141,YT140198612-199907

COLD SPEC

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-14011×2iRT140198206-198312

51961HOOK, NO.1

main51963-14060×2iCT140,RT140,TT14#198201-198310

main51963-14080×2iCT140,RT140,TT14#198310-198508

51962HOOK, NO.2

main51095-91C02iRT142,ST141..WG..ARL198304-198612

RH

main51096-91C01iRT142,ST141..WG..ARL198304-198612

LH

9011908048

main90119-08048

9011912007

main90119-12007

9017912021

main90179-12021

9161961225

main91619-61225

9166560825

main91665-60825

12 parts on this diagram · 2 diagrams in section
