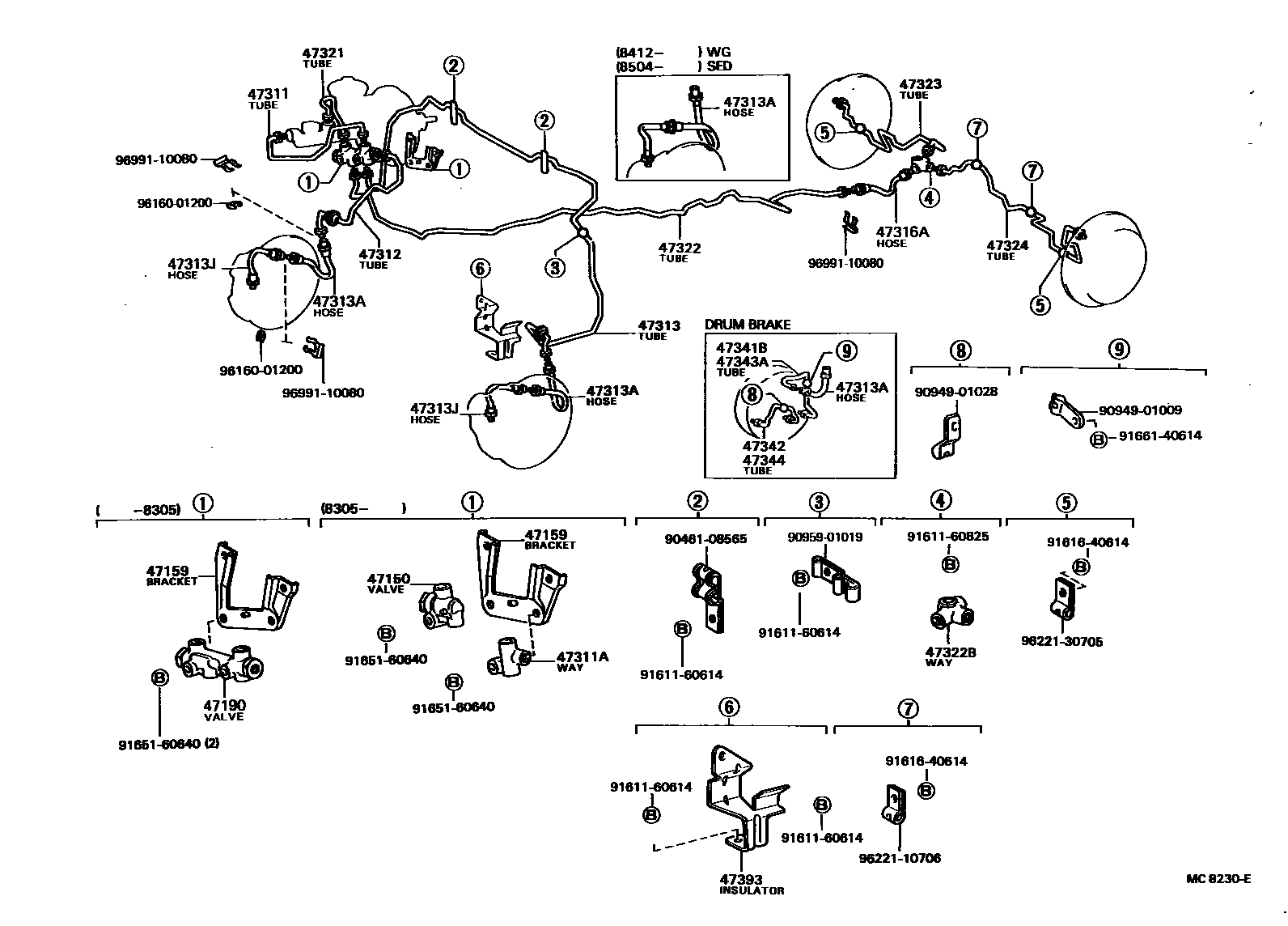

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1

47150VALVE ASSY, PROPORTIONING

main47150-12031iCT141,YT140..RHD; YT140..LHD198612-199310

FR DRUM BRAKE

main47150-12041iCT14#,ST141,TT14#..(DLX,STD)..GEN198305-198612

FR DISC BRAKE

47159BRACKET, PROPORTIONING VALVE

main47159-14020iCT141198601-198612

main47159-14040iCT140,RT140,TT14#..LHD198201-198305

main47159-14041iCT14#,RT140,ST141,TT14#,YT140..LHD198305-199907

main47159-14050iCT141,YT140..RHD198612-199907

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12010iCT140,RT140,TT14#..LHD..(DLX,GL,STD)198201-198305

FR DISC BRAKE

main47190-14020iCT140..TAX; TT140..4H198201-198305

FR DRUM BRAKE

main47190-22030iCT140,TT14#..RHD198201-198305

FR DISC BRAKE

main47190-22040iCT140..RHD; TT140..3H198201-198305

FR DRUM BRAKE

47311TUBE, FRONT BRAKE, NO.1

main47311-14210iCT140,TT14#..RHD198201-198508

main47311-14220iCT140,RT140,ST141,TT14#,YT140..LHD198201-199907

main47311-14280iCT141,YT140..RHD198612-199907

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iCT140,TT14#..RHD198305-198508

main90413-10004iCT140,RT140,ST141,TT14#..LHD198201-198612

47312TUBE, FRONT BRAKE, NO.2

main47312-14110iCT141..5F198601-199907

main47312-14120iCT140,RT140,ST141,TT14#..LHD198201-198612

main47312-20090iYT140..RHD198801-199907

main47312-20180iCT141,YT140..LHD198612-199907

47313TUBE, FRONT BRAKE, NO.3

main47313-14120iCT141,YT140..LHD198612-199907

main47313-20180iCT140,TT14#..RHD198201-198508

main47313-20200iYT140..RHD198801-199907

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02426×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

main90947-02474×2iTT141..SED198504-198508

FR DISC BRAKE

main90947-02528iCT141,YT140198612-198801

FR DRUM BRAKE RH

main90947-02529iCT141,YT140198612-198801

FR DRUM BRAKE LH

main90947-02577iCT141,YT140198801-199310

FR DRUM BRAKE RH

main90947-02578iCT141,YT140198801-199310

FR DRUM BRAKE LH

main96950-33554×2iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32454×2iCT140..RHD; CT140..TAX198301-198312

FR TAXI DISC BRAKE

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iCT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)198201-199907

main96940-33955iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-198612

47321TUBE, REAR BRAKE, NO.1

main47321-14090iTT14#..RHD198201-198612

main47321-14100iCT141198601-198612

main47321-14110iTT14#..LHD198201-198508

main47321-14160iCT141,YT140..RHD198612-199907

main47321-20060iRT140198206-198312

main47321-20070iCT140..LHD198201-198312

main47321-20150iYT140198612-199907

47322TUBE, REAR BRAKE, NO.2

main47322-14071iTT14#..SED..RHD..(3FC,4F,5F)198201-198412

main47322-14091iTT14#..WG..RHD198201-198508

main47322-14111iYT140..LHD198612-199907

main47322-14170iCT140..SED..LHD198201-198312

main47322-14180iCT141..5F198601-199907

main47322-20150iTT140..3H198201-198310

main47322-20160iTT140..4H198201-198310

main47322-20390iYT140..RHD198801-199907

main47322-21060iST141..WG..GEN198508-198612

main47322-21071iRT140,TT14#..WG..LHD198201-198508

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iCT14#,RT14#,ST141,TT14#,YT140198201-199907

47323TUBE, REAR BRAKE, NO.3

main47323-14042iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main47323-20070iYT140198612-199907

main47323-21020iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-198612

47324TUBE, REAR BRAKE, NO.4

main47324-14052iCT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

main47324-20070iYT140198612-199907

main47324-21011iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-198612

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-20060iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-20020iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

main47342-20030iCT141,YT140198612-199907

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-20040iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-20020iCT140..RHD; CT140..TAX; TT140..3H,4H198201-198312

FR DRUM BRAKE

main47344-20030iCT141,YT140198612-199907

47393INSULATOR, BRAKE TUBE HEAT

main47393-14020iTT14#..SED..RHD..(3FC,4F,5F)198201-198412

main47393-14030iTT14#..SED..LHD..(3FC,4F,5F)198201-199907

9046108565

main90461-08565

9094901009

main90949-01009

9094901028

main90949-01028

9095901019

main90959-01019

9161160614

main91611-60614

9161160825

main91611-60825

9161640614

main91616-40614

9165160640

main91651-60640

9166140614

main91661-40614

9616001200

main96160-01200

9622110706

main96221-10706

9622130705

main96221-30705

9699110080

main96991-10080

33 parts on this diagram · 6 diagrams in section
