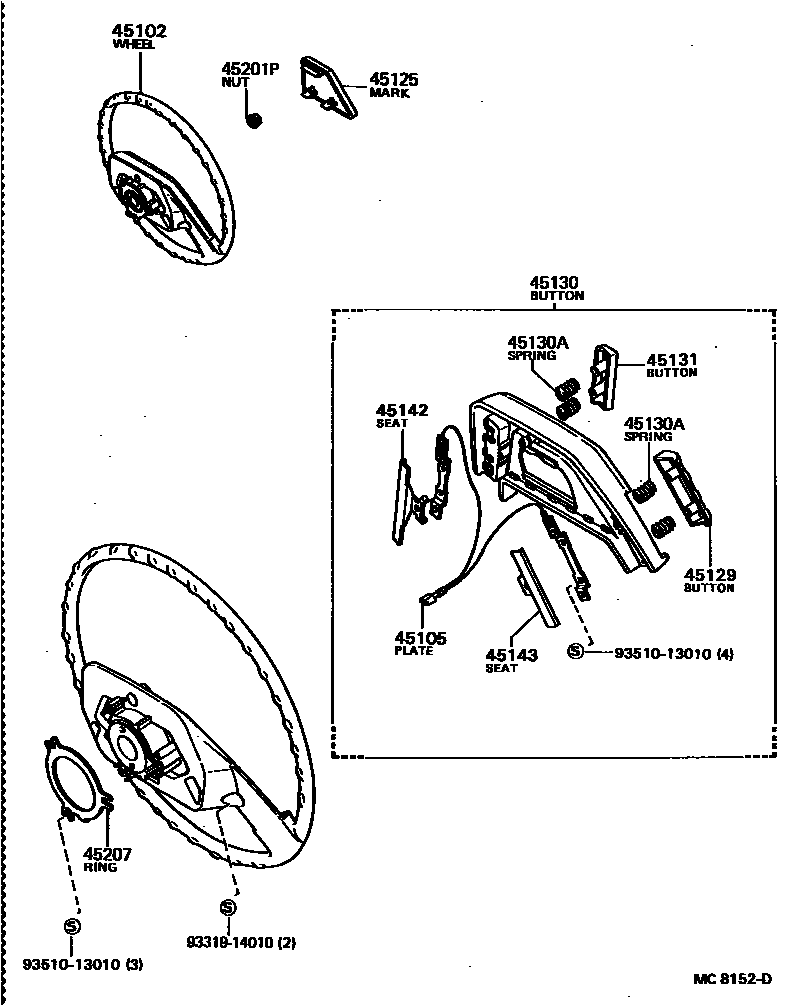

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45125MARK, STEERING WHEEL PAD
BLACK,BLACK
DARK BROWN,BROWN
BLACK,URETHANE TYPE,BLACK
DARK BROWN,URETHANE TYPE,BROWN
45129BUTTON, HORN, NO.2
BLACK,BLACK
DARK BROWN,BROWN
BLACK,URETHANE TYPE,BLACK
DARK BROWN,URETHANE TYPE,BROWN
45130BUTTON ASSY, HORN
BLACK,BLACK
DARK BROWN,BROWN
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
45131BUTTON, HORN, NO.1
BLACK,BLACK
DARK BROWN,BROWN
BLACK,URETHANE TYPE,BLACK
DARK BROWN,URETHANE TYPE,BROWN
45142SEAT, HORN BUTTON CONTACT, NO.1
URETHANE TYPE
45143SEAT, HORN BUTTON CONTACT, NO.2
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9331914010
main93319-14010
9351013010
main93510-13010
13 parts on this diagram · 3 diagrams in section
