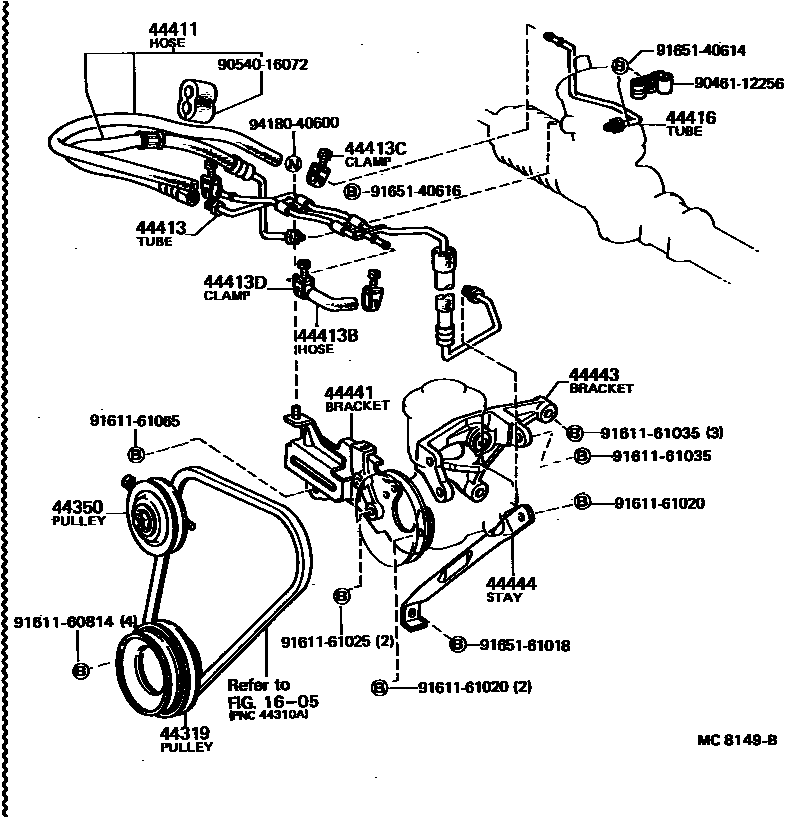

POWER STEERING TUBE

0001 1 0002 1 0004 1

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main13477-18021iTT141..SED..RHD198212-198412

main44319-14010iST141..CSX198304-198612

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12020iTT141..SED..RHD198212-198412

main44350-20020iRT142..CXI198408-198612

44411HOSE, PRESSURE FEED

main44410-20040iTT141..SED..RHD198212-198412

main44411-20131iST141..CSX198304-198508

main44411-20190iST141..CSX; ST141..SED..3FC..CS198508-198509

main44411-20191iST141..CSX; ST141..SED..3FC..CS198509-198612

44413TUBE, PRESSURE FEED, NO.1

main44410-20090iTT141..SED..RHD198212-198412

main44410-20210iRT142..CXI198408-198508

main44410-20310iRT142..CXI198508-198612

44413BHOSE(FOR RESERVOIR TANK INLET)

main44412-14020iTT141..SED..RHD198212-198412

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001×2iRT142,TT141..SED..RHD198212-198412

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iTT141..SED..RHD198212-198412

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20121iST141..CSX198304-198508

main44416-20150iTT141..SED..RHD198212-198412

main44416-20160iRT142..CXI198408-198508

main44416-20170iST141..CSX; ST141..SED..3FC..CS198508-198509

main44416-20171iST141..CSX; ST141..SED..3FC..CS198509-198612

main44416-22181iRT142..CXI198508-198612

44441BRACKET, PUMP, FRONT

main44441-14020iTT141..SED..RHD198212-198412

main44441-20010iRT142..CXI198408-198612

44443BRACKET, PUMP

main44443-12010iTT141..SED..RHD198212-198412

main44443-14020iST141..CSX198304-198612

main44443-35020iRT142..CXI198408-198612

44444STAY, PUMP, REAR

main44444-12010iTT141..SED..RHD198212-198412

9046112256

main90461-12256

9054016072

main90540-16072

9161160814

main91611-60814

9161161020

main91611-61020

9161161025

main91611-61025

9161161035

main91611-61035

9161161065

main91611-61065

9165140614

main91651-40614

9165140616

main91651-40616

9165161018

main91651-61018

9418040600

main94180-40600

23 parts on this diagram · 3 diagrams in section
