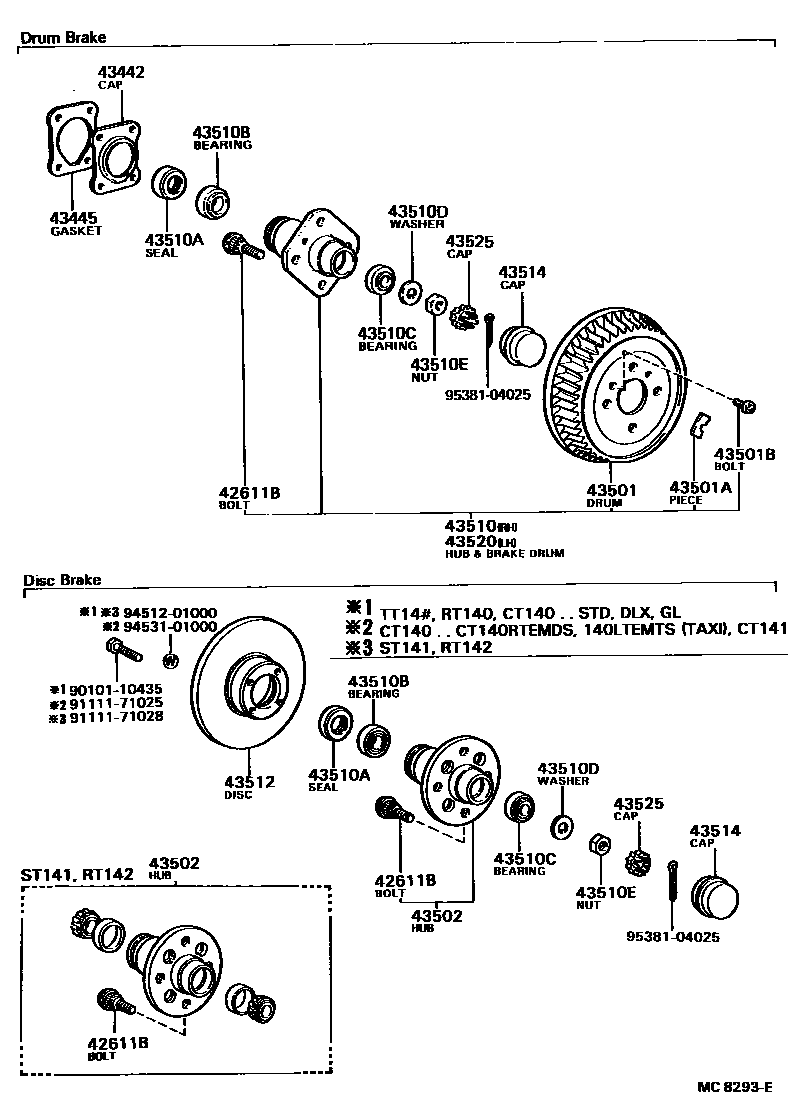

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×8iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198307

FR DRUM BRAKE

main90942-02036×8iCT140,RT140,TT14#..DLX,GL,STD198201-198307

FR DISC BRAKE

main90942-02047×8iCT141,YT140198612-199512

FR DRUM BRAKE

main90942-02048×8iCT140..RHD;CT140..TAX198307-198312

FR TAXI DISC BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20040×2iCT140..RHD;CT140..TAX198201-198312

FR DRUM BRAKE

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20040×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-20031×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01045×4iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

10G,10G

main90937-01046×4iCT141,YT140198612-199512

25G,25G

main90937-01047×4iCT141,YT140198612-199512

40G,40G

main90937-01217×4iCT141,YT140198612-199512

55G,55G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

43502HUB SUB-ASSY, FRONT AXLE

main43502-14030×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

main43502-20010×2iCT141,YT140198601-199907

main43502-29035×2iRT142,ST141..ARL198304-198612

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-20080iCT141,YT140198612-199512

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main90311-48001×2iCT141,YT140198612-199907

main90311-48122×2iCT140..RHD;CT140..TAX198301-198312

FR TAXI DISC BRAKE

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main90368-31067×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main90368-19037×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main90214-20005×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main90170-19185×2iCT141,YT140..LHD198612-199907

43512DISC, FRONT

main43512-14070×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

main43512-20060×2iCT141,YT140198601-198712

main43512-20200×2iCT141,YT140198707-199907

VENTILATED DISC

43514CAP, FRONT HUB GREASE

main43514-20010×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main43514-22020×2iCT141,YT140..LHD198612-199907

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-20080iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

FR DISC BRAKE

main43525-22010×2iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

FR DRUM BRAKE

9010110435

main90101-10435

9111171025

main91111-71025

9111171028

main91111-71028

9451201000

main94512-01000

9453101000

main94531-01000

9538104025

main95381-04025

23 parts on this diagram · 1 diagram in section
