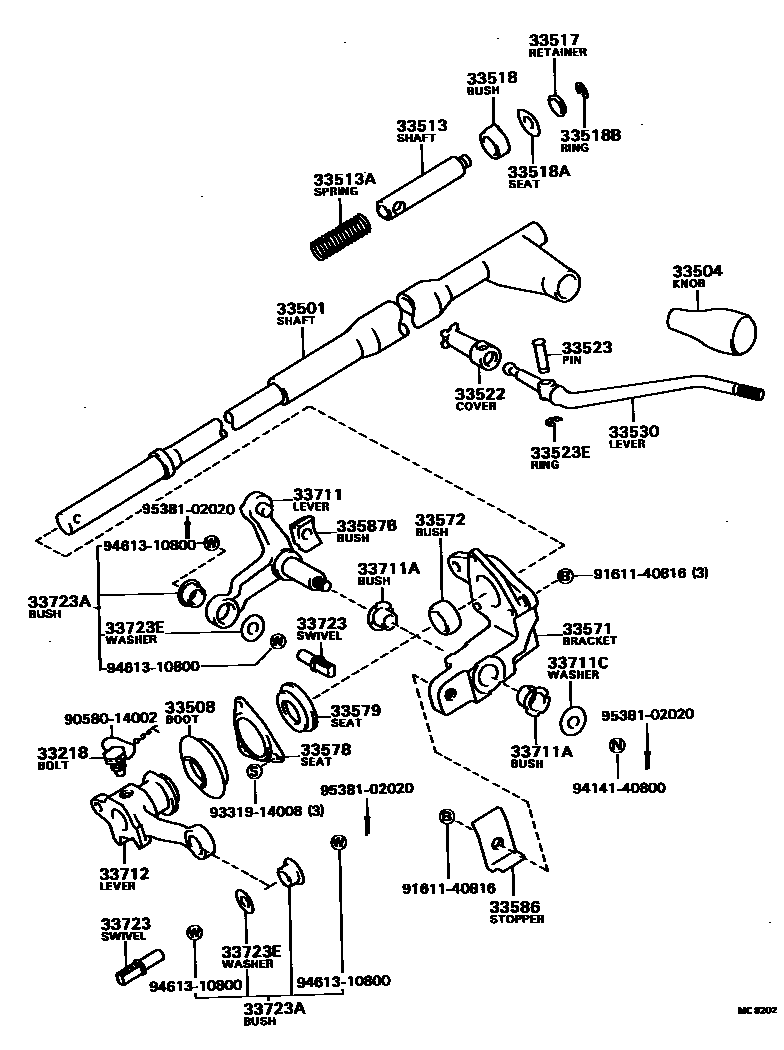

CONTROL SHAFT & CROSSSHAFT
33218BOLT, SHIFT LEVER LOCK
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33508BOOT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33579SEAT, CONTROL SHAFT LOWER BUSH, NO.2
33586STOPPER, CONTROL SHIFT LEVER
33587BBUSH, LEVER SELECTING
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711ABUSH (FOR CONTROL SHAFT LEVER)
33711CWASHER, PLATE (FOR CONTROL SHAFT LEVER)
33712LEVER, CONTROL SHAFT
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
9058014002
main90580-14002
9161140816
main91611-40816
9331914008
main93319-14008
9414140800
main94141-40800
9461310800
main94613-10800
9538102020
main95381-02020
33 parts on this diagram · 4 diagrams in section
