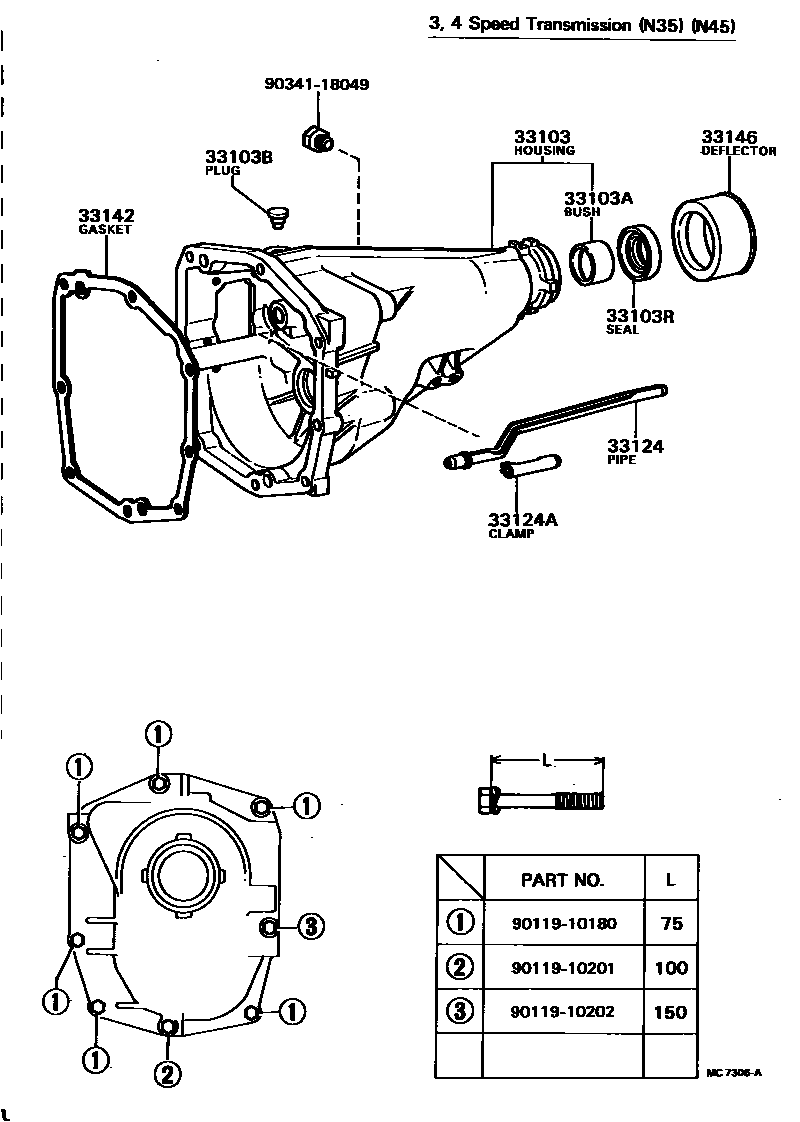

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12120iTT141..4F198503-198508

main33103-14030iTT14#..4F198201-198403

main33103-14031iTT14#..4F198403-198503

main33103-14040iTT14#..5F198201-198403

main33103-14041iTT14#..5F198403-198412

main33103-20100iCT140,RT140198201-198306

main33103-20101iCT140,RT140198306-198312

main33103-22090iCT141,RT142..5F198408-198808

main33103-22091iCT141..5F198808-199110

main33103-22100iCT141,YT140..LHD198612-199208

main33103-30170iTT140..3H198201-198310

main33103-30181iTT140..4H198201-198310

main33103-30200iCT141,YT140199110-199208

main33103-30201iCT141,YT140199208-199907

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iTT14#..4F,5F198201-198403

main90999-72023iTT140..3H,4H198201-198310

main90999-72024iCT141,YT140..LHD198612-199110

main90999-73062iCT140,RT140198201-198312

main90999-73105iCT141,YT140199110-199907

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03080iTT140..3H,4H198201-198310

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iTT14#..4F,5F198201-198508

main90311-38032iCT141,YT140199110-199907

main90311-38040iST141..5F..GEN198609-198612

main90311-38043iCT140,RT140;TT140..3H,4H198201-198312

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iST141..5F..GEN198508-198612

main33106-22020iCT141,YT140..LHD198612-199110

main33106-30030iTT140..4H198201-198310

main33124-30060iTT140..3H198201-198308

main33124-30061iTT140..3H198308-198310

33124ACLAMP(FOR TRANSMISSION OIL RECEIVER PIPE)

main90463-08036iTT140..3H198201-198310

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iTT14#..4F,5F198201-198508

main33142-20020iCT140,RT140198201-198312

main33142-22010iTT140..4H198201-198310

main33142-30050iTT140..3H198201-198310

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iTT14#..4F,5F198201-198508

main33146-30010iCT140,RT140;TT140..3H,4H198201-198312

9011910180

main90119-10180

9011910201

main90119-10201

9011910202

main90119-10202

9034118049

main90341-18049

12 parts on this diagram · 5 diagrams in section
