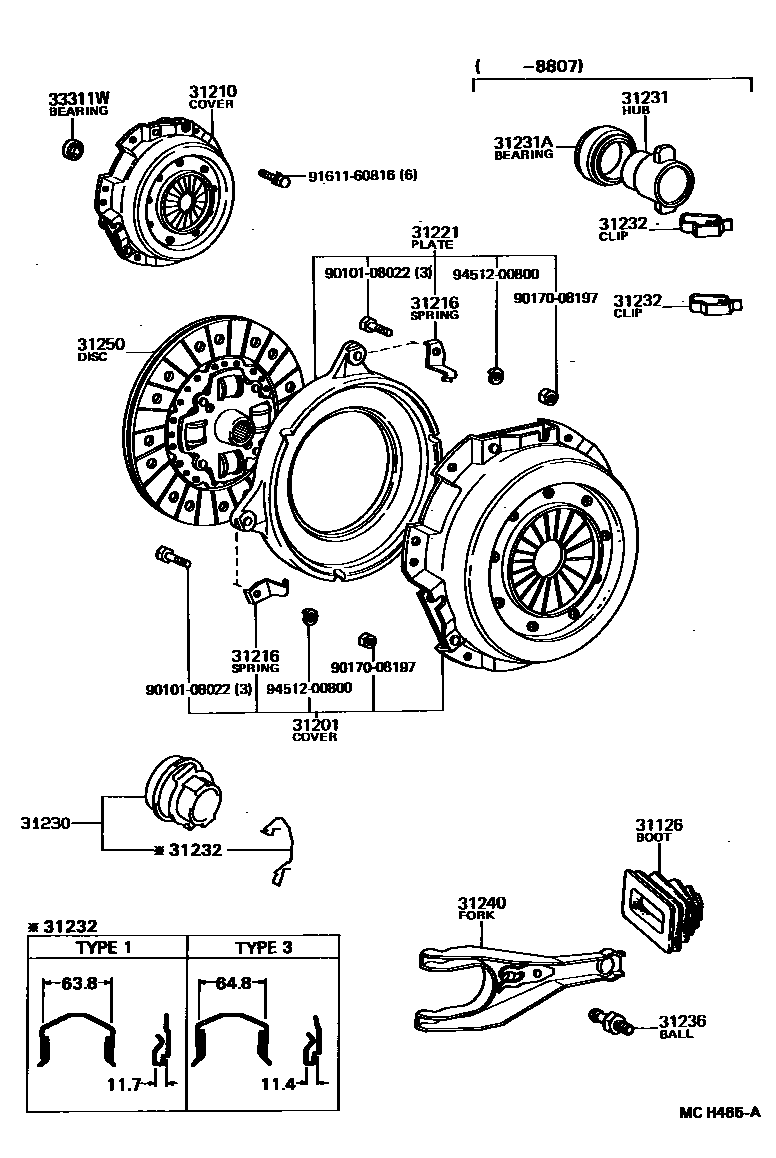

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRT140198206-198312

main31126-20060iRT142..5F198408-198612

main31126-20070iCT14#,ST141,TT14#..MTM..(GEN,ME)198201-199907

31201COVER SUB-ASSY, CLUTCH

main31201-19065iRT140,TT140..4F,5F198201-198412

main31201-19075iTT140..3H,4H198201-198310

main31201-29085iYT140198612-198808

main31201-39047iCT14#198201-199907

31210COVER ASSY, CLUTCH

main31210-14070iTT140..4F,5F198201-198412

main31210-20083iRT140198206-198312

main31210-20270iCT141198908-199907

main31210-23012iTT140..3H,4H198201-198310

main31210-26030iYT140198612-198702

main31210-26070iYT140198702-198808

main31210-30172iCT141198601-198908

main31210-35042iCT140198201-198312

main31210-35080iYT140198808-199907

main31210-36029iST141..5F..GEN198508-198808

31216SPRING, CLUTCH RETRACTING

main31216-20020×3iRT140,TT14#..MTM198201-198508

main31216-30010×3iCT140198201-198312

31221PLATE, CLUTCH PRESSURE

main31221-19015iTT140..4F,5F198201-198412

main31221-19025iRT140,TT141..MTM198201-198508

main31221-29035iYT140198612-198702

main31221-39045iCT140198201-198312

main31221-39115iCT141198601-199907

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iCT141198807-199907

main31230-35090iYT140198807-199907

31231HUB, CLUTCH RELEASE BEARING

main31231-20081iTT14#..4F,5F198201-198508

main31231-20090iCT141,RT142..MTM198408-199907

main31231-30080iRT140,ST141..MTM..(ARL,PHL)198206-199907

main31231-36070iYT140198612-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-198807

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-198807

main31232-30020×2iRT140198206-198312

main31232-35020iCT141,YT140198807-199907

TYPE 1

main31232-35030iCT141199110-199907

TYPE 2

main31232-35040iYT140199110-199907

TYPE 3

31236BALL, RELEASE FORK

main31236-30030iRT140198206-198312

main31236-30060iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRT142..5F198408-198508

main31204-20071iRT142..5F198508-198612

main31204-20080iTT14#..4F,5F198201-198508

main31204-20090iCT140;TT140..3H,4H198201-198312

main31204-25020iRT140198206-198312

main31204-35050iCT141198807-199907

31250DISC ASSY, CLUTCH

main31250-12081iTT141..MTM198201-198508

main31250-14090iTT140..4F,5F198201-198207

main31250-14091iTT140..4F,5F198207-198412

main31250-20110iCT140198201-198203

main31250-20111iCT140198203-198312

main31250-20200iCT141199006-199907

main31250-22091iRT140;TT140..3H,4H198201-198312

main31250-22210iCT141198601-198902

main31250-22211iCT141198902-199006

main31250-28120iYT140199603-199708

main31250-28121iYT140199708-199907

main31250-35062iYT140198601-198812

main31250-35063iYT140198812-199007

main31250-35064iYT140199007-199205

main31250-35065iYT140199205-199603

main31250-60110iST141..5F..GEN198508-198612

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYT140198612-199907

main90363-12003iTT14#..MTM198201-198508

main90363-12004iCT14#,ST141..MTM198201-199907

9010108022

main90101-08022

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 4 diagrams in section
