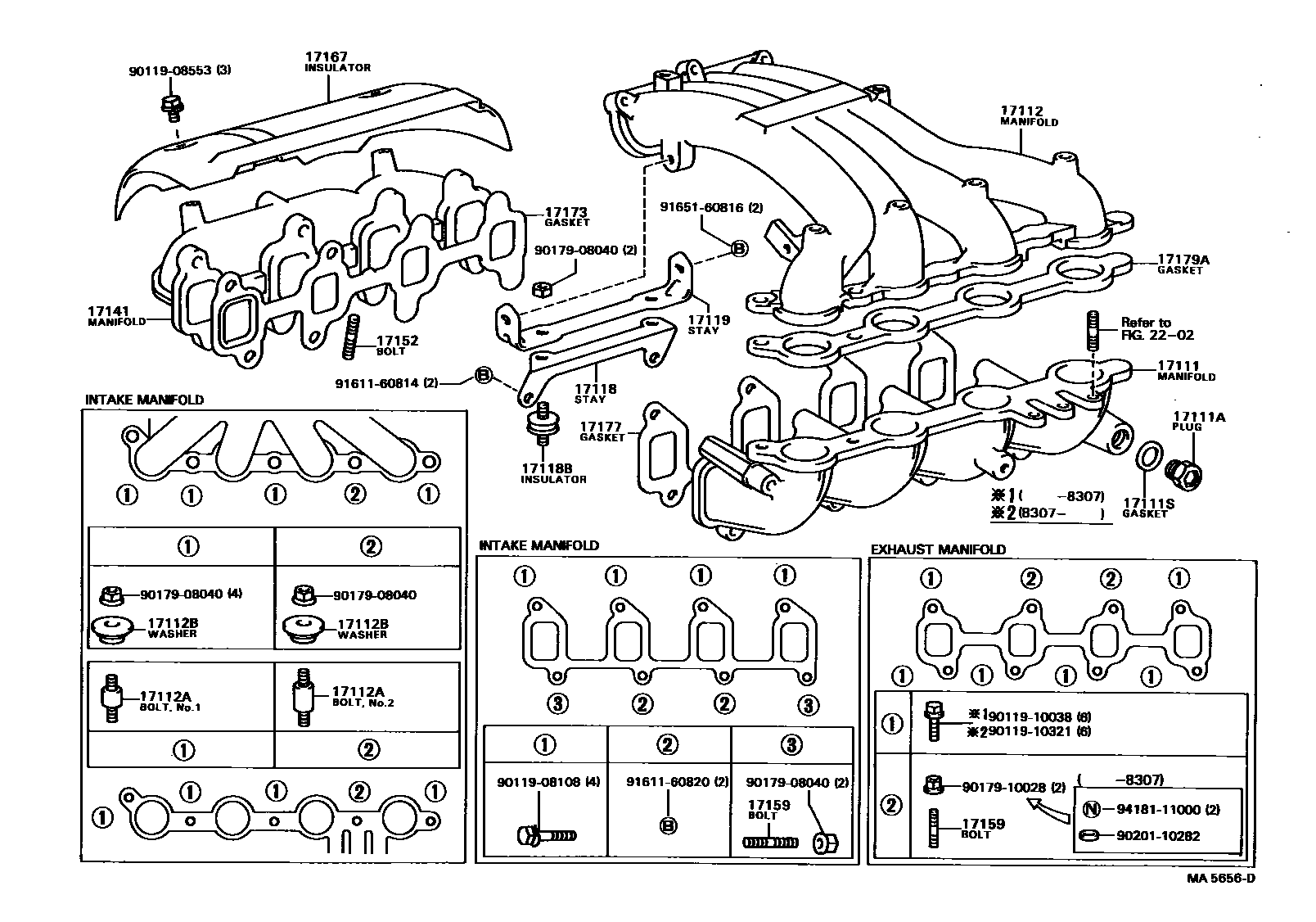

MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
W/HOT AIR INTAKE
17111SGASKET(FOR MANIFOLD PLUG)
17112MANIFOLD, INTAKE, NO.2
17112ABOLT, STUD(FOR INTAKE MANIFOLD NO.2 SET)
NO.1
NO.2
17112BWASHER, SEAL(FOR INTAKE MANIFOLD NO.2 SET)
17118STAY, MANIFOLD
17118BINSULATOR, INTAKE MANIFOLD
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=37,S=20&13
L=43,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD,LWR
EXHAUST MANIFOLD,UPR
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
SURGE TANK TO INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
2202INJECTION PUMP ASSEMBLY
9011908108
main90119-08108
9011908553
main90119-08553
9011910038
main90119-10038
9011910321
main90119-10321
9017908040
main90179-08040
9017910028
main90179-10028
9020110282
main90201-10282
9161160814
main91611-60814
9161160820
main91611-60820
9165160816
main91651-60816
9418111000
main94181-11000
28 parts on this diagram · 7 diagrams in section
